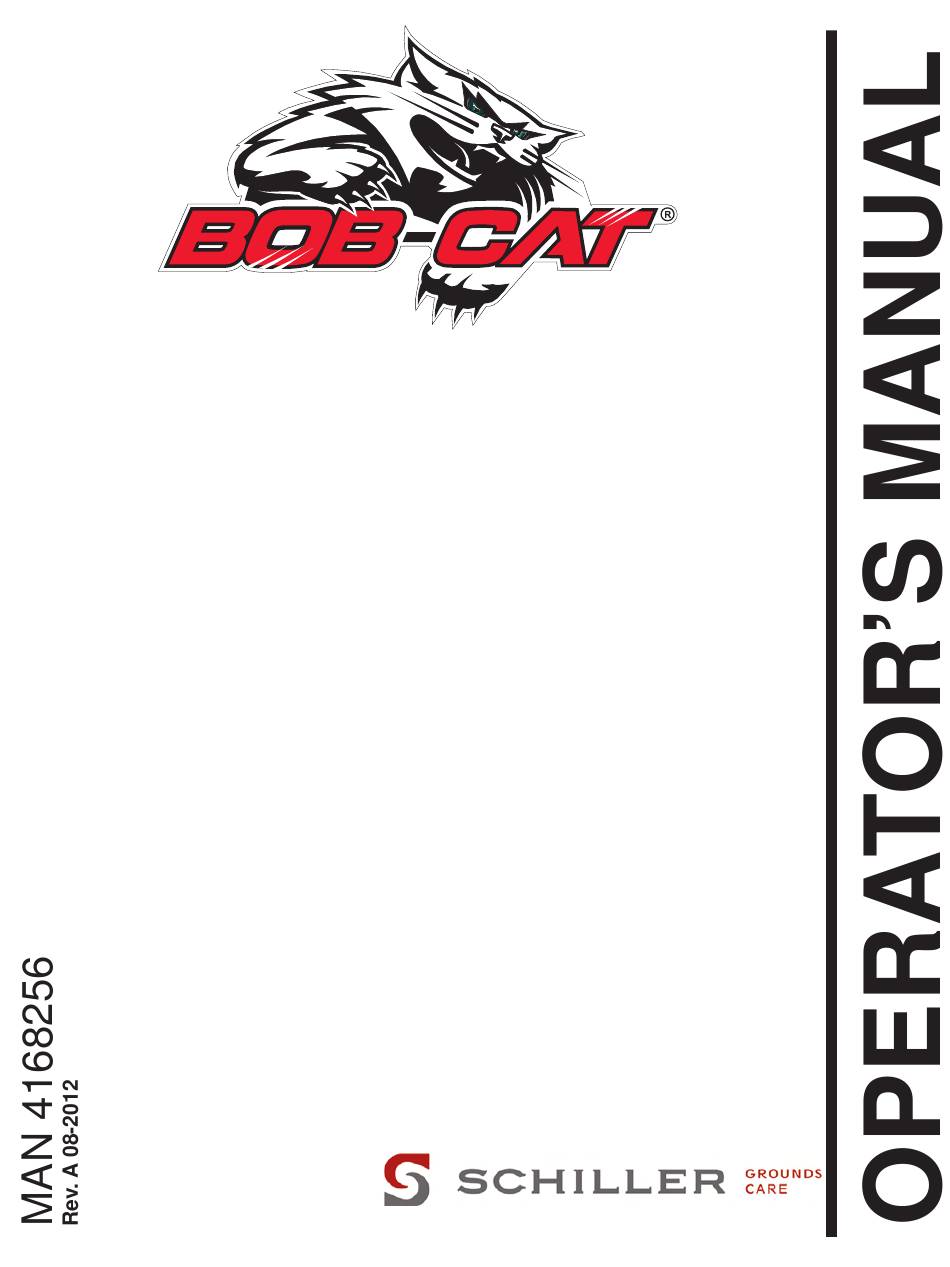

- Page 1 942520J BC PROCAT SE KOHLER CV680 W/52 SIDE DISCHARGE 942521J BC PROCAT SE KOHLER CV740 W/61 SIDE DISCHARGE 942522J BC PROCAT SE KAW FX651V W/52 SIDE DISCHARGE 942523J BC PROCAT SE KAW FX730V W/61 SIDE DISCHARGE PARTS MANUAL 4168255 www.bobcatturf.com...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some of its The engine exhaust from this product constituents are known to the State of contains chemicals known to the State California to cause cancer, birth defects of California to cause cancer, birth and other reproductive harm.
-
Page 3: Table Of Contents
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly. -
Page 4: Safety
Schiller of hazard seriousness. These words appear in this Grounds Care, Inc. Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and... - Page 5 SAFETY PROCAT SE PREPARING FOR SAFE OPERATION WARNING Operator preparation and training Read the Operation & Safety Manual – If an operator or mechanic cannot read English, it is the owner's responsibility to explain this material to them. If any portion of this material is unclear, contact your dealer representative for clarification.
-
Page 6: Machine Operation
SAFETY PROCAT SE MACHINE OPERATION – Check operator present interlock system and Starting brake operation. Adjust or repair any problems – Start only according to instructions in this manual before using. or on the machine. – Do not tamper with or defeat safety devices. –... - Page 7 SAFETY PROCAT SE MOWING SLOPES WARNING Interrupting operation Slopes are a major factor in loss- – Before leaving the operator's position: of-control and tipover accidents - Park on level ground; that sometimes lead to severe - Disengage the PTO; injury or death. All slopes require extra caution.
-
Page 8: Roll Over Protection Structure (Rops)
SAFETY PROCAT SE ROLL OVER PROTECTION STRUCTURE (ROPS) • A folding Rollover Protection Structures (ROPS) A ROPS is a Roll Over Protective Structure. The is attached on this machine. • ROPS reduces the risk of serious or fatal injury If a ROPS is installed and the machine is in the unlikely event of a tip over, although the overturning, hold onto the steering levers. - Page 9 SAFETY PROCAT SE WARNING MAINTENANCE SAFETY FUEL IN GENERAL – Gasoline and diesel fuels are flammable; gasoline vapors are – Maintain machine according to manufacturer's explosive. Use extra care when schedule and instructions for maximum safety handling. and best mowing results. –...
-
Page 10: Storage Safety
SAFETY PROCAT SE BATTERY Jump starting WARNING Battery acid is caustic and fumes 1. Be sure the jumper cables are in good condition. are explosive and can cause seri- Turn off the ignition and all electrical accessories ous injury or death. on both machines. -
Page 11: Labels
LABELS PROCAT SE PTO SWITCH DECK SIZE BELT P/N BLADE P/N 48 IN 4143733 112111-01 52 IN 4165619 112111-02 61 IN 4165618 112111-03 61 IN GENERAC 4165644 112111-03 72 IN 4165645 112111-07 72 IN GENERAC 4165617 112111-07 4165653 LOCATED UNDER THE FLOOR PLATE 4165639 4165189... -
Page 12: Hydraulic Oil
LABELS PROCAT SE BEFORE STARTING OR SERVICING: Read and understand the Operator's Manual & labels. - Be sure machine is in safe operating condition. - Move traction levers to neutral lock, parking brake to ON. - Set PTO switch to OFF. BEFORE LEAVING SEAT: HYDRAULIC OIL - Move traction levers to neutral lock, parking brake to ON. - Page 13 LABELS PROCAT SE 4165655 4165654...
- Page 14 LABELS PROCAT SE WARNING AVOID INJURY OR DEATH FROM ROLL OVER: Keep roll bar in the raised position and use seat belt. THERE IS NO ROLL OVER PROTECTION WHEN THE ROLL BAR IS LOWERED. Lower the roll baronly when necessary and NEVER remove it.
-
Page 15: Controls
CONTROLS PROCAT SE KEYSWITCH (K) - The keyswitch has three positions: OFF, RUN, and START. Insert the key and turn it clockwise to move the switch from OFF to RUN. Turn it further to START and hold to engage the starter. Release the key and the switch will return to RUN from START. - Page 16 CONTROLS PROCAT SE Reverse movement - To move the machine straight back, pull both traction levers back equally from their neutral position. Reverse speed increases as the levers are moved back farther. Maximum reverse speed is reached when the levers hit the rear of the forward-reverse slot.
- Page 17 CONTROLS PROCAT SE FUEL VALVES (U) - A fuel tank selector valve is provided on oil cooler mounting bracket.The fuel tank selector valve has three positions: Off: The tank selector is off when the lever points to- ward the machine. The selector should be off when- ever the machine is transported or stands unused for any length of time.
-
Page 18: Pushing The Machine
CONTROLS PROCAT SE PARKING BRAKE (R) - Pull the parking brake lever up and back to put the parking brake ON. Push it forward and down to put the parking brake OFF. The parking brake must be ON to start the engine. It must also be ON to keep the engine running if the operator leaves the seat. -
Page 19: Pre-Operation Check List
PRE-OPERATION CHECK LIST PROCAT SE PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY) ___ Review and follow all safety rules and safety ___ Never allow riders. decal instructions. ___ Inspect area and remove stones, branches or ___ Check that all safety decals are installed and in other hard objects that might be thrown, good condition. -
Page 20: Operation
OPERATION PROCAT SE FUELING OPERATOR PRESENCE INTERLOCK SYSTEM – Fill fuel tanks with good quality, clean, unleaded gasoline. Do not use hi-test fuel. To start the engine: – Use a funnel to avoid spillage. – The PTO switch must be OFF. –... -
Page 21: Operating Notes
OPERATION PROCAT SE OPERATING NOTES – Practice at slow engine and travel speeds with the PTO off until fully familiar with the controls. – For normal cutting the throttle should be set at the full open position. By using the traction levers to speed up or slow down the machine during use, maximum control and cutting efficiency can be maintained. -
Page 22: Cutting Tips
OPERATION PROCAT SE CUTTING 1. Place the discharge chute in the down position or correctly fit a grass collector or mulcher plate. DANGER 2. Sit in the seat. 3. Start the engine. 4. Turn the blades on by pulling up on the PTO ROTATING BLADES switch. -
Page 23: Maintenance Chart
MAINTENANCE CHART PROCAT SE t l i t l i... -
Page 24: Maintenance Record
MAINTENANCE RECORD PROCAT SE NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ & & r i f , l i t l i... -
Page 25: Check Daily
(A 1/2 second delay is built into the system to prevent engine cutout when traversing rough terrain.) Repair machine before using if the Operator Presence Interlock System does not operate correctly in start or run. Contact your authorized Schiller Grounds Care, Inc. dealer. Hardware Tighten any nuts and bolts found loose. - Page 26 MAINTENANCE PROCAT SE LUBRICATION Every 50 hours of operation, lubricate the following points (1-4) with grease: 1. Deck lift rockshaft (1 point) 2. Deck lift pivots (6 points) 3. Brake lever pivot (1 point) 4. Push arms (2 points located at rear of cutterdeck under each fuel tank) 5.
-
Page 27: Hydraulic System
MAINTENANCE PROCAT SE HYDRAULIC SYSTEM Fluid level in the hydraulic system should be checked after the first 5 hours of operation, and every 100 hours thereafter, or when a leak has occurred. If the fluid is low, check all components for leaks. To check, remove reservoir cap M. -
Page 28: Engine Oil
MAINTENANCE PROCAT SE ENGINE OIL Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged. AFTER FIRST FIVE (5) HOURS While the engine is warm: 1. Release the oil drain hose assembly from the engine clip J. -
Page 29: Engine Cooling
MAINTENANCE PROCAT SE ENGINE COOLING Continued operation with a clogged cooling system will cause severe overheating and can result in en- gine damage. Daily: Clean air intake screen S on air cooled engines. Every 100 hours: Clean cooling fins beneath blower housing H with reference to information in the engine manufacturer's manual. -
Page 30: Cleaning Machine
MAINTENANCE PROCAT SE CLEANING MACHINE Clean the machine after use. The machine will run cooler and last longer if kept free of clippings and other debris. A clean machine also reduces the risk of fire due to accumulation of combustible debris and chaff Brush or blow clippings and debris off the cutterdeck and engine deck. - Page 31 – Maintain cut angle at 30 – Do not overheat blades when sharpening. – Always use Schiller Grounds Care, Inc. blades. Use of another manufacturer’s blades may be dangerous. SPECIFIC TORQUES BLADE BOLT TORQUE: 70 FT-LBS (95 Nm) WHEEL HUB NUTS: 175 FT-LBS (237 Nm)
-
Page 32: Adjustments
ADJUSTMENTS PROCAT SE DECK LEVELING FORWARD PITCH SHOWN a) Park the machine on a smooth, level surface. Raise the deck to the transport position. b) Lower the deck onto a pair of equal height blocks A under the rear corners of the deck. Place another pair of adjustable blocks B under the front of the deck so that the deck top is pitched forward 1/8”. -
Page 33: Height Of Cut
ADJUSTMENTS PROCAT SE HEIGHT OF CUT The height of cut is set by moving height of cut pin C to the hole designated for the height of cut desired. To change the height of cut: 1. Lift the deck to the highest position Using the foot lift pedal. -
Page 34: Control Levers
ADJUSTMENTS PROCAT SE CONTROL LEVERS There are two mounting positions for the control levers, upper and lower. The lower position works well for most people. Taller operators may need the upper position. To adjust the height of the control levers: –... - Page 35 ADJUSTMENTS PROCAT SE HYDROSTAT ADJUSTMENTS A turnbuckle-style hydrostat neutral adjustment is provided. Neutral: 1. Support the machine with the rear wheels off the ground. Use jackstands or equivalent sup- port. Do not rely only on mechanical or hydraulic jacks. 2. Move the traction levers out into the neutral lock position and raise the seat.
- Page 36 4. Remove belt from clutch pulley. 5. Install the new belt by performing these steps in reverse order. Note: Always use Schiller Grounds Care, Inc. re- placement belts, not general purpose belts. Schiller Grounds Care, Inc. belts are specially designed for use on commercial mowers and will normally last longer.
-
Page 37: Pump-Drive Belt
BELT REPLACEMENT PROCAT SE PUMP-DRIVE BELT 1. Remove engine-cutterdeck belt (see engine-cutterdeck belt replacement). 2. Attach an extension to a 3/8" drive ratchet. Insert the ratchet extension in the square hole of the pump drive idler arm. Use the ratchet handle to rotate it enough to remove the pump drive belt. 3. - Page 38 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...
