U-Line ADJUSTABLE OPEN WIRE SHELVING Manual

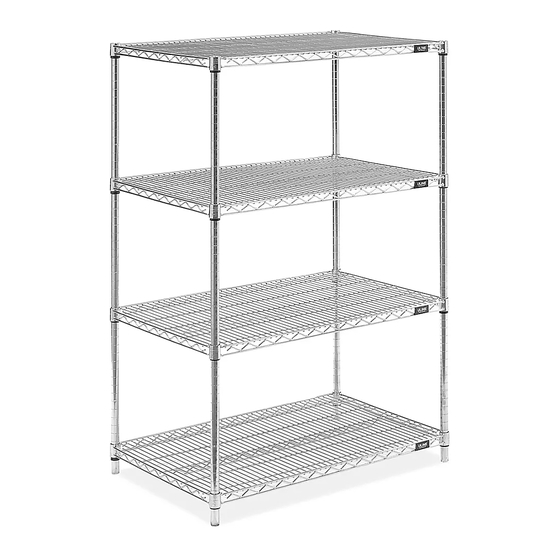

ADJUSTABLE OPEN WIRE SHELVING

1-800-295-5510

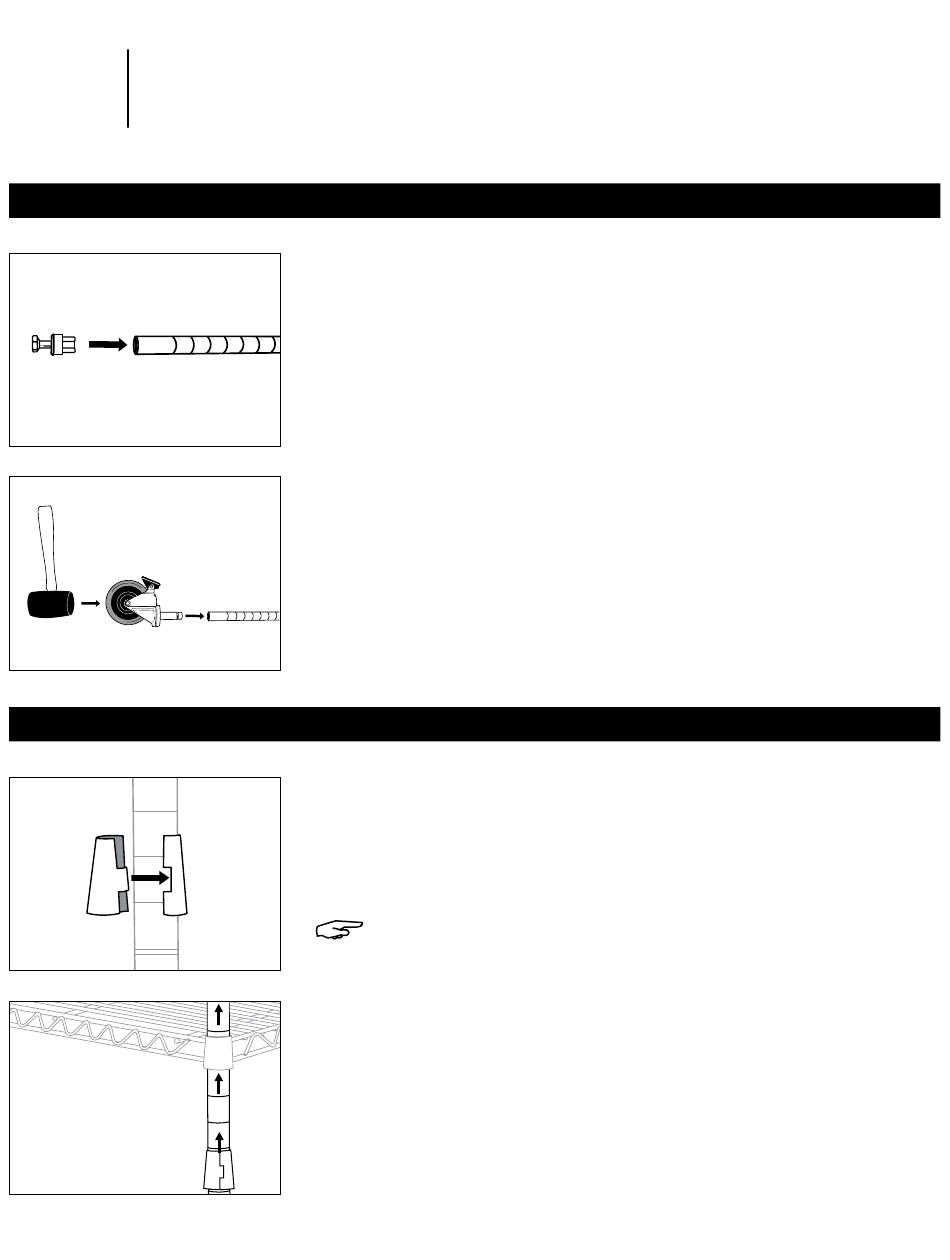

INSTALLATION OF SELF-LEVELERS AND OPTIONAL CASTERS

Figure 1

Figure 2

Figure 3

Figure 4

PAGE 1 OF 2

uline.com

TO INSTALL SELF-LEVELERS

Make sure post is positioned as shown. (See Figure 1)

2. Insert self-leveler into open end of post.

3. Tap on ground until self-leveler slides into post.

4. Repeat steps 2 and 3 for other posts.

TO INSTALL OPTIONAL CASTERS

Make sure post is positioned as shown. (See Figure 2)

2. Engage the wheel brakes to keep casters from rolling during

assembly. Use a rubber mallet to tap caster stems into posts.

(See Figure 2)

Start with the lowest shelf. Snap the interlocking pieces of a

shelf support (wide end down) around the post at the lowest

groove where shelf is to be located. Slide the support up or

down until it snaps onto the groove. Add a shelf support to the

same place on the remaining posts. (See Figure 3)

NOTE: NSF requires food service applications to keep the

lowest shelf at least 6" above the floor.

2. Slide post through underside of shelf until shelf slides firmly

over supports (See Figure 4)

0712 IH-1205

Table of Contents

Do you have a question about the ADJUSTABLE OPEN WIRE SHELVING and is the answer not in the manual?

Page 1 ADJUSTABLE OPEN WIRE SHELVING π 1-800-295-5510 uline.com INSTALLATION OF SELF-LEVELERS AND OPTIONAL CASTERS TO INSTALL SELF-LEVELERS Make sure post is positioned as shown. (See Figure 1) 2. Insert self-leveler into open end of post. 3. Tap on ground until self-leveler slides into post.
Page 2 INSTRUCTIONS FOR UNIT ASSEMBLY (CONTINUED) 3. Stand unit upright. Gently tap shelf down to secure it. (See Figure 5) Figure 5 4. Determine the height of the next shelf, snap on supports then add and secure shelf. Repeat Step 4 to add the remaining shelves.
