Summary of Contents for HIKVISION DS-3E0524-E
- Page 1 16/24-Port Gigabit Ethernet Switch Quick Start Guide 16/24-Port Gigabit Ethernet Switch Quick Start Guide...
-
Page 2: Table Of Contents
16/24-Port Gigabit Ethernet Switch Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ................................... 1 1.1 Overview ....................................1 1.2 Packing List ....................................1 1.3 Appearance ....................................2 1.3.1 Front Panel ..................................2 1.3.2 Rear Panel ..................................3 Chapter 2 Installation..................................4 2.1 Preventive and Cautionary Tips ..............................4 2.2 Working Environment Requirements ............................4 2.2.1 Temperature and Humidity .............................4 2.2.2 Static Electricity Protection .............................4... - Page 3 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 4 16/24-Port Gigabit Ethernet Switch Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 16/24-Port Gigabit Ethernet Switch Quick Start Guide Applicable Models This manual is applicable to DS-3E0516 and DS-3E0524 series gigabit Ethernet switch. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
-
Page 6: Chapter 1 Introduction
16/24-Port Gigabit Ethernet Switch Quick Start Guide Chapter 1 Introduction 1.1 Overview DS-3E0516 and DS-3E0524 series unmanaged switches are layer 2 gigabit Ethernet switches, providing 16/24 10/100/1000M Ethernet ports to upload data via convergence switches. DS-3E0516 and DS-3E0524 series switches are reliable, easy to install and maintain, and equipped with rapid switch function. -
Page 7: Appearance

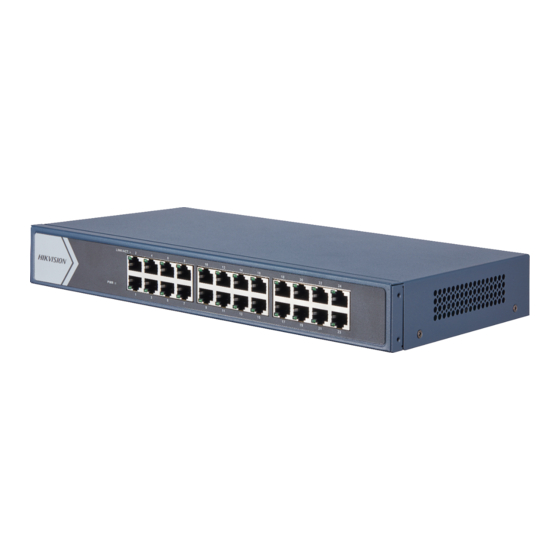

16/24-Port Gigabit Ethernet Switch Quick Start Guide 1.3 Appearance 1.3.1 Front Panel Front panels of DS-3E0516 and DS-3E0524 are shown as below. Front Panel of DS-3E0516 Figure 1-1 DS-3E0516 Front Panel Front Panel of DS-3E0524 Figure 1-2 DS-3E0524 Front Panel RJ45 Ports 1000M Ethernet ports are used for devices connection via network cables. -
Page 8: Rear Panel
16/24-Port Gigabit Ethernet Switch Quick Start Guide 1.3.2 Rear Panel Rear panel of DS-3E0516 and DS-3E0524 is shown as below. Rear Panel of DS-3E0516 and DS-3E0524 Figure 1-3 DS-3E0516 and DS-3E0524 Rear Panel Grounding Terminal The grounding terminal is used to connect to the ground cable to protect the switch from lightning. For details about grounding, see section Grounding. -
Page 9: Chapter 2 Installation
16/24-Port Gigabit Ethernet Switch Quick Start Guide Chapter 2 Installation 2.1 Preventive and Cautionary Tips Before installation, put on anti-static gloves. During the installation, power off your switch. Use the attached power adapter or power cord to connect the switch to power supply. ... -
Page 10: Lightning Protection
16/24-Port Gigabit Ethernet Switch Quick Start Guide 2.2.3 Lightning Protection In thunderstorm weather, a sudden strong current may damage the switch. To protect your switch from lightning strike or strong current, please: Make sure the switch, rack, installation desktop, and power socket on the wall all are well-grounded. -
Page 11: Grounding
16/24-Port Gigabit Ethernet Switch Quick Start Guide Figure 2-2 Fix Switch to Rack Do not place any heavy object on the switch in case of any incident. Make sure sound cooling and ventilation. 2.4 Grounding Purpose: Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. -
Page 12: Without Grounding Bar
16/24-Port Gigabit Ethernet Switch Quick Start Guide Figure 2-3 Grounding with Grounding Bar Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning rod. 2.4.2 Without Grounding Bar If there is no grounding bar but earth is nearby and the grounding body is allowed to be buried, follow the steps below. - Page 13 16/24-Port Gigabit Ethernet Switch Quick Start Guide Figure 2-4 Grounding with Angle Steel If the conditions for burying the grounding body are not available, an AC-powered Ethernet switch can be grounded using the PE (Protective Earth) wire of the AC power supply. The precondition is that the power cord of the switch should adopt 3-pin cable with protective earth wire, and the AC power supply protective earth wire has been well grounded on the side of distribution room or AC power supply transformer.
-
Page 14: Chapter 3 Physical Connection
16/24-Port Gigabit Ethernet Switch Quick Start Guide Chapter 3 Physical Connection 3.1 Connecting RJ45 Port Use a network cable to connect your switch to the RJ45 port of an opposite end device. The RJ45 port can connect with network camera, IP camera, NVR, switch, etc. Figure 3-1 RJ45 Port Connection 3.2 Checking the Cabling Before powering on your switch, make sure that:... -
Page 15: Powering On Switch
16/24-Port Gigabit Ethernet Switch Quick Start Guide Figure 3-2 Lightning Rod Connection 3.3 Powering on Switch Please use the attached power cord to provide power to the switch. - Page 16 16/24-Port Gigabit Ethernet Switch Quick Start Guide UD11866B...
