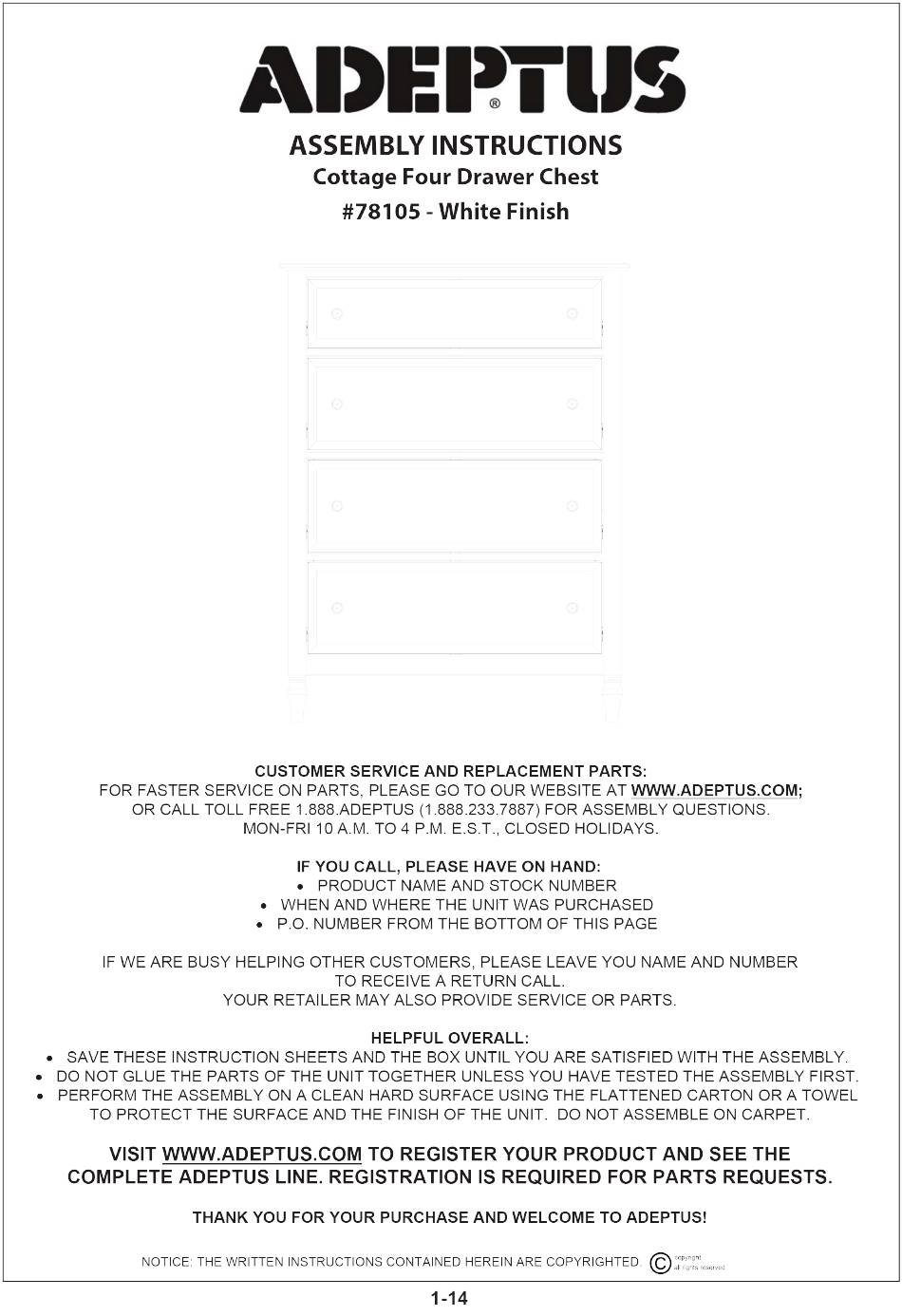

adeptus 78105 Assembly Instructions Manual

Cottage four drawer chest, white finish
Hide thumbs Also See for 78105:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 78105 and is the answer not in the manual?

Questions and answers

Related Manuals for adeptus 78105

Summary of Contents for adeptus 78105

  • Page 2 This is a SOLID WOOD product: We inspect all wood and follow quality assurance guidelines that pass third-party inspections. Note: Real wood has knots, small cracks, and what may look like blemishes. These characteristics are expected when producing furniture from natural material. We take extra care with our drawer parts: 1.
  • Page 3 Perform assembly on a clean, hard surface using the flattened box or a towel to protect the surface & the unit's finish. DO NOT assemble on carpet. Carpet creates too much bounce making assembly difficult and could lead to damage of the parts. DO NOT FORCE OR OVER-TIGHTEN THE SCREWS.
  • Page 4 Parts List Description Left Facing Side Panel Right Facing Side Panel Bottom Crossbars Back Panels Drawer Back Drawer Crossbars Drawer Bottoms Small Drawer Front Drawer Front Left Drawer Right Drawer Side B=56 A=52 C=02 E=04 F=04 G=08 + 2 xtra D=33 16 x 5 4 x 30...
  • Page 5 A=44 PREPARE PARTS BY INSERTING DOWELS 8 x 30 Dowel PREPARE THE PARTS FOR ASSEMBLY BY INSERTING DOWELS (PART A) AS FOLLOWS: • Insert 2 dowels (part A) into the top of each side panel (parts 02 & 03). • Insert 2 dowels (part A) into both ends of each bottom crossbar (part 04). •...
  • Page 6 L=01 D=01 C=01 ATTACH ANTI-TIP SAFETY STRAP 150 mm 16 x 5 Anti-tip safety Washer Screw Strap Make certain the SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR screw is in front FROM FURNITURE TIP-OVER. TO AVOID TIP-OVER: of the cut-out for •...

  • Page 7: Right Panel

    ATTACH RIGHT DRAWER RUNNERS (300D) TO THE RIGHT FACING SIDE PANEL H=08 F=04 6 x 10 Right Drawer Runner Screw NOTE: The end of the right drawer runners ( D) (part F) with the wheel should be on the front side of the right side panel (part 03).

  • Page 8: Left Panel

    ATTACH THE LEFT FACING SIDE PANEL TO CROSSBARS B=06 4 x 30 Left Panel Screw NOTE: Do not attempt this step with the unit upright. It should be flat on its front side on a hard, clean surface. Right Panel •...
  • Page 9 ATTACH BACK PANEL NOTE: Make sure to pull the Safety Strap (part L), through before attaching the back panels (part 08). Before attaching the back panel, make sure the unit is assembled squarely. Use an "L" Square tool, if necessary, as shown.
  • Page 10 ASSEMBLE THE LARGE DRAWERS (3X) F=03 D=18 B=30 E=03 G=06 4 x 30 3.5 x 14 Right Left Drawer Drawer Screw Knob Runner Runner Screw STEP 13 - A • Using the dowels (part A) inserted into parts 11 and 12 in step 1, align the drawer sides (parts 11 &...
  • Page 11 ASSEMBLE THE SMALL DRAWER B=10 D=06 G=02 E=01 F=01 4 x 30 3.5 x 14 Right Left Drawer Drawer Screw Runner Runner Knob Screw STEP 14 - A • Using the dowels (part A) inserted into parts 11 and 12 in step 1, align the drawer sides (parts 11 &...
  • Page 12 ANCHOR THE UNIT TO A WALL B=01 C=01 N=01 4 x 30 16 x 5 Screw Washer Anti-tip Wall Anchor SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. TO AVOID TIP-OVER: • PLACE HEAVIEST ITEMS IN THE LOWEST DRAWERS.
  • Page 13 INSTALL THE DRAWERS X4 • Tilt the back of each drawer upward to get it past the wheels on the drawer runners. • Once clear of the wheels, you can level If you will store more than 10 lbs in any one the drawers and slide them in.

  • Page 14: Completed Assembly

    ADJUST DRAWER ALIGNMENT After completed assembly, it is necessary to adjust the drawer alignment to get the drawers perfectly square. To adjust the drawer front position: • Loosen the screw (part H) you used to install the drawer runner (either parts E or F) in steps 6 or 7, to the side panel (parts 02 or 03), depending on the side (left or right), as shown.
