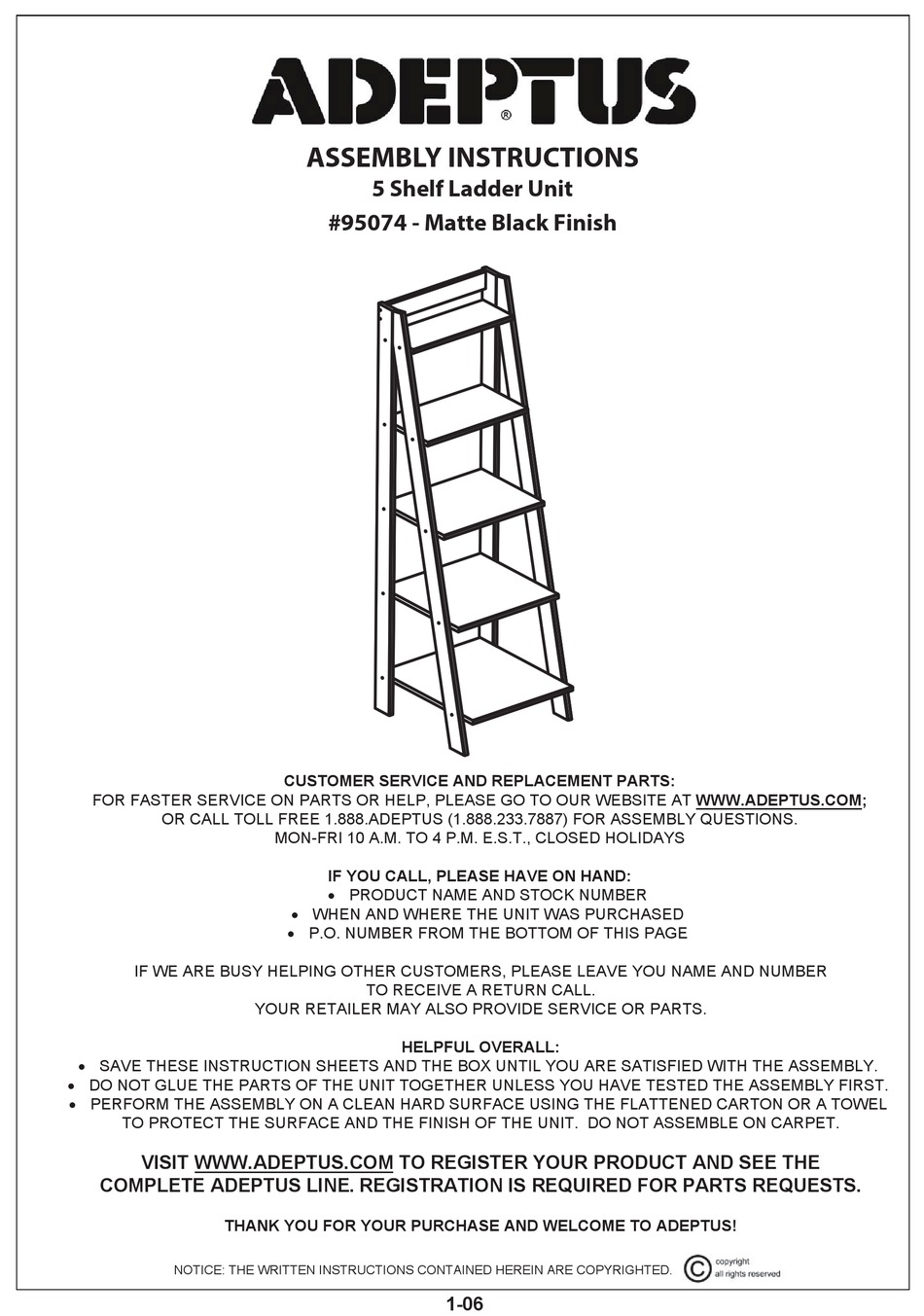

- Page 1 ASSEMBLY INSTRUCTIONS 5 Shelf Ladder Unit #95074 - Matte Black Finish CONTAINED...
- Page 2 2-06 NOTICE: CONTAINED...
- Page 3 Parts List Description Shelf 1 Shelf 2 Shelf 3 Shelf 4 Shelf 5 Back Legs Front Legs Crossbar These tools are not supplied by the manufacturer. x 24 4 x 40 mm 4 x 60 mm DO NOT FORCE OR OVER-TIGHTEN THE SCREWS.
- Page 4 STEP 1 ATTACH EACH SHELF TO THE LEFT REAR LEG. 4 x 40 mm BE AWARE OF THE PROPER SHELF POSITION. SEE DIAGRAM BELOW. STEP 2 ATTACH THE LEFT FRONT LEG TO EACH SHELF. ATTACH FEET TO LEGS B x 5 4 x 40 mm Attach the 4 feet (part O) to the 4 legs (2 of part 06 and 2 of part 07) C=04...
- Page 5 STEP 3 ATTACH THE RIGHT SIDE LEGS TO EACH SHELF. x 10 4 x 40 mm STEP 4 ATTACH THE TOP CROSSBAR. ATTACH FEET TO LEGS B x 4 4 x 40 mm Attach the 4 feet (part O) to the 4 legs (2 of part 06 and 2 of part 07) C=04 by screwing the foot (part O) into the bottom of each leg (parts 06 &...
- Page 6 A x 4 4 x 60 mm ____________________________________________________________________________________________________ COMPLETED ASSEMBLY! THANK YOU FOR YOUR PURCHASE, AND WELCOME TO ADEPTUS! USE AND CARE INSTRUCTIONS: CARE INSTRUCTIONS: • NORMAL USE: WIPE WITH A CLEAN CLOTH. • OR WHEN NEEDED TO CLEAN SCUFFS: WIPE CLEAN WITH A SLIGHTLY DAMP CLOTH AND A MILD CLEANER.
