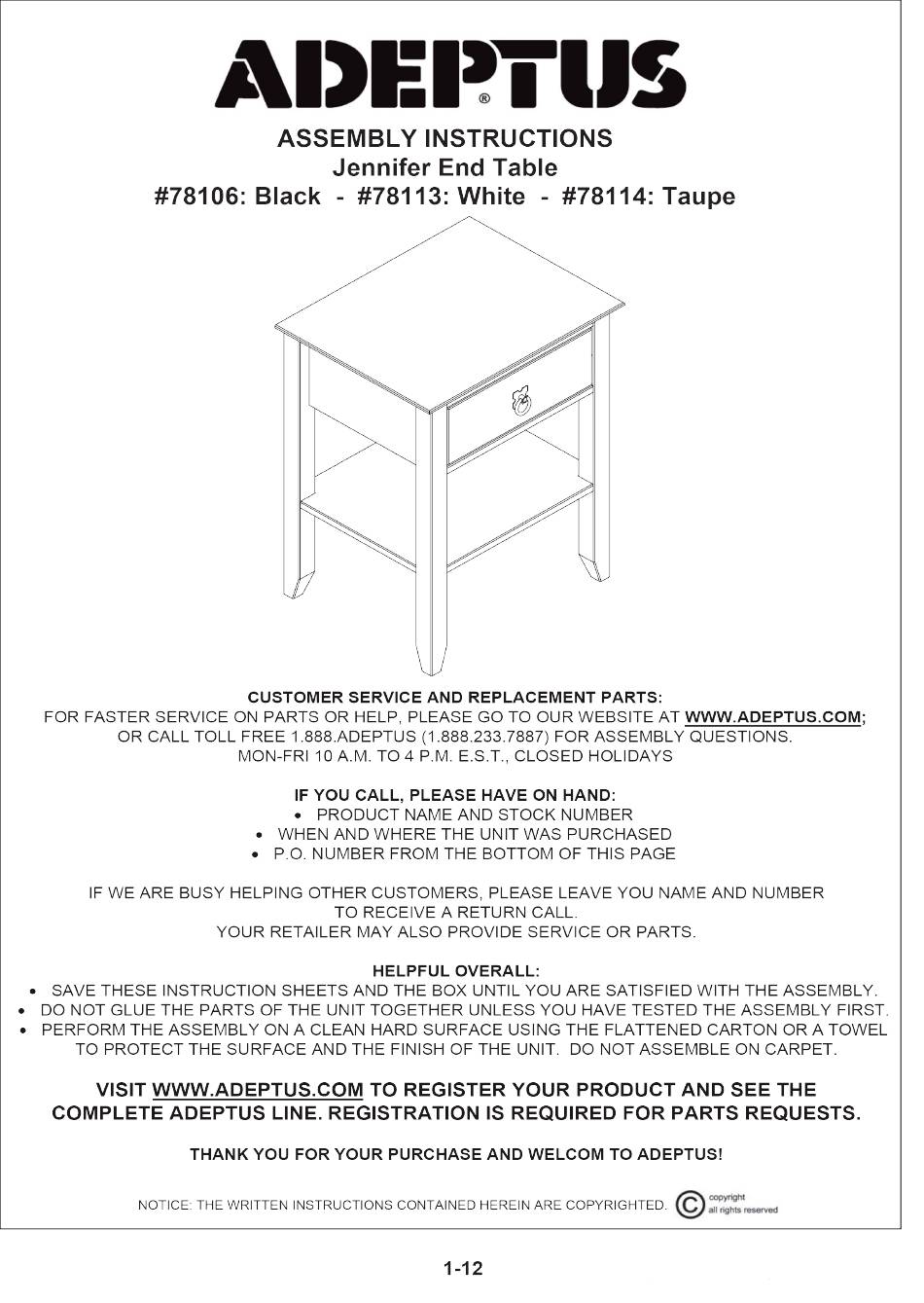

- Page 2 CONTAINED 2-12...
- Page 3 PLEASE NOTE: Safety and Care Advice · Check you have all the components and tools listed on pages 3 & 4. · Remove all fittings from the plastic bags and separate them into their groups. · Keep children and animals away from the work area, small parts could choke if swallowed. ·...
- Page 4 BLUE YELLOW GREEN D=04 E=01 3,0 x 25mm 3,5 x 30mm 6,0 x 10mm 8,0 x 30mm F=08 G=01 H=01 I=01 Left Set Right Set 3,0 x 16mm M4 x 20mm NOTICE: CONTAINED 4-12...
- Page 5 GREEN YELLOW BLUE (PART A), AS SHOWN, INTO THE SIDE, A=32 BACK PANELS, CROSSBARS AND LEGS. 8,0 x 30mm ATTACH THE DRAWER RUNNER TO THE RIGHT SIDE PANEL. USE CARE TO ENSURE THE SCREWS ARE INSERTED THROUGH THE CORRECT HOLES IN THE RUNNER. SEE THE ENLARGED DIAGRAM ABOVE.
- Page 6 ATTACH THE DRAWER RUNNER TO THE LEFT SIDE PANEL. USE CARE TO ENSURE THE SCREWS ARE INSERTED THROUGH THE CORRECT HOLES IN THE RUNNER. SEE THE ENLARGED DIAGRAM ABOVE. DO NOT FORCE OR OVER- TIGHTEN THE SCREWS. THIS D=02 G=01 COULD DAMAGE THE PANEL.
- Page 7 ATTACH THE THE RIGHT AND LEFT SIDE PANELS TO THE RIGHT AND LEFT REAR LEGS. PRE- DRILLED "POCKET HOLE" DO NOT FORCE OR OVER- TIGHTEN THE SCREWS. THIS COULD DAMAGE THE PANELS AND/OR LEGS. C=04 3,5 x 30mm ATTACH THE SHELF TO THE DO NOT FORCE OR RIGHT AND LEFT REAR LEGS.
- Page 8 DO NOT FORCE OR ATTACH THE LEFT FRONT OVER-TIGHTEN LEG TO THE LEFT SIDE THE SCREWS. PANEL AND THE SHELF. GREEN PRE- DRILLED "POCKET HOLE" C=03 3,5 x 30mm ATTACH THE TOP AND BOTTOM CROSSBARS TO THE RIGHT AND LEFT SIDE PANELS. PRE- DRILLED "POCKET...
- Page 9 ATTACH THE RIGHT FRONT LEG TO THE RIGHT SIDE PANEL AND THE SHELF. PRE- DRILLED "POCKET HOLE" DO NOT FORCE OR C=03 OVER-TIGHTEN THE SCREWS. 3,5 x 30mm ATTACH THE TOP TO THE PRE- RIGHT SIDE, LEFT SIDE DRILLED "POCKET AND BACK PANELS.
- Page 10 ASSEMBLE THE DRAWER BOX Helpful Tip To help assemble the drawer ''square'', use the drawer back #13 to stabilize the sides. Pull out after sides are attached, and slide in the drawer bottom. ATTACH THE T THE PRE- DRILLED "POCKET IMPORTANT! MAKE CERTAIN THE GROOVES FOR HOLE"...
- Page 11 ATTACH THE RIGHT AND LEFT DRAWER RUNNERS. ENSURE THE SCREWS ARE INSERTED TIP: To make this step easier, place the drawer upside down on a counter with the drawer front THROUGH THE CORRECT HOLES IN hanging off the edge. This will allow the drawer THE RUNNER.
- Page 12 COMPLETED ASSEMBLY: THANK YOU FOR YOUR PURCHASE, AND WELCOME TO ADEPTUS! USE AND CARE INSTRUCTIONS: CARE INSTRUCTIONS: • NORMAL USE: WIPE WITH A CLEAN CLOTH. • OR WHEN NEEDED TO CLEAN SCUFFS: WIPE CLEAN WITH A SLIGHTLY DAMP CLOTH AND A MILD CLEANER.
