Installation -

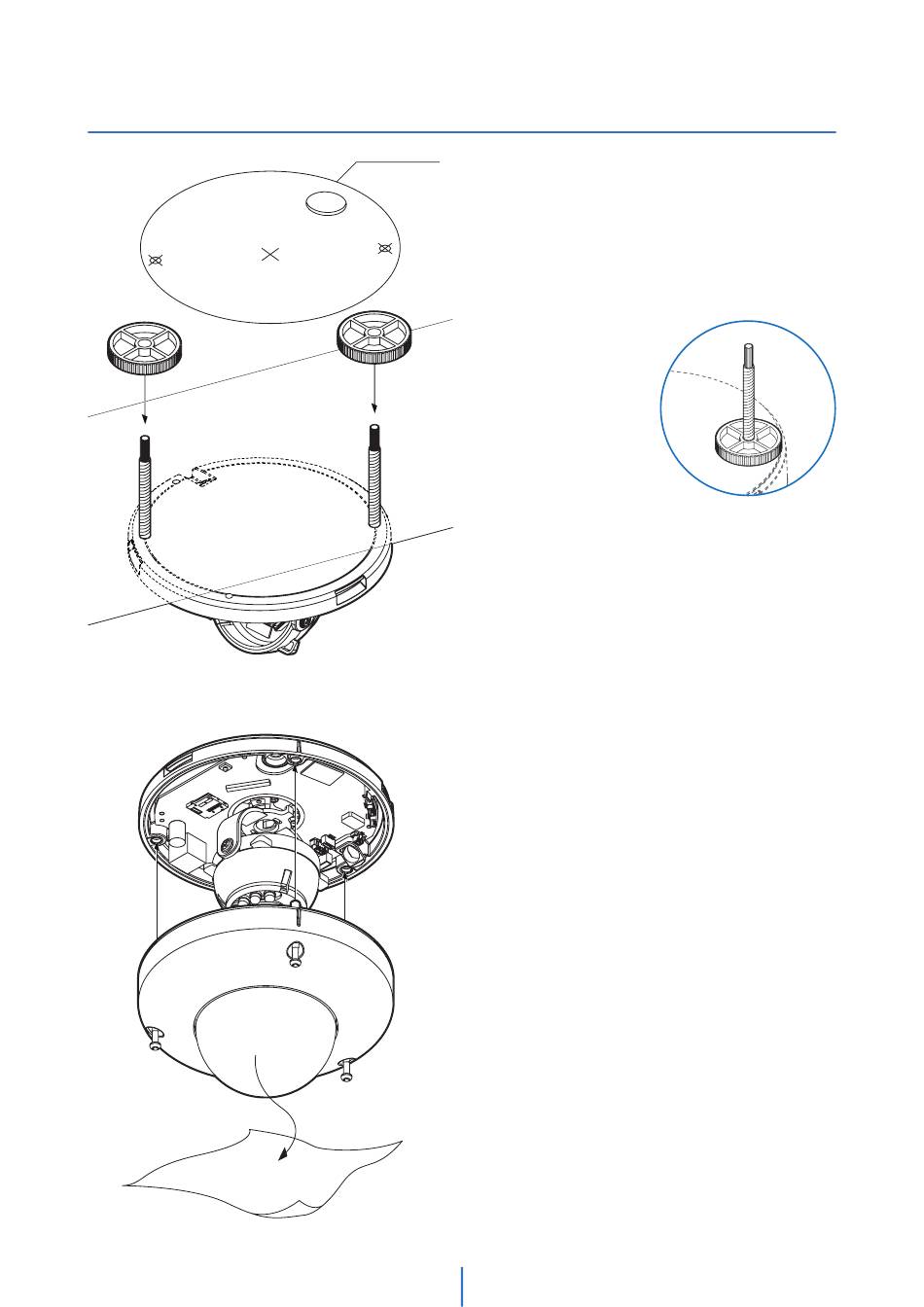

Mounting Bolts and Nuts Installation
Template Sheet
1. Using the mounting template for the nuts and
bolts installation, mark and drill the necessary
holes in the wall or ceiling.
2. Pass the wires through and make all necessary
connections. See page 12 for more information.
3. Secure the two long mounting screws to the
camera's base.
4. Mount the camera to the
mounting surface using
the 2 mounting nuts.
5. Rotate the locking
discs over the screws
until the camera is
held tightly from the
mounting surface.
6. Remove the rubber
stopper and mount the
camera base to the mounting surface using
the included mounting screws.
7. Adjust the camera module's position by using
its 3-axis gimbal. The camera can:
•
•
•
8. Match the case outline when reassembling the
cover and come case.
10
Rotate: 360°
Pan: 360°
Tilt: 70°
