OBSIDIAN CONTROL SYSTEMS NETRON RDM10 User Manual page 19

M E N U : V I E W A N D T E S T ( c o n t i n u e d )
M o n i t o r ( D M X V i e w , A r t - N e t V i e w , s A C N V i e w )
The monitoring options are helpful to find faults, or simply watch incoming traffic. Three styles
are available by clicking the encoder wheel. Dial the wheel to change the display to the desired
address, and exit the monitor with the back button.

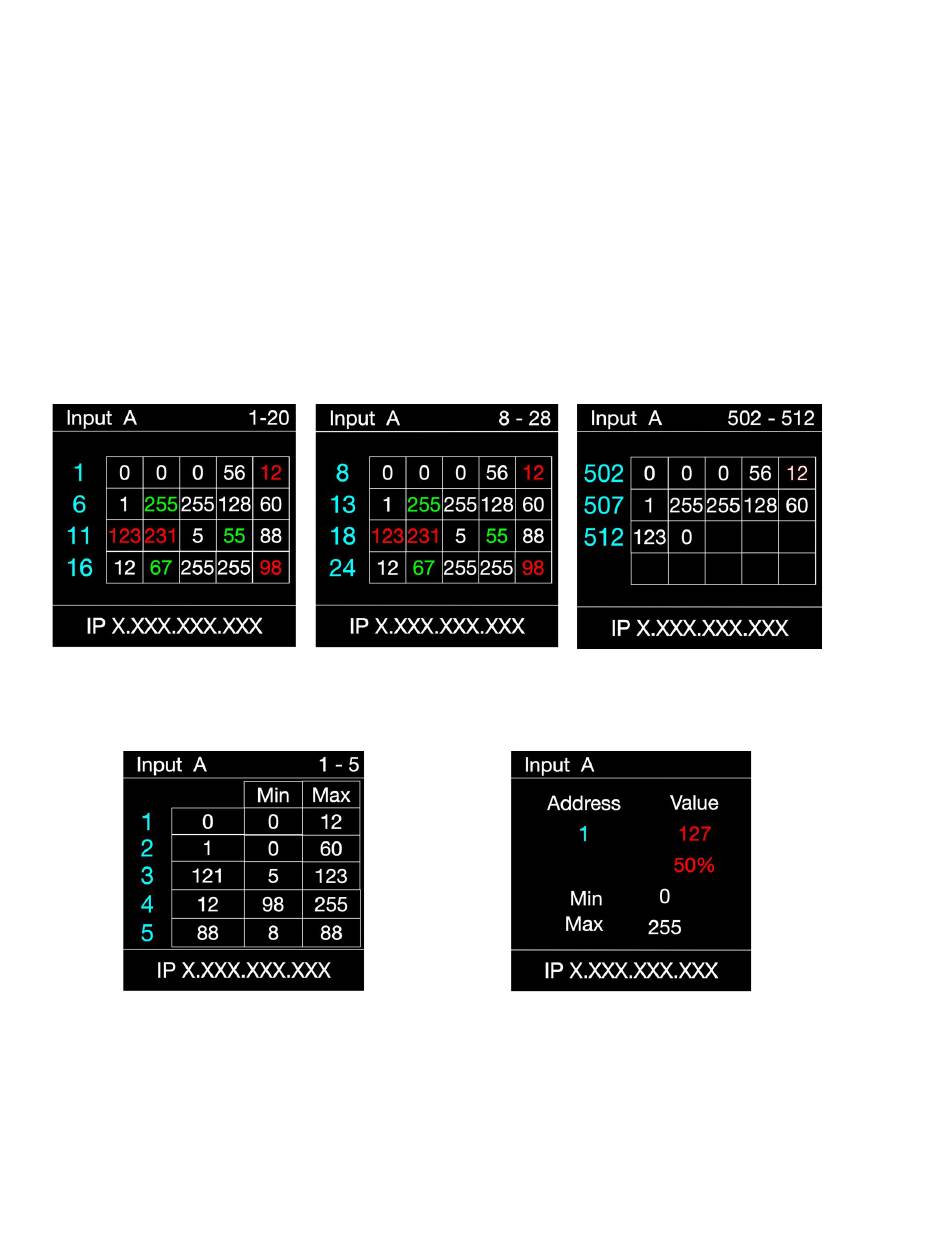

D M X T e s t D i s p l a y – G r i d
The color coding helps to quickly identify changing DMX values.
Cyan: DMX Address
Green: Value Decreased
Red: Value Increased
White: Value stable (after 10 seconds)
D M X T e s t D i s p l a y – D M X T e s t D i s p l a y –
L i n e A d d r e s s
19
