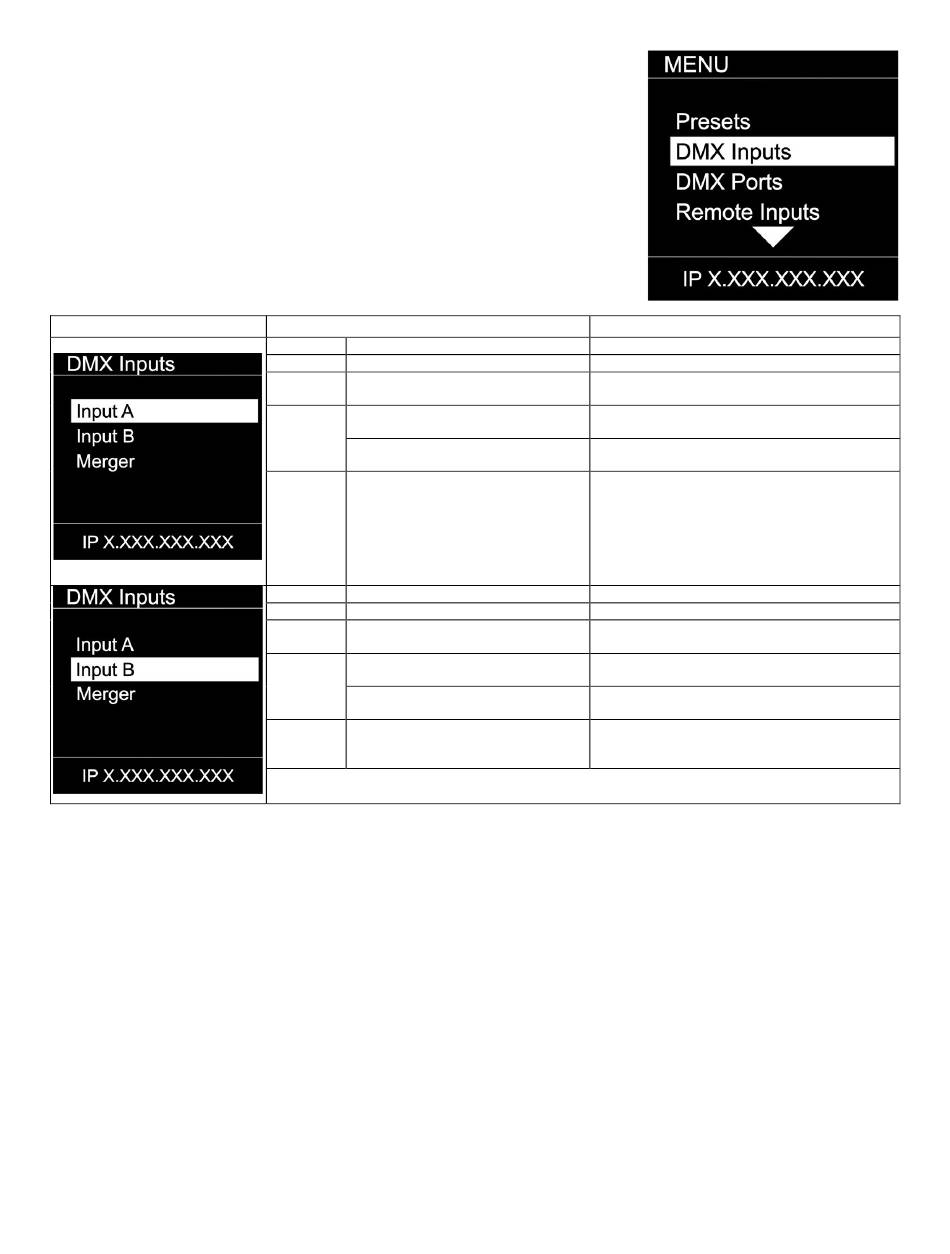

MENU: DMX INPUTS – A & B
The RDM10 processes two DMX Inputs. The source can either
be the DMX ports on the unit, or a network Universe via the
RJ45 ports. For a network source, two Universes can be
merged into the Input.
SUB MENU OPTIONS / VALUES
Source DMX, Network, SendValue
RDM Disable, Enable
10Hz, 15Hz, 20Hz, 25Hz, 30Hz, 35Hz,
FrameRate
40Hz
From: 1 – 512
Range
To: 1 – 512
Offset Addr OFF, 2-512
Source DMX, Network, SendValue
RDM Disable, Enable
10Hz, 15Hz, 20Hz, 25Hz, 30Hz, 35Hz,
FrameRate
40Hz
From: 1 – 512
Range
To: 1 – 512
Offset Addr OFF, 2-512
DESCRIPTION
Select the source protocol
Disable / Enable RDM traffic for this port
Select the desired frame rate
To limit the DMX range, set the first address of the
DMX port
To limit the DMX range, set the last address of the
DMX port
Offset start address, incoming channel X value is
sent on this port as channel X+Offset, Channels
are cut off if they exceed 512
Select the source protocol
Disable / Enable RDM traffic for this port
Select the desired frame rate
To limit the DMX range, set the first address of the
DMX port
To limit the DMX range, set the last address of the
DMX port
Offset start address, incoming channel X value is
sent on this port as channel X+Offset, Channels
are cut off if they exceed 512
