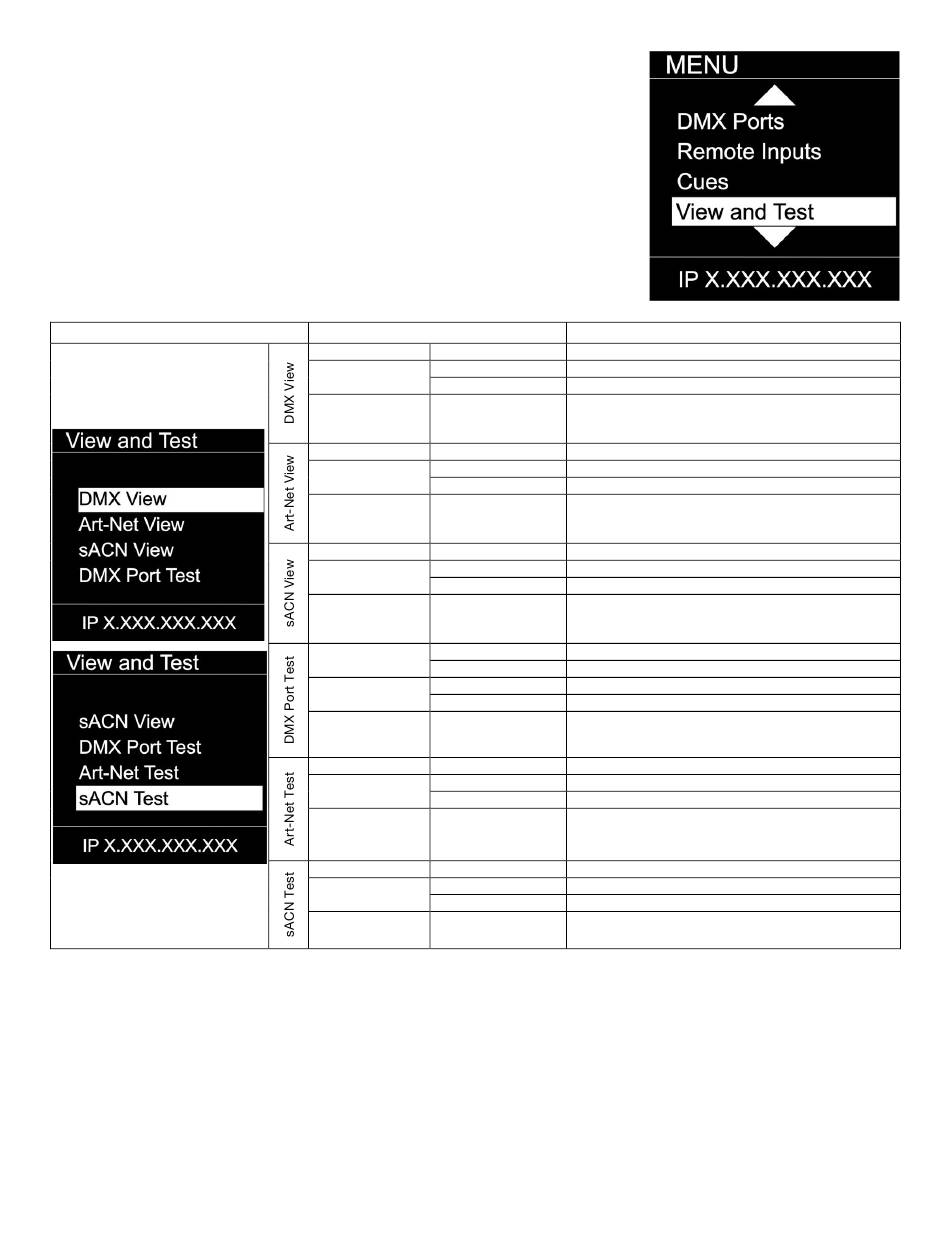

M E N U : V I E W A N D T E S T
This Netron device provides a variety of tools right from the front
display to monitor and test the system. Colors indicate changing
values.
SUB MENU
18
OPTIONS / VALUE
View Port 1 – 4
From: 1 – 512
Range
To: 1 – 512
Start Monitor
Universe 1 – 32767
From: 1 – 512
Range
To: 1 – 512
Start Monitor
Universe 1 – 32767
From: 1 – 512
Range
To: 1 – 512
Start Monitor
Port 1 – 4
Output
All Ports
From: 1 – 512
Range
To: 1 – 512
Speed 1 – 10, Manual
Universe 1 – 32767
From: 1 – 512
Range
To: 1 – 512
Speed 1 – 10, Manual
Universe 1 – 32767
From: 1 – 512
Range
To: 1 – 512
Speed 1 – 10, Manual
Description
View the DMX values of a specific port
default 1
default 512
Start Monitoring Values. Use Encoder to dial to the
desired DMX address. Push Encoder to change
display readout style (Grid, List, Address)
View a specific Art-Net Universe
default 1
default 512
Start Monitoring Values. Use Encoder to dial to the
desired DMX address. Push Encoder to change
display readout style (Grid, List, Address)
View a specific sACN Universe
default 1
default 512
Start Monitoring Values. Use Encoder to dial to the
desired DMX address. Push Encoder to change
display readout style (Grid, List, Address)
Send generator values on specific port
Send generator values on all ports
default 1
default 512
Select the speed of generator
Select Art-Net Universe
default 1
default 512
Select the speed of generator
Select sACN Universe
default 1
default 512
Select the speed of generator
