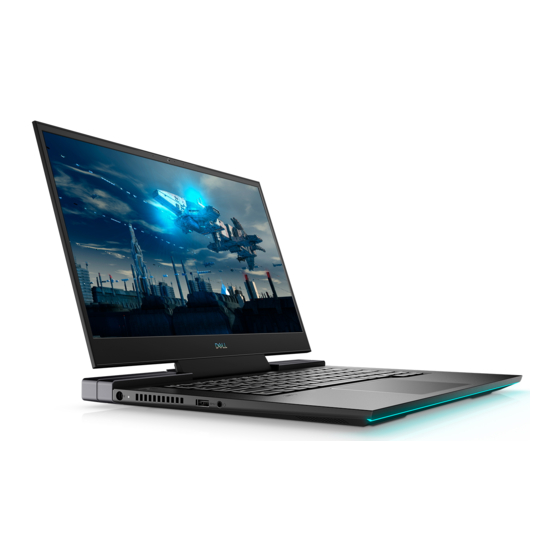

- Page 1 Dell G7 15 7500 Setup and Specifications Regulatory Model: P100F Regulatory Type: P100F001 June 2020 Rev. A00...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Dell G7 7500....................4 Chapter 2: Views of Dell G7 7500..................... 6 Right......................................6 Left......................................6 Back......................................7 Base......................................8 Display..................................... 9 Bottom....................................10 Chapter 3: Specifications of Dell G7 7500..................11 Dimensions and weight.................................11 Processor....................................12 Chipset....................................12 Operating system................................. -
Page 4: Chapter 1: Set Up Your Dell G7 7500
Set up your Dell G7 7500 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Connect the power adapter and press the power button. NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time. - Page 5 Table 1. Locate Dell apps (continued) Resources Description SupportAssist Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
-
Page 6: Chapter 2: Views Of Dell G7 7500
Views of Dell G7 7500 Topics: • Right • Left • Back • Base • Display • Bottom Right 1. SD-card slot Reads from and writes to the SD card. The computer supports the following card types: • Secure Digital (SD) •... -
Page 7: Back
• Power adapter is connected and the battery is fully charged. • Computer is running on battery and the battery has more than 5% charge. • Computer is in sleep state, hibernation, or turned off. 3. USB 3.2 Gen 1 port with PowerShare Connect peripherals such as external storage devices and printers. -
Page 8: Base
Connect to a TV or another HDMI-in enabled device. Provides video and audio output. 4. USB 3.2 Gen 1 port Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. 5. Network port Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access. -
Page 9: Display
Display 1. Left microphone Provides digital sound input for audio recording and voice calls. 2. Camera Enables you to video chat, capture photos, and record videos. 3. Camera-status light Turns on when the camera is in use. 4. Right microphone Provides digital sound input for audio recording and voice calls. -
Page 10: Bottom
Bottom 1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output. Views of Dell G7 7500... -
Page 11: Chapter 3: Specifications Of Dell G7 7500
Specifications of Dell G7 7500 Topics: • Dimensions and weight • Processor • Chipset • Operating system • Memory • External ports • Internal slots • Communications • Audio • Storage • Intel Optane Memory H10 with Solid State Storage (optional) •... -
Page 12: Processor
Processor The following table lists the details of the processors supported by your Dell G7 7500. Table 3. Processor Description Option one Option two Option three Processor type Generation Intel Core Generation Intel Core Generation Intel Core i5-10300H i7-10750H i9-10885H Processor wattage 45 W 45 W... -
Page 13: External Ports
Table 5. Memory specifications (continued) Description Values Memory speed 2933 MHz Maximum memory configuration 32 GB Minimum memory configuration 8 GB Memory size per slot 4 GB, 8 GB, 16 GB Memory configurations supported • 8 GB DDR4 at 2933 MHz (2 x 4 GB), dual-channel •... -
Page 14: Internal Slots
Internal slots The following table lists the internal slots of your Dell G7 7500. Table 7. Internal slots Description Values • One M.2 2230 slot for WiFi and Bluetooth combo card • One M.2 2230/2280 slots for solid-state drive/Intel Optane storage NOTE: To learn more about the features of different... -
Page 15: Audio
Table 9. Wireless module specifications (continued) Description Options Bluetooth Bluetooth 5.1 Bluetooth 5.0 Bluetooth 5.1 Bluetooth 5.0 Audio The following table lists the audio specifications of your Dell G7 7500. Table 10. Audio specifications Description Values Audio controller Realtek ALC3281 with Nahimic 3D audio for Gamers Stereo conversion Supported Internal audio interface... -
Page 16: Intel Optane Memory H10 With Solid State Storage (Optional)
Intel Optane Memory H10 with Solid State Storage (optional) Intel Optane Memory technology utilizes 3D XPoint memory technology and functions as a non-volatile storage cache/accelerator and/or storage device depending on the Intel Optane Memory installed in your computer. Intel Optane Memory H10 with Solid State Storage functions as both a non-volatile storage cache/accelerator (enabling enhanced read/ write speeds for hard-drive storage) and a solid-state storage solution. -
Page 17: Camera
Table 14. Keyboard specifications (continued) Description Values Keyboard layout QWERTY Number of keys • United States and Canada: 82 keys • United Kingdom: 83 keys • Japan: 86 keys Keyboard size X =19.05 mm key pitch Y =19.05 mm key pitch Keyboard shortcuts Some keys on your keyboard have two symbols on them. -
Page 18: Power Adapter
Table 16. Touchpad specifications (continued) Description Values Touchpad dimensions: Horizontal 115 mm (4.53 in.) Vertical 80 mm (3.15 in.) Touchpad gestures For more information about touchpad gestures available on Windows 10, see the Microsoft knowledge base article 4027871 support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Dell G7 7500. -
Page 19: Display
Table 18. Battery specifications (continued) Description Option one Option two Battery dimensions: Height 7.56 mm (0.30 in.) 7.56 mm (0.30 in.) Width 295.20 mm (11.62 in.) 295.20 mm (11.62 in.) Depth 77.70 mm (3.06 in.) 77.70 mm (3.06 in.) Temperature range: Operating 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F) -
Page 20: Fingerprint Reader (Optional)
Table 19. Display specifications (continued) Description Option one Option two Option three Pixels Per Inch (PPI) Contrast ratio (typ) 800:1 1000:1 100K:1 Response time (max) 19 ms 3 ms 2 ms Refresh rate 144 Hz 300 Hz 60 Hz Horizontal view angle 80 degrees (minimum) 80 degrees (minimum) 80 degrees (minimum) -
Page 21: Operating And Storage Environment
Table 22. GPU—Discrete (continued) Controller External display support Memory size Memory type NVIDIA GeForce GTX 1660 Ti • HDMI 2.0 port 6 GB GDDR6 • Mini DisplayPort 1.4 port NVIDIA GeForce RTX 2060 • HDMI 2.0 port 6 GB GDDR6 •... -
Page 22: Chapter 4: Keyboard Shortcuts
Keyboard shortcuts Function keys NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 23 Table 24. List of keyboard shortcuts (continued) Function key Redefined key (for multimedia control) Behavior Toggle between enabling and disabling the touchpad The fn key is also used with selected keys on the keyboard to invoke other secondary functions. Table 25. List of keyboard shortcuts Function key Behavior Toggle between power and battery-status light/hard-drive activity...
-
Page 24: Chapter 5: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 27. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell Tips Contact Support In Windows search, type Contact Support, and press Enter.
