Summary of Contents for Dell EMC Inspiron 14 3000

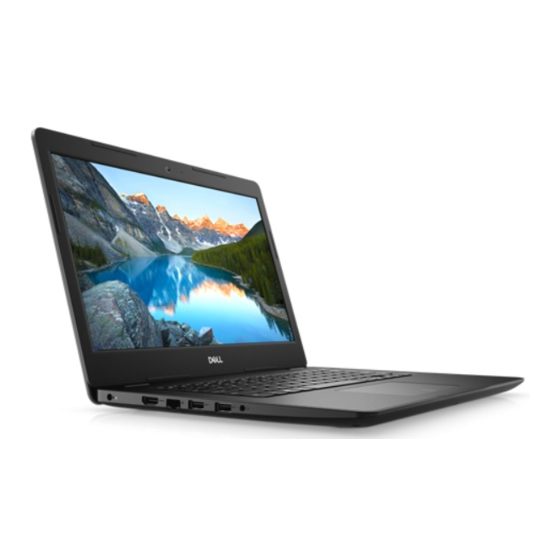

- Page 1 Inspiron 14 3000 Setup and Specifications Regulatory Model: P60G Regulatory Type: P60G004...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents 1 Set up your computer........................4 2 Views............................6 Front......................................6 Left......................................6 Right......................................7 Base......................................7 Display..................................... 8 3 Specifications..........................9 Dimensions and weight................................. 9 System information................................9 Memory....................................9 Ports and connectors................................9 Communications...................................10 Audio...................................... 10 Storage....................................10 Media-card reader................................10 Keyboard....................................10 Camera.................................... -
Page 4: Set Up Your Computer
Set up your computer 1. Connect the power adapter and press the power button. 2. Follow the instructions on the screen to finish Windows setup: a) Connect to a wireless network. b) Sign in to your Microsoft account or create a new account. 3. - Page 5 SupportAssist — Check and update your computer Set up your computer...
-
Page 6: Views
Views Front 1. Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle this light between power and battery-status light and hard-drive activity light. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. Power and battery-status light Indicates the power and battery-charge status. -
Page 7: Right
Right 1. Headset port Connect a headphone or a headset (headphone and microphone combo). 2. USB 2.0 ports (2) Connect peripherals such as storage devices and printers. Provides data transfer speeds up to 480 Mbps. 3. Security-cable slot Connect a security cable to prevent unauthorized movement of your computer. Base 1. -
Page 8: Display
Display 1. Camera Enables you to video chat, capture photos, and record videos. 2. Camera-status light Turns on when the camera is in use. 3. Microphone Provides digital sound input for audio recording, voice calls, and so on. 4. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. -
Page 9: Specifications
Specifications Dimensions and weight Height 21.4 mm (0.84 in) Width 345 mm (13.58 in) Depth 243 mm (9.57 in) Weight (maximum) 1.90 kg (4.19 lb) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. -
Page 10: Communications
Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless • Wi-Fi 802.11ac • Wi-Fi 802.11b/g/n • Bluetooth 4.0 • Miracast (Optional) Audio Controller Realtek ALC3234 with Waves MaxxAudio Speakers Speaker Output • Average – 2 W • Peak – 2.5 W Microphone Single digital microphone in the camera assembly Volume controls... -
Page 11: Touch Pad
Touch pad Resolution • Horizontal: 2040 • Vertical: 1240 Dimensions • Height: 65 mm (2.56 in) • Width: 105 mm (4.13 in) Power adapter Type 45 W 65 W Input current (maximum) 1.30 A 1.70 A Output current (continuous) 2.31 A 3.34 A Input voltage 100 VAC–240 VAC... -
Page 12: Video
Diagonal 355.60 mm (14.00 in) Refresh rate 60 Hz Operating angle 0 degree (closed) to 135 degrees Controls Brightness can be controlled using shortcut keys Video Integrated Discrete Controller Intel HD Graphics 620 AMD Radeon R5 M315 Memory Shared system memory •... -
Page 13: Keyboard Shortcuts
Keyboard shortcuts Keys Description Mute audio Decrease volume Increase volume Play previous track/chapter Play/Pause Play next track/chapter Switch to external display Search Decrease brightness Increase brightness Turn off/on wireless Pause/Break Sleep Toggle scroll lock Toggle between power and battery-status light/hard-drive activity light System request Open application menu... - Page 14 Keys Description Page down Page up Keyboard shortcuts...
-
Page 15: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Information about Dell products and services www.dell.com Dell Help & Support app Get started app Accessing help in Windows 10 In Windows search, type Help and Support, and press Enter.
