PREPARING THE UNIT FOR INSTALLATION

Single-Piece Mounting Bracket
The SC Series utilizes a single-piece mounting bracket. This sturdy
bracket frames the installation location and secures the unit to
the wall.

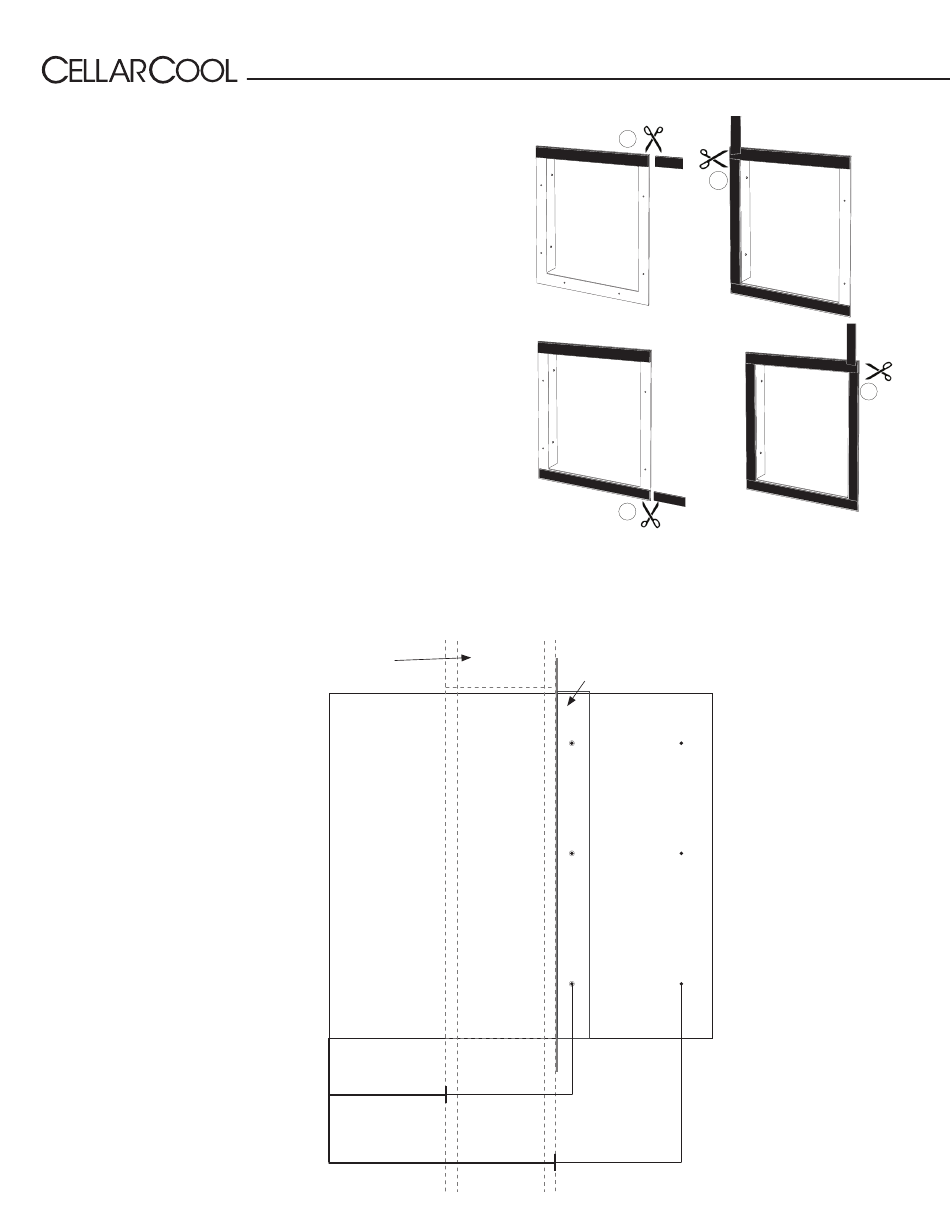

Applying Insulation Tape
Locate the six-foot piece of black foam tape included with the
unit. Align one end of the foam tape with the upper left corner of
the rear side of the mounting bracket. Stretch the tape across the
rear of the bracket and cut the tape at the opposite edge. Peel off
the white paper backing and attach the cut piece of foam tape
to the top rear side of the mounting bracket. Follow the same
procedure to place a piece of tape on the bottom edge of the
mounting bracket. Place the remaining piece of foam tape on one
side of the mounting bracket (spanning the distance between
the pieces of tape on the top and bottom edges of the mounting
bracket), then cut, remove paper backing, and secure. Do the
same on the opposite side of the bracket. Discard any excess. The
foam tape will create a tight seal between the bracket and the
wall.
Mounting Bracket Installation
Select your desired bracket mounting location (see diagram below). This location determines the depth of the installation. For
example, position #1 keeps most of the unit out of the cellar while position #2 makes the back of the unit near flush on the
exterior wall. Slide the bracket onto the unit, paying special attention to the flanges for mounting to the unit. Make sure they are
pointing towards the back. Use the six 1/2" pan-head screws to fasten the bracket to the unit. Under no circumstances should
you use screws longer than 1/2" in length.
Wine Cellar
#1 2200/3300/4400
5-6 Inches in cellar
8800
9.5-10.5 Inches in cellar
#2 2200/3300/4400
9-10 Inches in cellar
8800
14-15 Inches in cellar
Page 12
5" inch thick wall
(wall thickness may vary)
1
#
2
#
1
3
2
Mounting Bracket
Exhaust Area
4
