Summary of Contents for CellarCool SL Series

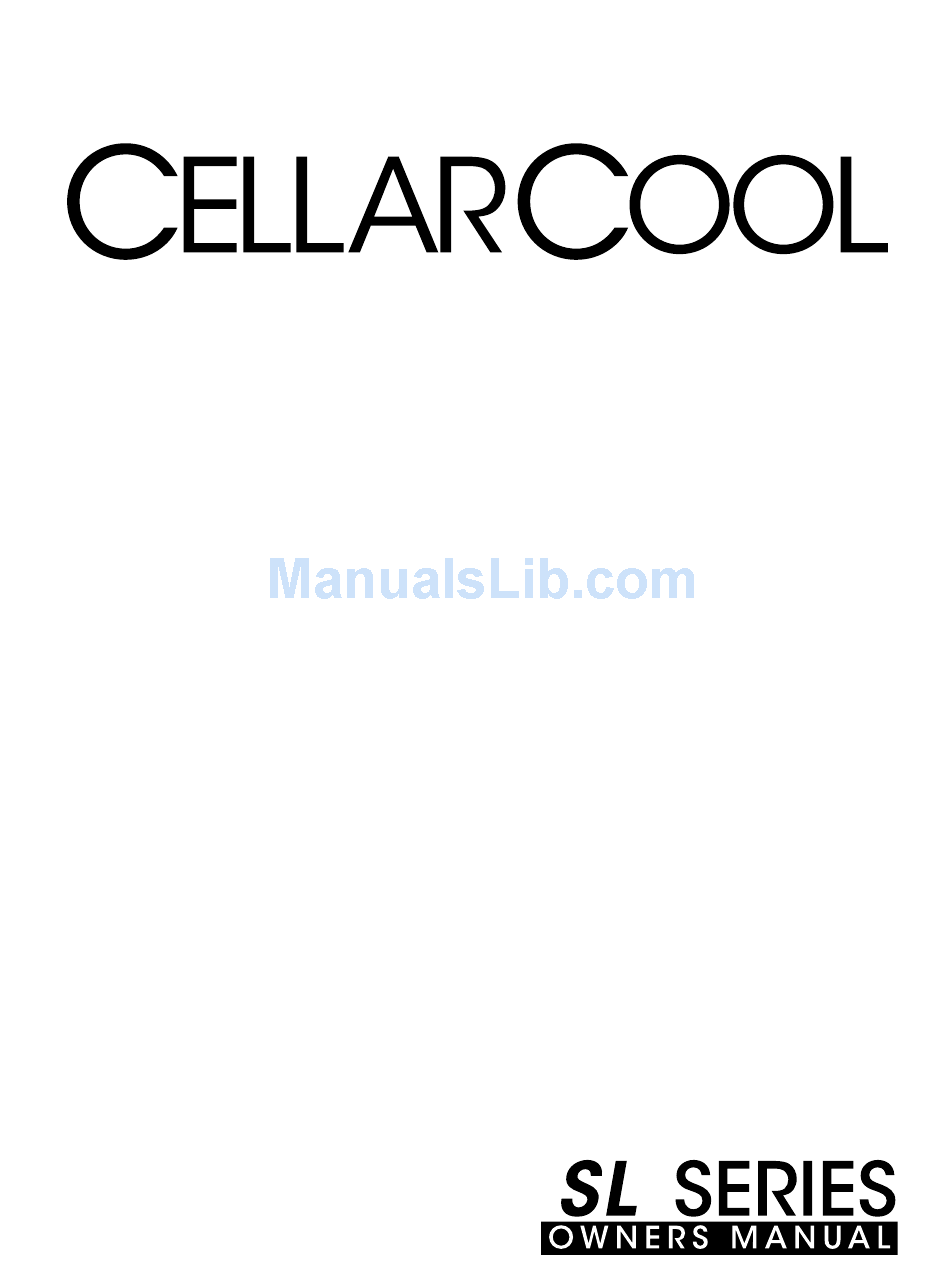

  • Page 2 CellarCool. Every effort has been made to ensure that the information in this manual is accurate. CellarCool is not responsible for printing or clerical errors.

  • Page 3: Table Of Contents

    Technical Assistance & Accessories ......Installation Terms and Conditions ......www.cellarcool.com | Page 1...

  • Page 4: Quick Reference Guide

    QUICK REFERENCE GUIDE Front / Side View (in cellar / evaporator) Air Sensing Grille Controller Power Cord Drain Port Bottom View Rear / Side View (out of cellar / condenser) Power Cord Grille Page 2 | 1-855-235-5271 SL 102212...

  • Page 5: Controller & Specifications

    50 lbs AMPS (starting/running) 17.5/3.5 Evaporator: 59 / Condenser: 53 Installation Through-the-Wall, ideally above a doorway Thermostat Advanced Digital Control Display Temp. Delta 30°F temperature differential Warranty 2 year parts and labor / 5 year compressor www.cellarcool.com | Page 3...

  • Page 6: Introduction

    Customer Service Thank you for purchasing a CellarCool SL2500 cooling unit. We strive to provide the highest quality products and the best possible customer service. If you have any questions about your CellarCool unit, please call us at 1(855) 235- 5271.

  • Page 7: Receiving & Inspecting The Unit

    • Insulation Foam Strips (4) Please leave the CellarCool unit in its original box until you are ready for installation, this will allow you to move the product safely without damaging it. TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.

  • Page 8: Quick Start Guide

    QUICK START GUIDE This guide is meant to serve as a quick reference for installation of the CellarCool unit. The remainder of this Owner’s Manual will provide more detailed information and instructions. Upon receiving the CellarCool unit: 1. Inspect the unit before installation. If damage is found, please contact your distributor or CellarCool Customer Service at 1.855.235.5271 ext 799.

  • Page 9: Preparing The Wine Cellar

    How to Build a Wine Cellar Instructional Video CellarCool has a construction tutorial available on line at our website: www.cellarcool.com. This tutorial will walk you through the steps of constructing a properly built wine cellar and the installation of our CellarCool product line. Wall & Ceiling Framing Build wine cellar walls using standard 2x4 or 2x6 construction methods and ceiling joists following the guidelines of local and state codes in your area.

  • Page 10: Mounting The Unit

    The unit must be mounted within 18“ of the top of the room in order to achieve sufficient cooling. As the room cools down, the warm air will rise to the ceiling. Mounting the CellarCool high in the room will create a consistently cool environment by capturing the warm air and replacing it with cool air.
  • Page 11 Thus the drain line will prevent overflow and leaking by allowing for discharge of the additional condensate. CellarCool carries a condensate pump kit, which allows the excess condensate to be pumped up to 20 ft. away from the unit.

  • Page 12: Pre-Installation

    Electrical Needs The CellarCool System requires a dedicated 110-volt 20-amp circuit. The unit draws a large amount of amps at initial start up. By designating a dedicated circuit breaker, you will guarantee the unit has enough power to run effectively.

  • Page 13: Preparing The Installation Location

    Note: The following installation examples are for reference only, door header construction and framing may vary. When not installing above a door, adequate framing inside of the wall is necessary. CellarCool recommends consulting a licensed contractor for framing and construction needs.

  • Page 14: Installation

    Secure the flange to the wall through the pre drilled holes. The screws should penetrate the studs to provide adequate support for the CellarCool system. Seal all cracks and gaps around the unit with an air-tight Power sealant or caulking to prevent air leakage.
  • Page 15 NOTES www.cellarcool.com | Page 13...

  • Page 16: System Operation

    SYSTEM OPERATION Initial Start-Up Anti Frost Cycle When power is applied to the unit, the control will The Anti Frost Cycle is a precautionary measure, as briefly display all symbols, and the Compressor icing or frosting of the coil does not occur during symbol will be displayed (if unit is calling for cooling).

  • Page 17: Control Functions

    4. To deactivate the ER feature, press the ER button one time, and the ER logo will turn off. 5. The ER feature can be conveniently adjusted specific need by accessing the “Customer Preference Select Mode” (CPSM). See CPSM Instructions on the next page. www.cellarcool.com | Page 15...
  • Page 18 SET 1. Press the “Set” button once and it will display the Set Point. After approximately 5 sec- onds, the display will return to normal operation and display the Air Sensing Probe temperature. 2. Standard Controller - Press and hold the “Set” button for 3-5 seconds until the set point is displayed and the °F symbol starts blinking.
  • Page 19 Hes – Differential for Energy Reduction – This parameter is set at 4° above the set point, during the Energy Reduction mode. A decrease in this setting will decrease the set point, and an increase in this feature will increase the set point. www.cellarcool.com | Page 17...

  • Page 20: Maintenance Schedule

    MAINTENANCE SCHEDULE It is the user’s responsibility to remove any accumulated dust, lint, or other debris from the front and rear intake grilles. This will restrict the airflow and may affect the unit’s ability to function properly. Periodically cleaning the unit’s vents will help assure maximum cooling efficiency.

  • Page 21: Troubleshooting Guide

    Lower the set point. Evaporator coil is frosted or iced up Observe ice formation pattern. If only part way up the coil face, unit could be low on refrigerant. If so, call Customer Service at 855-235-5271 www.cellarcool.com | Page 19...
  • Page 22 TROUBLESHOOTING GUIDE Unit leaks water Possible Cause Solution Unit is not level Unit should be level in wall to prevent leaking Drain line clogged or kinked Check drain line to make sure water can flow freely. Drain is clogged preventing water form escaping Disconnect drain and clear out Drain line does not have a downward slope Fix Drain line so there is a downward slope from the unit to the drain.

  • Page 23: Technical Assistance & Accessories

    TECHNICAL ASSISTANCE CellarCool Customer Service is available Monday through Friday from 8:00 a.m. to 4:00 p.m. Pacific Time. The customer service representative will be able to assist you with your questions and warranty information more effectively if you provide them with the following: •...

  • Page 24: Installation Terms And Conditions

    A. Two (2) Year Limited Warranty. For the period of TWO (2) YEARS (the “Limited Warranty Period”) from the date of original sale of a Product by CellarCool, if a CellarCool Product is found to be defective in material or workmanship after undergoing CellarCool’s customer service troubleshooting, then, subject to the CellarCool...
  • Page 25 10. No one has any authority to add to or vary the limited warranty on this Product. 3. Product Installation Requirements: A. Prior to installing a CellarCool Product, the End User must read the CellarCool Owner’s Manual and thereafter the End User must follow the required installation, use and maintenance procedures set forth by CellarCool in CellarCool’s Owner’s Manual.
  • Page 26 Conditions of Sale shall be interpreted as though drafted jointly by CellarCool and Purchaser. Any dispute will be resolved by the courts in and for the County of San Joaquin, State of California, and all parties, CellarCool, Purchaser and End User, hereby irrevocably submit to the personal jurisdiction of such courts for that purpose.
  • Page 27 Web: www.cellarcool.com B. Technical Assistance. CellarCool Customer Service is available Monday through Friday from 6:30 a.m. to 4:00 p.m. PST. The Customer Service representative will be able to assist you with your questions and warranty information more effectively if you provide them with the following: 1.
  • Page 28 CellarCool 1738 E. Alpine Ave. Stockton, CA 95205 1(855) 235-5271 1 (855) Cellar1 www.cellarcool.com...
