Verify storage-system front-end connections

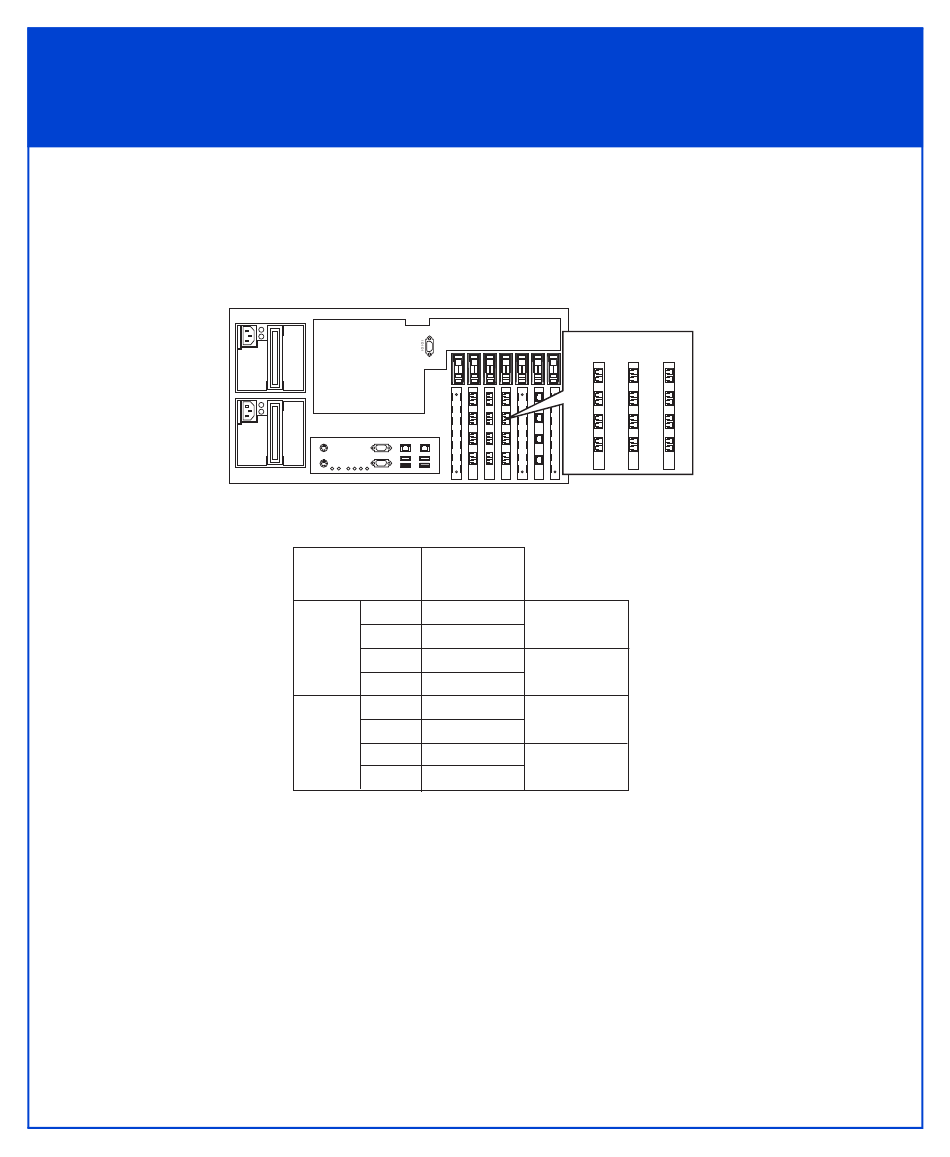

Refer to the table below to verify Fibre Channel cabling from the DL server HBA
ports to the data ports on the CX3-80 storage system.
Step 5
DL Engine (rear)
I O I O I NIC 1 NIC 2
SPE Port Number DL Server
Port Number
FE 0 0
FE 2 10
SP A
FE 1 0
FE 3
10
FE 0 2
FE 2 6
SP B
FE 1 2
FE 3 6
10
HBA ports
2 6 10
3 7 11
0 4 8
1 5 9
DL Server
Standby
Server
DL Server
Standby
Server
