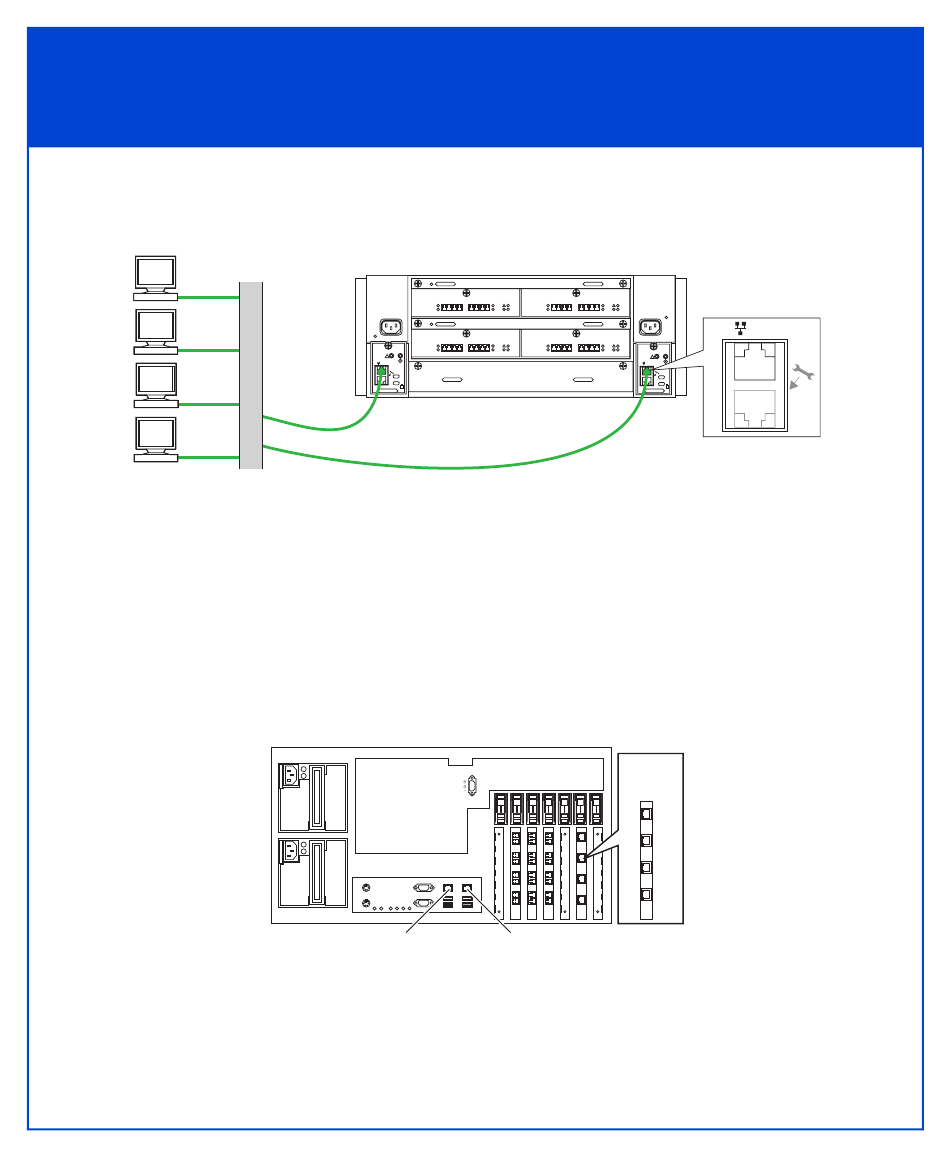

Connect the DL4106 management ports
1. Using CAT 5 or better Ethernet cables, connect each SP to the same subnet as
the host from which you will manage the storage system (management host).
LAN
Connecting the storage system to a shared management LAN
2. Connect the Ethernet ports on the DL server, eth2, eth3, eth4, and eth5 to the 10/
100/1000 Ethernet switch in the customer's environment. These ports (bond0
ports) share an IP address and, therefore, must be on the same subnet. Based on
the customer's requirement you can connect more than one port, which will
improve throughput.
Step 7
!
!
!
DL Engine (rear)
I O I O I NIC 1 NIC 2
eth0 port not used
13
!
!
!
EMC3435
bond0
ports
2
3
4
5
CL3593
