Atlantic Furniture CAPTAIN’S BED HEADBOARD Assembly Instructions

Download this manual

READY

Before assembling your Captain's Bed Headboard, please read through these

instructions carefully, familiarising yourself with the different parts.

Phillips Head

Screwdriver

Please note that you will require a Phillips Head Screwdriver and an Allen wrench.

Customer Supplied

CAPTAIN'S BED WITH UNDER BED CHEST

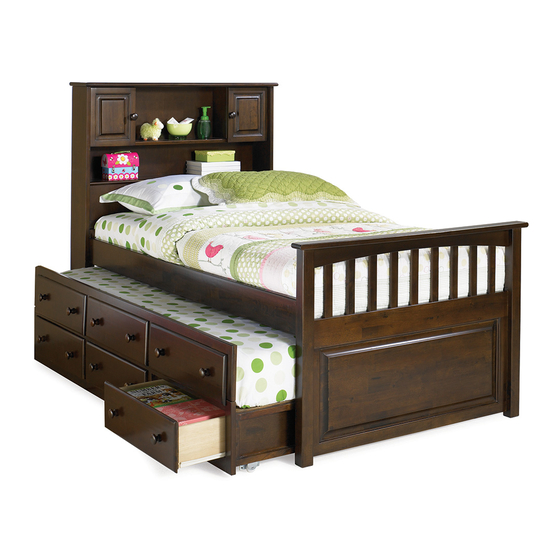

CAPTAIN'S BED WITH STORAGE TRUNDLE

HEADBOARD HARDWARE

WOODEN DOWEL 10 X 30mm - 12 pcs

JCB M6 X 35mm - 8 pcs

JCB M6 X 15mm - 24 pcs

Captain's Bed Headboard

CAPTAIN'S BED HEADBOARD

ASSEMBLY INSTRUCTIONS

( TWIN, FULL )

METAL L BRACKET - 6 pcs

10072008

Assembling by Adult

WOODEN PULL - 2 pcs

PULL SCREW - 2 pcs

ALLEN WRENCH - 1 pc

Page 1 of 4

Page 1 READY CAPTAIN’S BED HEADBOARD ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ( TWIN, FULL ) ( TWIN, FULL ) Before assembling your Captain’s Bed Headboard, please read through these instructions carefully, familiarising yourself with the different parts. Phillips Head Screwdriver Please note that you will require a Phillips Head Screwdriver and an Allen wrench. Customer Supplied Assembling by Adult CAPTAIN’S BED WITH UNDER BED CHEST...
Page 2 HEADBOARD PARTS LIST HARDWARE 1 BOX TOP STORAGE 1 SET LEFT SIDE PANEL 1 PC RIGHT SIDE PANEL 1 PC LOWER SHELF 1 PC FRONT PANEL 1 PC PILLOW STOP 1 PC BACK PANEL 1 PC MOUNTING BLOCK 2 PCS STEP 1 STEP 2 Insert Wooden Dowels (A), into the...
Page 3 STEP 3 STEP 4 Insert Wooden Dowel (A), into the Insert Wooden Dowel (A), into receiving hole in each end of Pillow the receiving hole in each stop (07) as shown. Install metal L Spacer Block (09) as shown. brackets (D) to the Pillow stop (07), using JCB (C).
Page 4 STEP 6 Lay the top storage (02) on the floor upside down, taking care to lay it on some cardboard to prevent scratching. Stand the side panel assembly upside down and using JCB (B) , tighten with Allen wrench (G). UPSIDE DOWN STEP 7 Install wooden pull (E) to each of the...
