Telemark Cryogenics Microprocessor Based Cryochillers
The operations below describe how to operate the unit in manual mode. For
remote operation please refer to section 2.7 of this manual.
3.0 Controls and Displays

3.0.1 LCD Display

Displays the status of the unit as well as, the current running
parameters. It also displays any alarm conditions that may be
present. Alarm conditions will be described in the trouble shooting
section of this manual (Section 5)

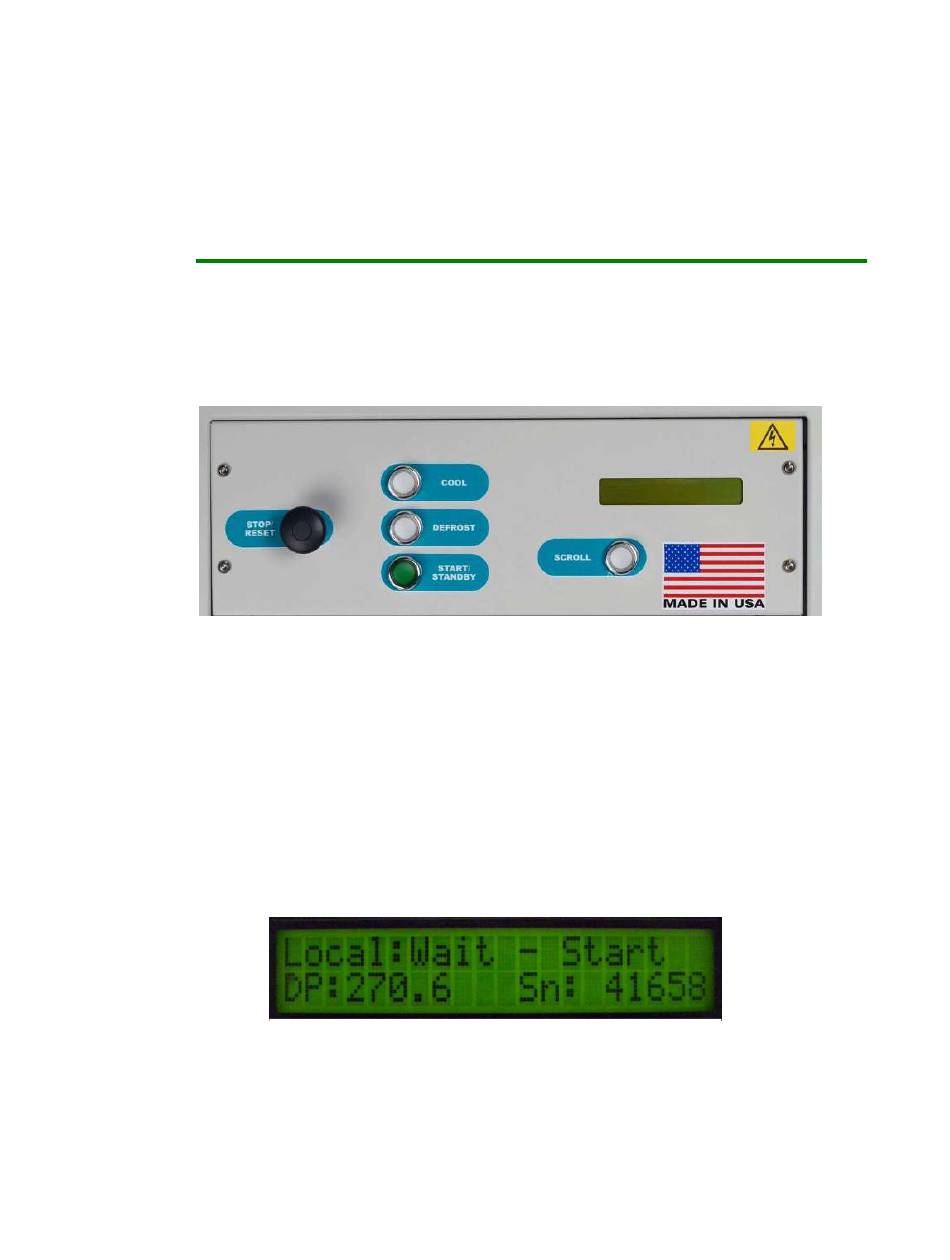

The screen shot above indicates what is seen with the
unit in the wait mode prior to being turned on
Fig 22 front Panel Push Buttons
(Single Coil Unit Shown)
Fig 23
Page 42 of 63
3
OPERATION
Revision 1.0.7 October 2018
