Location; Panel Removal - Telemark Cryogenics 1200 Instruction Manual

2.3

Location

The unit should be placed and a clean level floor and positioned to minimise
the length of the refrigeration lines. It is also important that the lines are well
supported and are manufactured from annealed copper tubing allowing for
thermal expansion and vibration. The units should be placed at least 3"
(80mm) away from the nearest obstructions to allow for sufficient air flow to
the unit.
2.4

Panel Removal.

Remove the front panel to gain access to "hand valve" gas box. Remove the
6 (or 8 screws depending upon model) and remove the front panel exposing
the hand valves. Remove the right hand side panel where the isolator handle
is located.
Power Cable Entry
Telemark Cryogenics Microprocessor Based Cryochillers
Note: the panel can only be removed with the isolator
switch in the "OFF" position
Main Power
Isolator
Balance/Suction
Pressure Gauge
Point

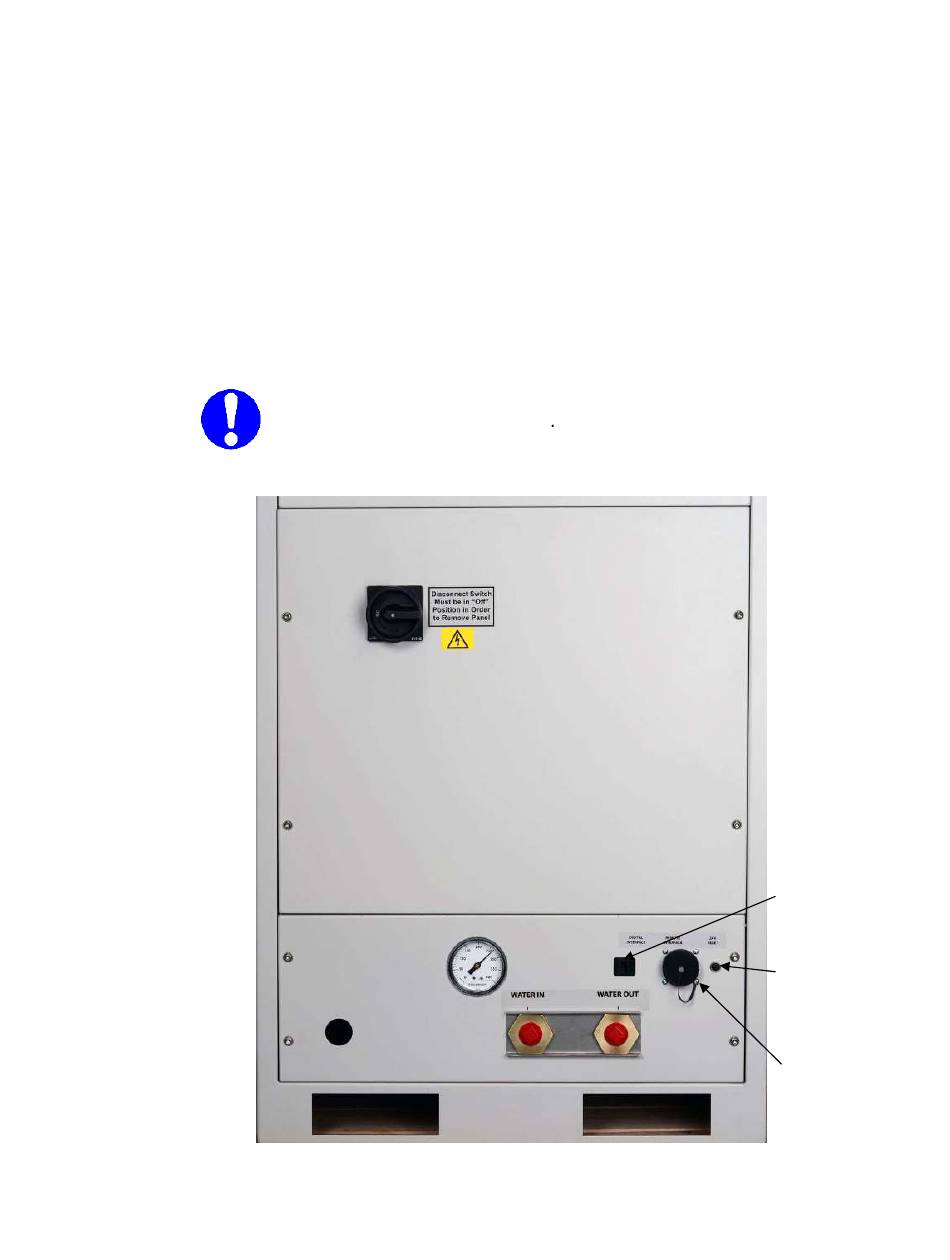

Fig 3 Services Panel
Page 19 of 63
Digital Interface
Port (Ethernet)
24 VDC Circuit
Breaker
Remote
Interface
Connector
Revision 1.0.7 October 2018
