2.6.8 Refrigerant Line Installation notes
Refrigeration lines manufactured should conform to the following
norms.
Coil inlet line diameter
Maximum recommended length
Coil outlet line diameter
Maximum recommended length
Minimum insulation
2
1

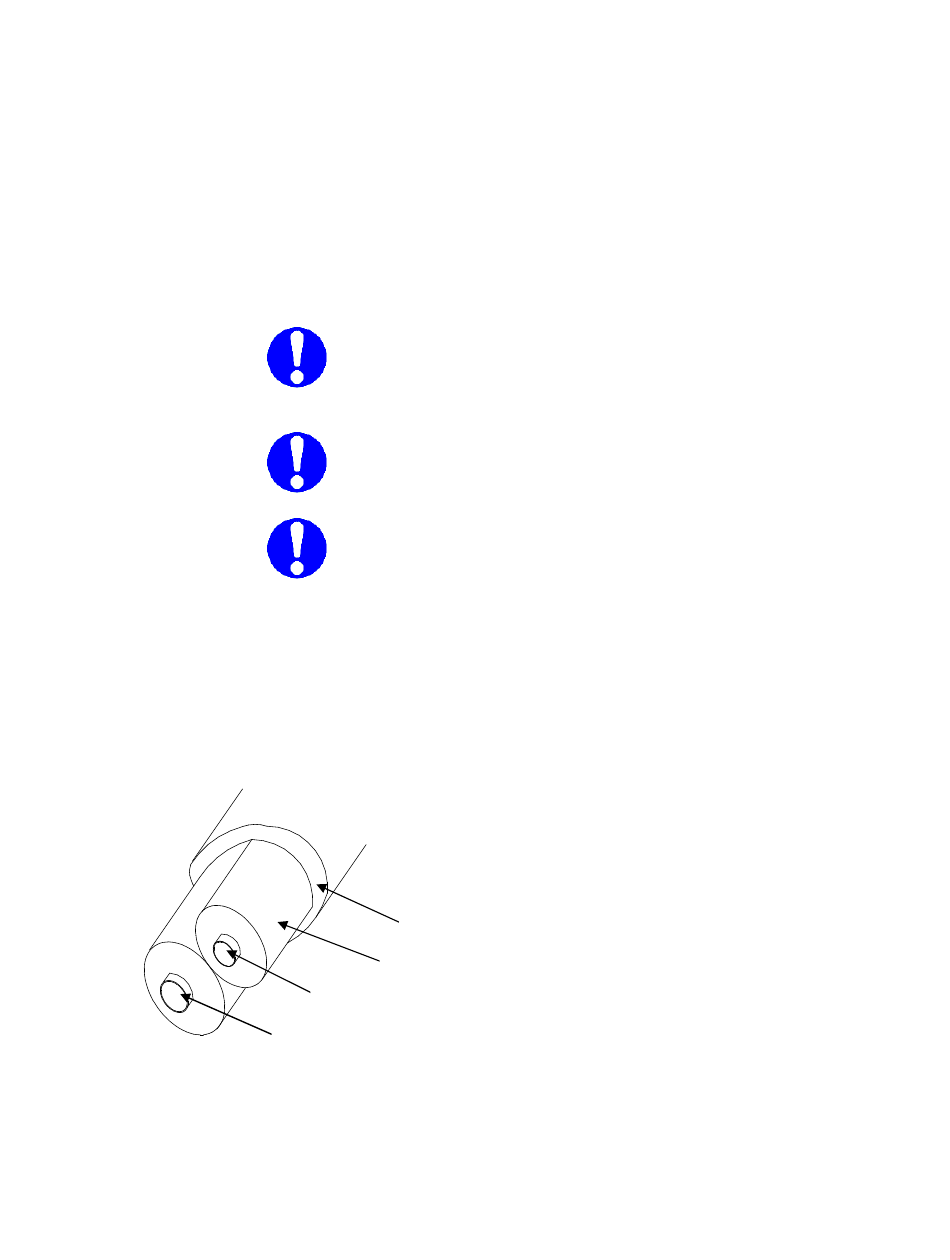

Fig 9 Refrigerant Line Insulation
9.5mm – 3/8" to 15mm – 5/8"
5m (15ft)
15mm – 5/8" to 19mm – ¾ "
5m (15ft)
60mm of closed cell "Armaflex™"
Note: To maximise system performance, the
refrigeration lines should be as short as
possible
Note: Do Not repeatedly bend the refrigerant line
as this will cause leakage and or breakdown of the
insulation materials
Note: It is vital that a new o-ring is used every time
a connection is made or broken. Always use the o-
ring removal tool when removing an "O-Ring".
Take care not to damage mating surfaces of the

connections.

Key
1 line into unit from coil outlet (CO)
2 line from unit to coil inlet (CI)
4
3 ½" wall ½" ID line insulation
3
4 ½" wall 2-
Page 24 of 63
1
/ " ID final insulation
8
