Telemark Cryogenics Microprocessor Based Cryochillers

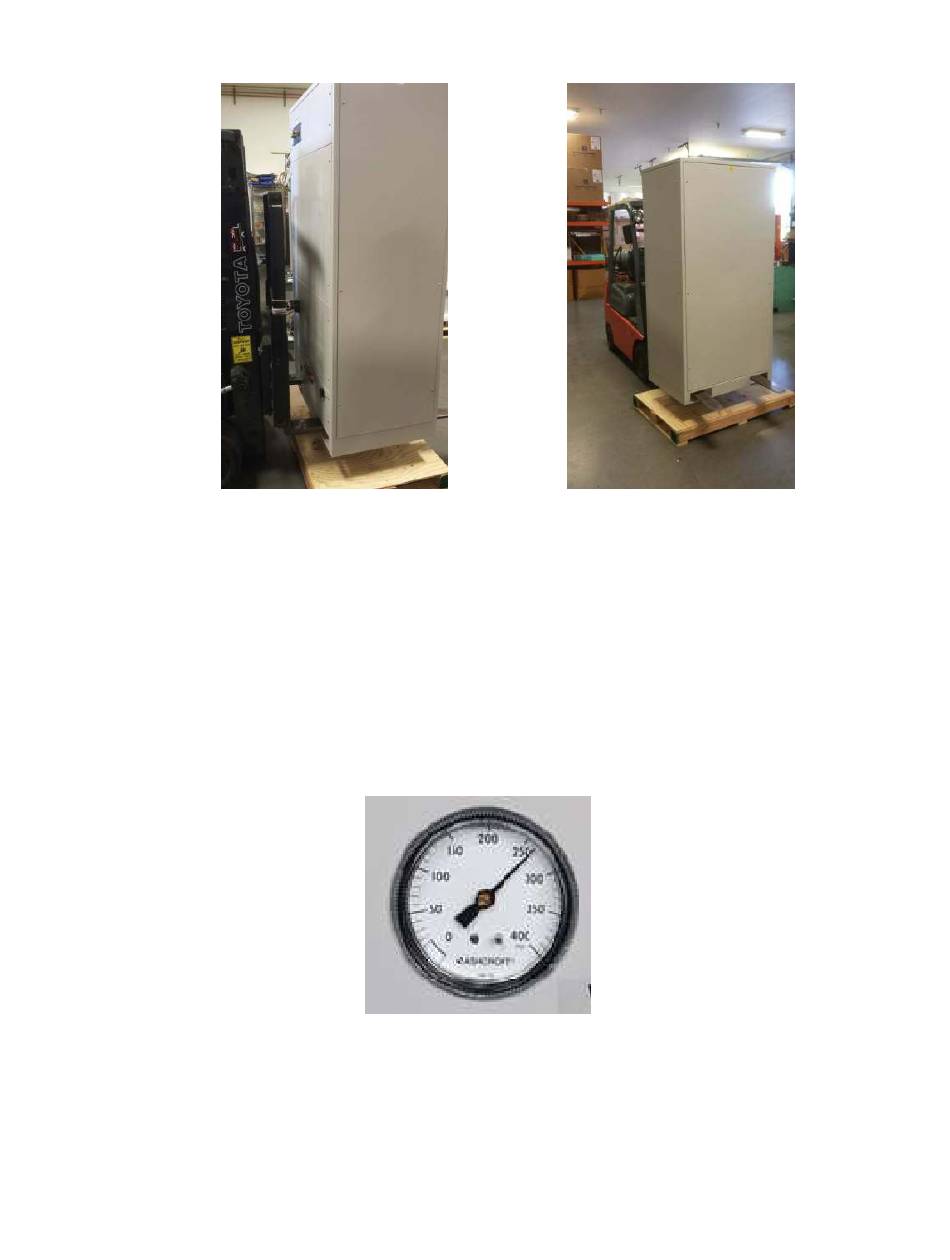

Fig 1 Removing Unit from transportation pallet
2.2

System Pressure

The unit is shipped fully charged. See Tables 1 and 2 (Section 1
"Specifications") above for shipping pressure range of each model. The exact
shipping pressure is noted on the packing list. A pressure gauge is mounted
behind the front panel or to the right hand side of the unit. The static pressure
may vary by up to +/- 16 psi due to changes in the ambient temperature.
Fig 2 Pressure gauge
Page 18 of 63
Revision 1.0.7 October 2018
