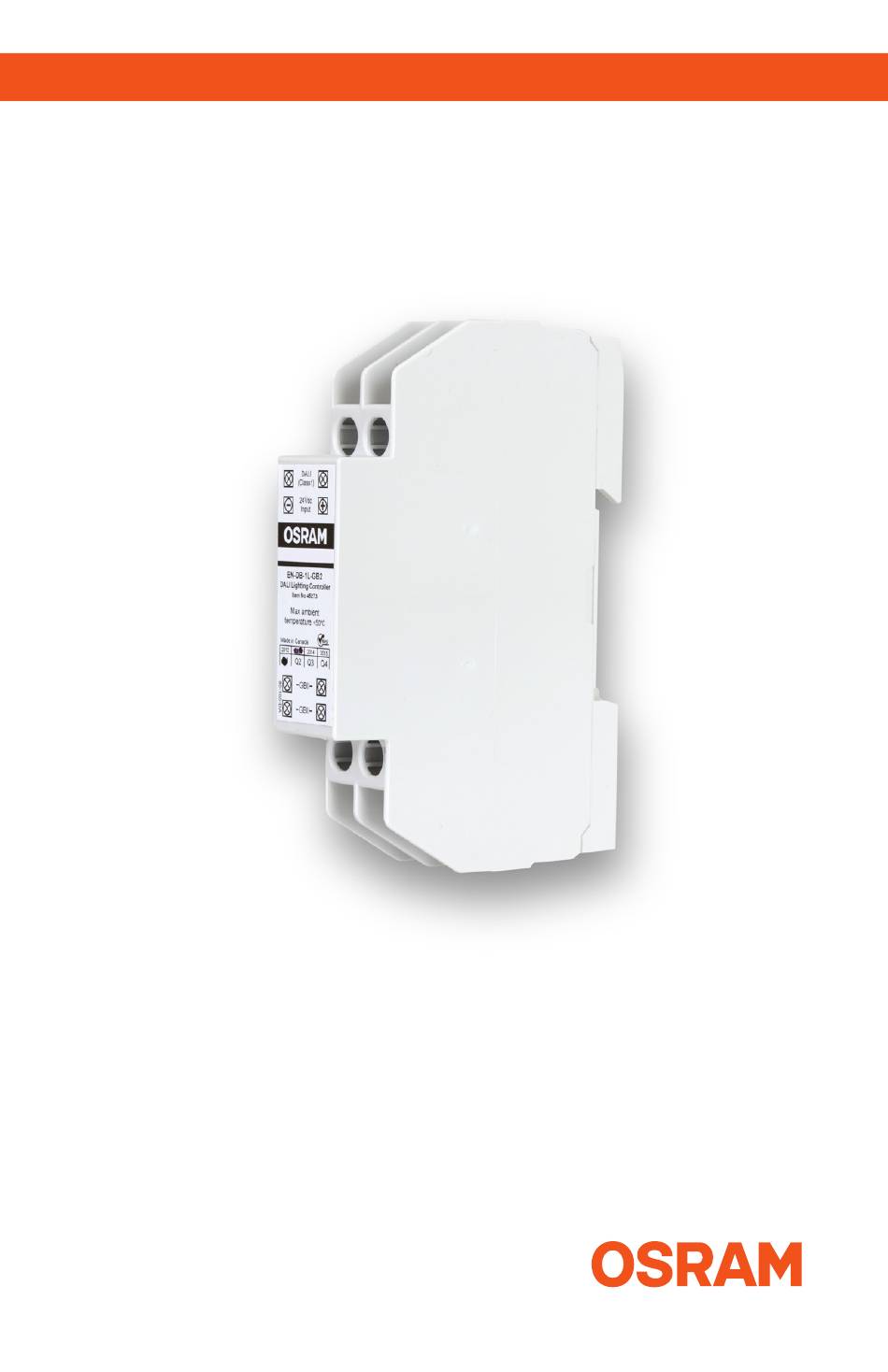

- Page 1 DALI Bridge Module Wiring and installation manual Light is OSRAM...
- Page 2 Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel. — The use of accessory equipment is not recommended by OSRAM as it may cause an unsafe condition. —...
- Page 3 GreenBus II Wiring Protocol Communication Circuit (24V , NEC Class 2) GreenBus II Wiring Protocol is a low-cost, high reliability communication means to ® report information back to the ENCELIUM EXTEND Light Management System ® (LMS) and to obtain optimum brightness settings for light fixtures from the system – optimized to result in minimum energy costs for any given building.
- Page 4 Do not connect more than 64 DALI-compliant ballasts per GreenBus II channel. ® Do not connect DALI sensors or switches to the DALI Bridge Module. Troubleshooting There are no user-serviceable parts inside of the Area Lighting Controller. Please return the device to OSRAM SYLVANIA Inc. if service is required.
- Page 5 Regulatory Approval This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 8 200 Ballardvale Street Wilmington, MA 01887 USA 888-531-7573 www.osram.us/ds OSRAM is a registered trademark of OSRAM GmbH. ENCELIUM and GreenBus II are registered trademarks of OSRAM SYLVANIA Inc. Specifications subject to change without notice. LMS153 1-19 © 2019 OSRAM SYLVANIA Inc.
