Page 1

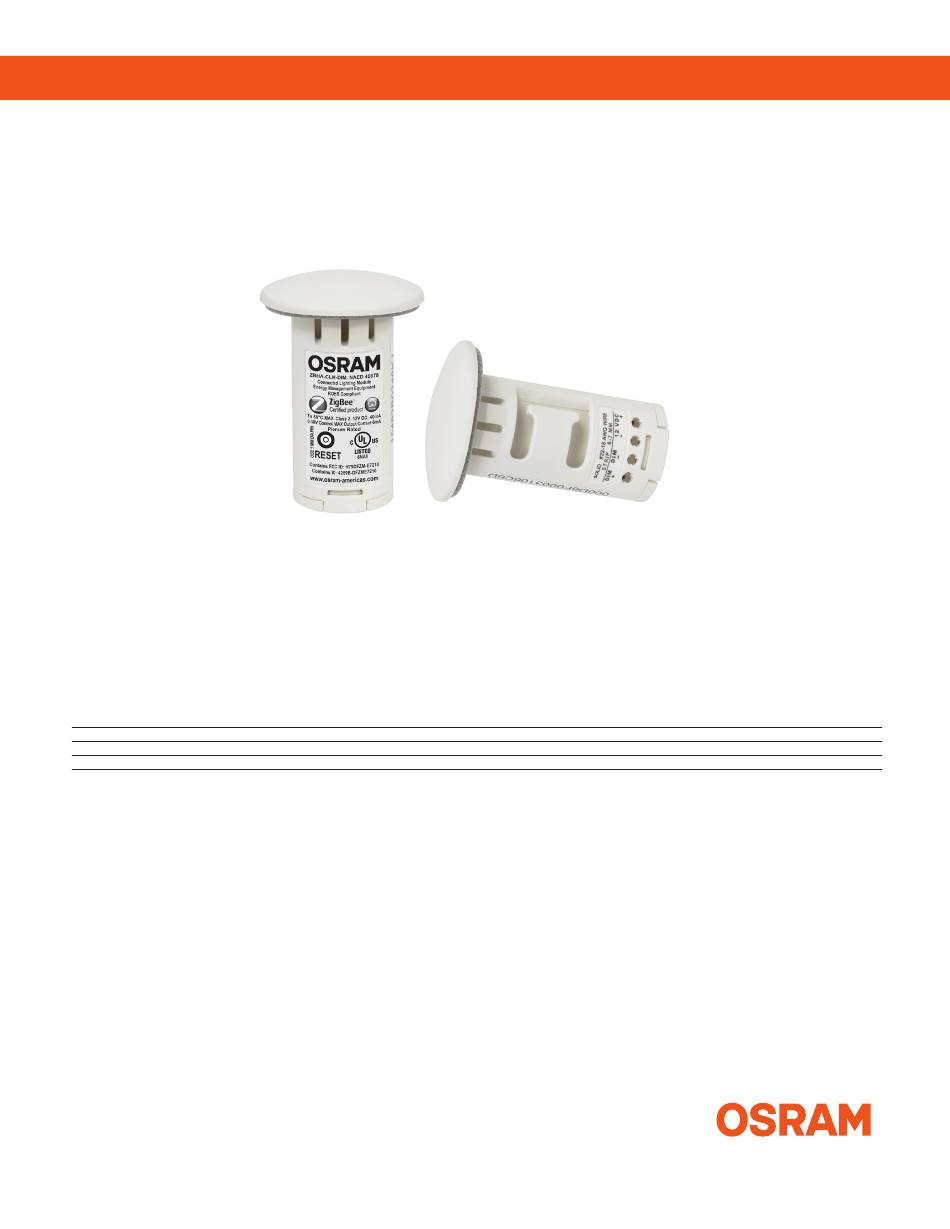

This document provides a set of guidelines for OEMs and installers for the OSRAM Connected Lighting Module (CLM). The CLM is a fixture-integrated component in a Light Management System (LMS). It enables luminaires to be connected to any LMS that is based on ZigBee Home Automation communication protocol.
Installation guide Assembly Steps 1. Mount CLM in the luminaire (or mounting plate) through the knockout using the mounting clips. The diameter of the opening must be 21.82-23.01mm per NEMA standard for ½ inch knockout. Insert module into standard half-inch knockout Push the module to lock into the luminaire 2.
Page 3
Then use the removal tool to disengage the mounting clips. Please contact your OSRAM Digital Lighting Systems representative for a sample of the CLM removal tool. Not Recommended Practices 1. Do not wire the CLM first before installing it in the knockout.
If using OPTOTRONIC LED Power Supplies, the dim-to-off feature ® the CLM-DIM, the LED driver must possess dim-to-off capability must be enabled in the programming software. The default state wherein the output current can be turned off via 0-10V signal.
Page 5
Connected Lighting Module | Installation guide CLM DIM Single LED Power Supply When using OSRAM OPTOTRONIC LED drivers with auxiliary ® output, the driver should be programmed to 12V auxiliary. The default auxiliary voltage of the drivers out-of-the-box is 12V.
Connected Lighting Module | Installation guide Using External Power Supply When using OSRAM OPTOTRONIC LED drivers with ® auxiliary output, the driver should be programmed to 12V auxiliary. The default auxiliary voltage of the drivers out-of- the-box is 12V. This wiring is suitable for luminaires with single or multiple LED power supplies that do not have auxiliary output capability and thus utilize a discrete external power supply.*...
Page 7
LED - DEXAL - IEEE Address Each CLM has a dedicated 16-digit IEEE 802.15.4 and a 2D Data Matrix scannable barcode to identify a particular device on a network. A label containing both barcodes is secured on the device. Two additional labels are available for OEMs to 43.5...
When the luminaire is powered, the fixture turns ON and commissioning. This would indicate that the CLM is wired reaches its full output. The CLM then cycles through the entire correctly and ready to be paired to an open network. For more dimming range starting from 100% output level to OFF* two information, please refer to the Wiring Test Tool User Guide.
Page 9
Pressing the reset button for 5 seconds resets the product to the factory default state where the product removes group membership, binding table, and sets any persistent attributes to their default values. NOTE: The CLM should be powered up while being reset manually. ZBHA-CLM-DIM. NAED 45678...
