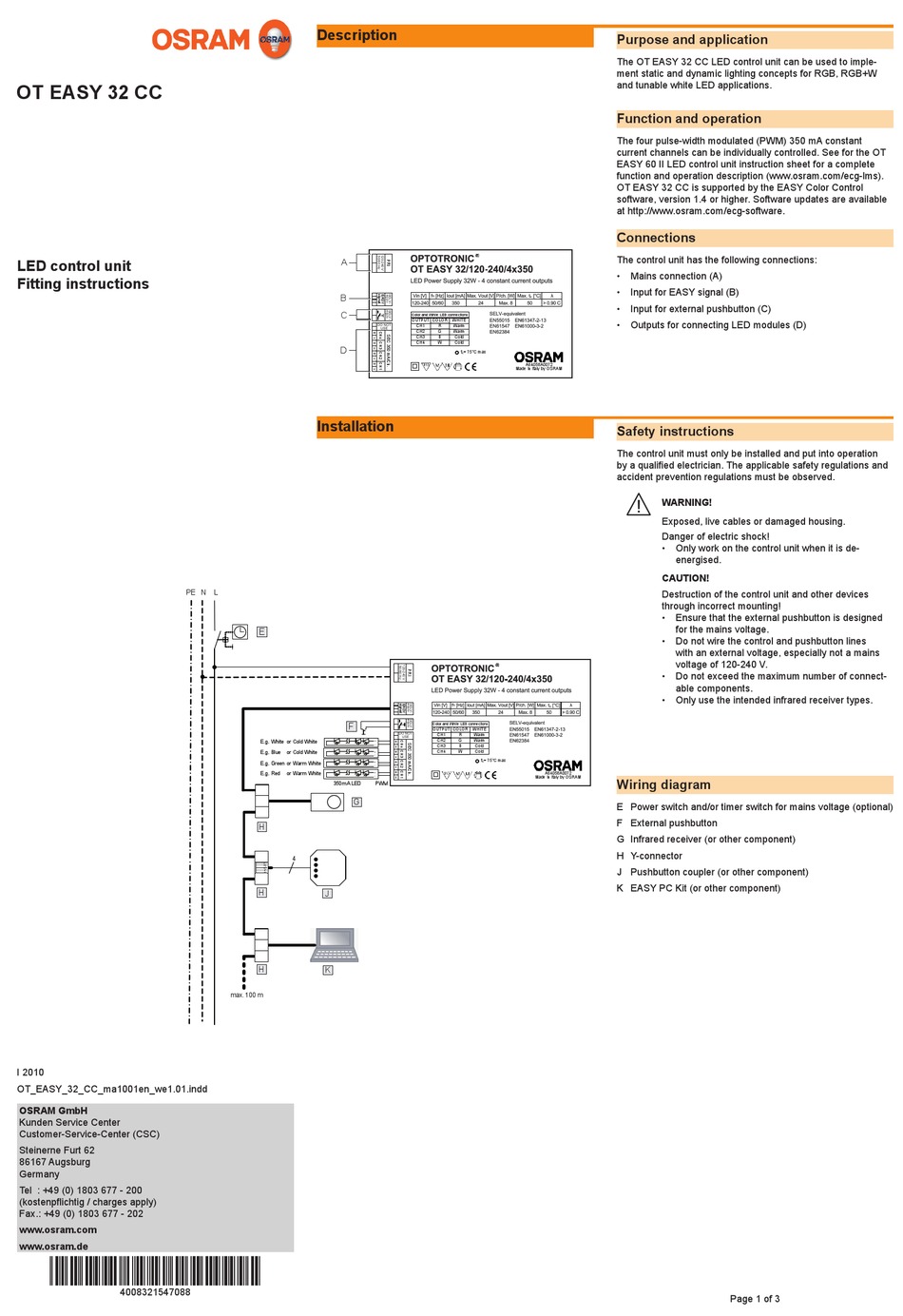

Osram OT EASY 32 CC Fitting Instructions

OT EASY 32 CC
LED control unit
Fitting instructions
PE N
I 2010
OT_EASY_32_CC_ma1001en_we1.01.indd
OSRAM GmbH
Kunden Service Center
Customer-Service-Center (CSC)
Steinerne Furt 62
86167 Augsburg
Germany
Tel : +49 (0) 1803 677 - 200
(kostenpflichtig / charges apply)
Fax.: +49 (0) 1803 677 - 202
www.osram.com
www.osram.de
40083215470880
4008321547088
Description
A
B
C
DO NOT
USE
D
Installation
L
E
F
E.g. White or Cold White
E.g. Blue or Cold White
E.g. Green or Warm White
E.g. Red or Warm White
PWM
350mA LED
G
H
4
H
J
H
K
max. 100 m
N
a
Color and White LED connections
OUTPUT COLOR WHITE
CH1 R Warm
CH2 G Warm
CH3 B Cold
CH4 W Cold
t = 75°C max
c
A64058A0072
110
Made in Italy by OSRAM
N a
Color and White LED connections
OUTPUT COLOR WHITE
DO NOT CH1 R Warm
USE
CH2 G Warm
CH3 B Cold
CH4 W Cold
t = 75°C max
c
A64058A0072
110
Made in Italy by OSRAM
Purpose and application
The OT EASY 32 CC LED control unit can be used to imple-
ment static and dynamic lighting concepts for RGB, RGB+W
and tunable white LED applications.
Function and operation
The four pulse-width modulated (PWM) 350 mA constant
current channels can be individually controlled. See for the OT
EASY 60 II LED control unit instruction sheet for a complete
function and operation description (www.osram.com/ecg-lms).
OT EASY 32 CC is supported by the EASY Color Control
software, version 1.4 or higher. Software updates are available
at http://www.osram.com/ecg-software.
Connections
The control unit has the following connections:
• Mains connection (A)
• Input for EASY signal (B)
• Input for external pushbutton (C)
• Outputs for connecting LED modules (D)

Safety instructions

The control unit must only be installed and put into operation
by a qualified electrician. The applicable safety regulations and
accident prevention regulations must be observed.
WARNING!
Exposed, live cables or damaged housing.
Danger of electric shock!
• Only work on the control unit when it is de-
energised.
CAUTION!
Destruction of the control unit and other devices
through incorrect mounting!
• Ensure that the external pushbutton is designed
for the mains voltage.
• Do not wire the control and pushbutton lines
with an external voltage, especially not a mains
voltage of 120-240 V.
• Do not exceed the maximum number of connect-
able components.
• Only use the intended infrared receiver types.
Wiring diagram
E Power switch and/or timer switch for mains voltage (optional)
F External pushbutton
G Infrared receiver (or other component)
H Y-connector
J Pushbutton coupler (or other component)
K EASY PC Kit (or other component)
