Installation and operating instructions:

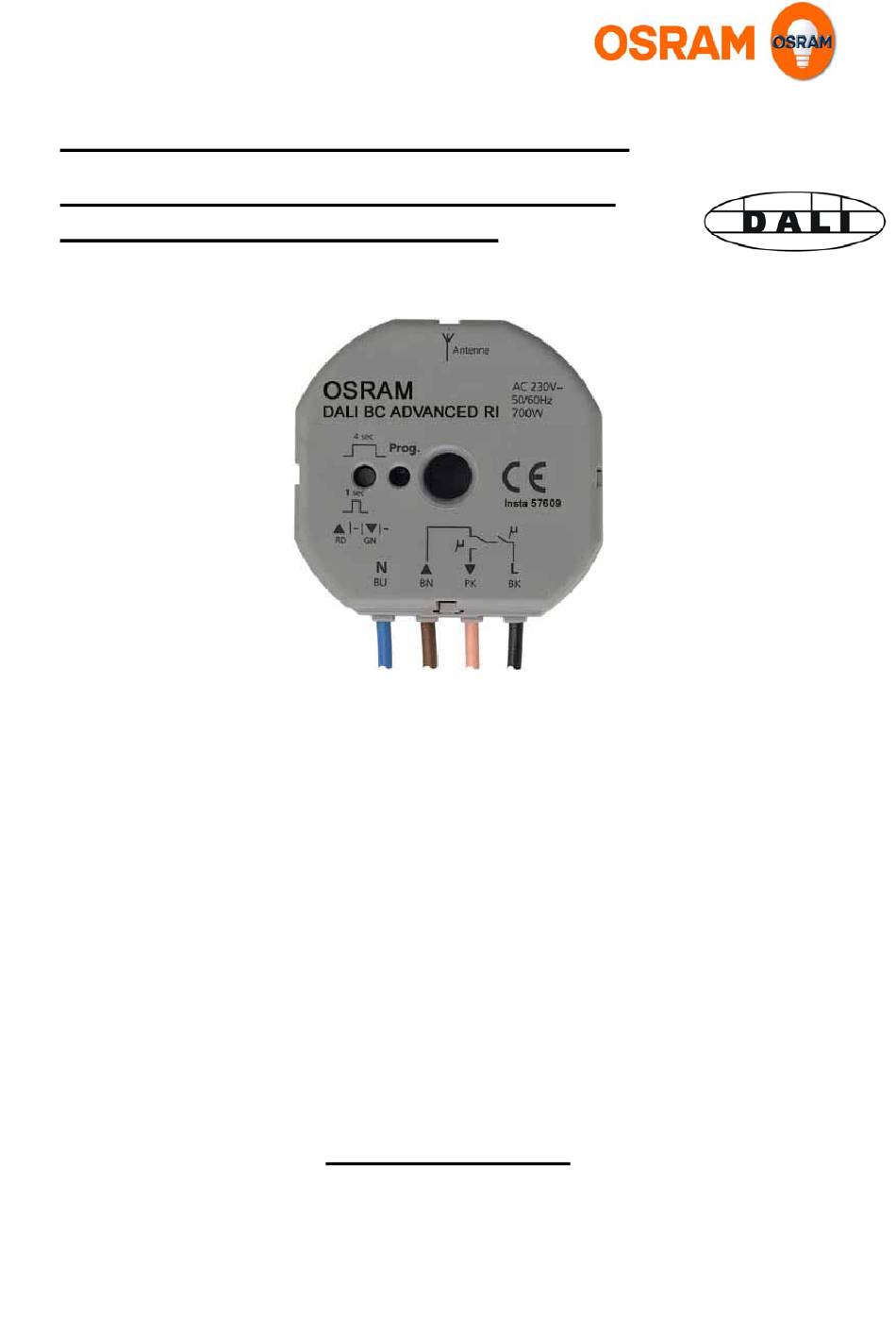

Radio controlled blind control module
Type: DALI BC ADVANCED RI
Customer Service Center (KSC) Germany
OSRAM GmbH
Hellabrunner Str. 1
D-81536 Munich
Tel.: +49 (0) 89 6213 – 0
Fax: +49 (0) 89 6213 – 2020
Albert-Schweitzer-Str. 64
D-81735 Munich
Tel.: +49 (0) 1803 677 – 200
Fax: +49 (0) 1803 677 – 202
www.osram.com
Advertisement
Table of Contents
Related Manuals for Osram DALI BC ADVANCED RI
Summary of Contents for Osram DALI BC ADVANCED RI
- Page 1 Installation and operating instructions: Radio controlled blind control module Type: DALI BC ADVANCED RI OSRAM GmbH Hellabrunner Str. 1 D-81536 Munich Tel.: +49 (0) 89 6213 – 0 Fax: +49 (0) 89 6213 – 2020 Customer Service Center (KSC) Germany Albert-Schweitzer-Str.
-
Page 2: Table Of Contents
4. Deleting a radio transmitter ......... Page 6 5. Lighting scenes ............Page 7 6. Test mode ..............Page 7 7. Notes on radio operation..........Page 7 8. Technical data............. Page 8 Page 2 Installation and operating instructions: Blind Control Unit DALI BC ADVANCED RI... -
Page 3: Function Overview
Operating the louvre blind actuator in a system with a DALI central unit In systems with the OSRAM DALI RC ADVANCED unit, the equipment (such as control gear) is connected to the central unit via a control line. The DALI central unit receives the radio telegrams from the control units (such as the wall-mounted or hand-held transmitter) and reacts according to the programmed functions by sending control commands via the control line to the loads. -
Page 4: Installation
Keep the antenna the minimum prescribed distance away from large metal parts, such as metal door frames. Do not shorten or lengthen the antenna, or strip off the insulation. Page 4 Installation and operating instructions: Blind Control Unit DALI BC ADVANCED RI... -
Page 5: Programming A Radio Transmitter
2. Issue a radio telegram from the selected transmitter (e.g. the hand-held transmitter) by holding down a channel or lighting scene button until the LED lights up permanently to indicate that the louvre blind actuator has acknowledged storage (Fig. E). Installation and operating instructions: Blind Control Unit DALI BC ADVANCED RI Page 5... -
Page 6: Deleting A Radio Transmitter
To avoid this, you should select the lighting scene stored in the DALI central unit by pressing briefly on the appropriate scene button before you start the programming/deletion process in the louvre blind actuator. Page 6 Installation and operating instructions: Blind Control Unit DALI BC ADVANCED RI... -
Page 7: Lighting Scenes
Dry material Penetration Wood, plaster, plasterboard approx. 90 % Brick, MDF approx. 70 % Reinforced concrete approx. 30 % Metal, metal grating, aluminium approx. 10 % cladding Installation and operating instructions: Blind Control Unit DALI BC ADVANCED RI Page 7... -
Page 8: Technical Data
- If used as specified, this device complies with the requirements of the R&TTE directive (1999/5/EU). A complete conformity declaration can be found on the internet at: www.osram.de The louvre blind actuator may be operated in all EU and EFTA states.
