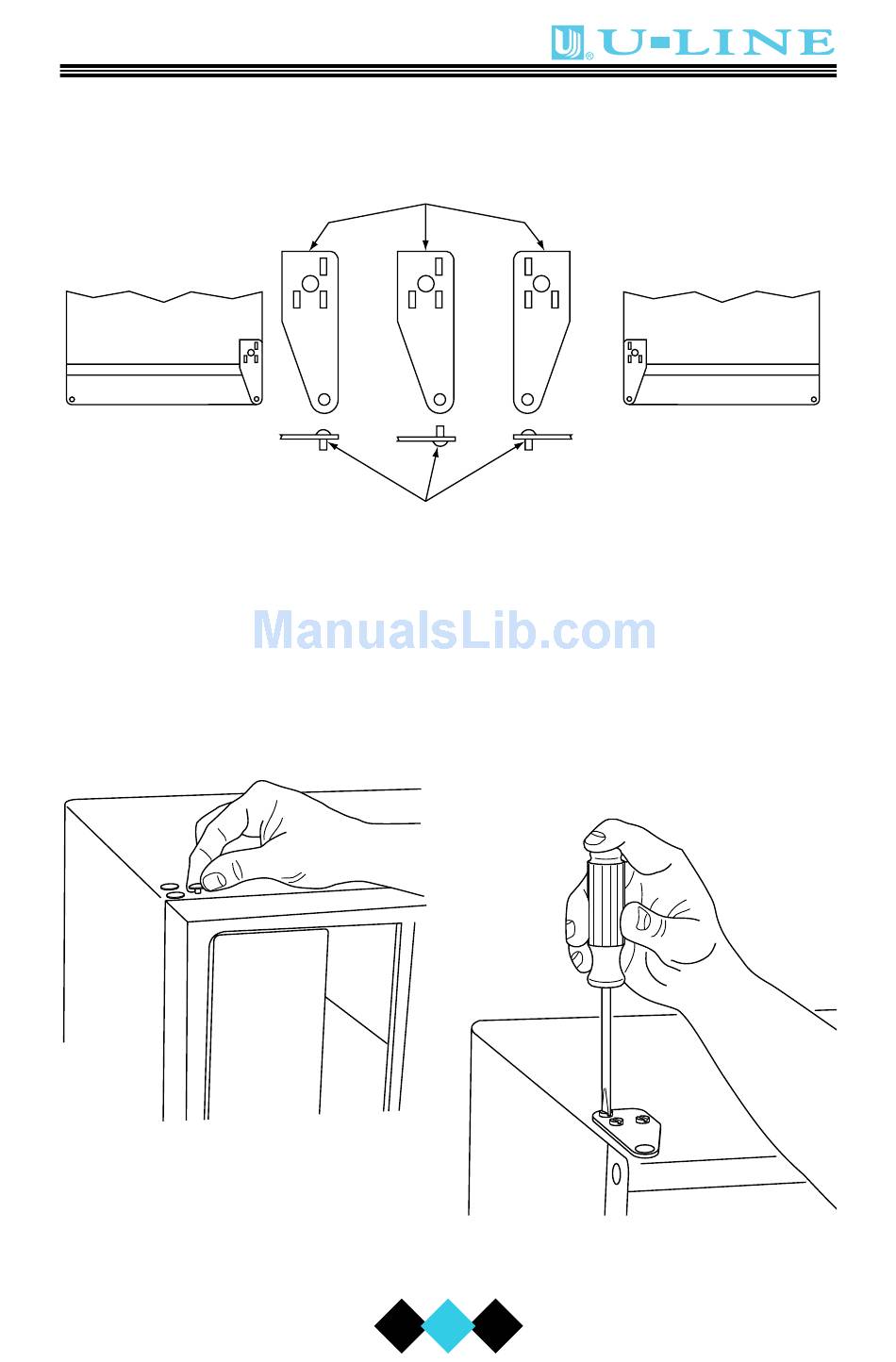

8. Remove pivot screw from top hinge, invert screw and reinstall
pivot screw in top hinge. See Figure 19.
RIGHT SIDE
DOOR SWING
9. Remove three plastic plugs
in hinge holes, top of cabinet,
opposite side. Be careful not
to scratch
Figure 20).
Figure 20
10. Place door on lower hinge
pin. Invert and install upper
hinge on door.
HINGE
SCREW
RIGHT SIDE INVERT
HINGE SCREW
Figure 19
cabinet (see
UL114
13
INVERT
HINGE
11. Fasten upper hinge to unit (3
screws).
screws until door is aligned.
See Figure 21.
Figure 21
LEFT SIDE
DOOR SWING
UL115
Partially tighten
UL119
