50 mm
MAX 2100 mm
MAX 100 mm (4")
MAX 30 kg MAX 58 kg
< 1.8 m
6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0
®

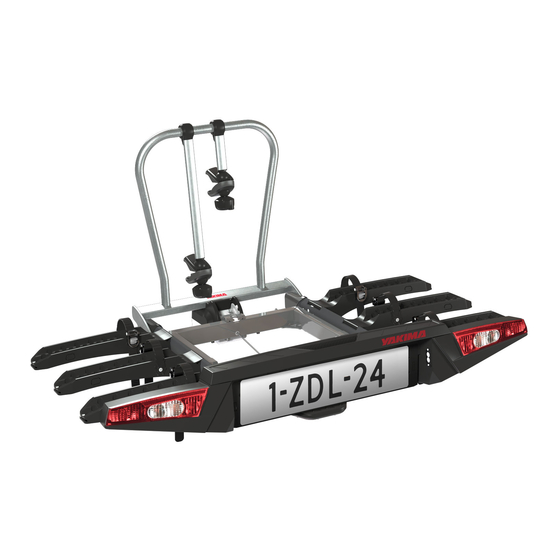

FoldClick 2
=
16.3 kg
50 kg
60 kg
70 kg
80 kg
FoldClick 2
FoldClick 3
FoldClick 3
=
FoldClick
FoldClick
2
33.7 kg
31.0 kg
43.7 kg
41.0 kg
53.7 kg
51.0 kg
63.7 kg
61.0 kg
19.0 kg
3
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FoldClick 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Yakima FoldClick 2

Summary of Contents for Yakima FoldClick 2

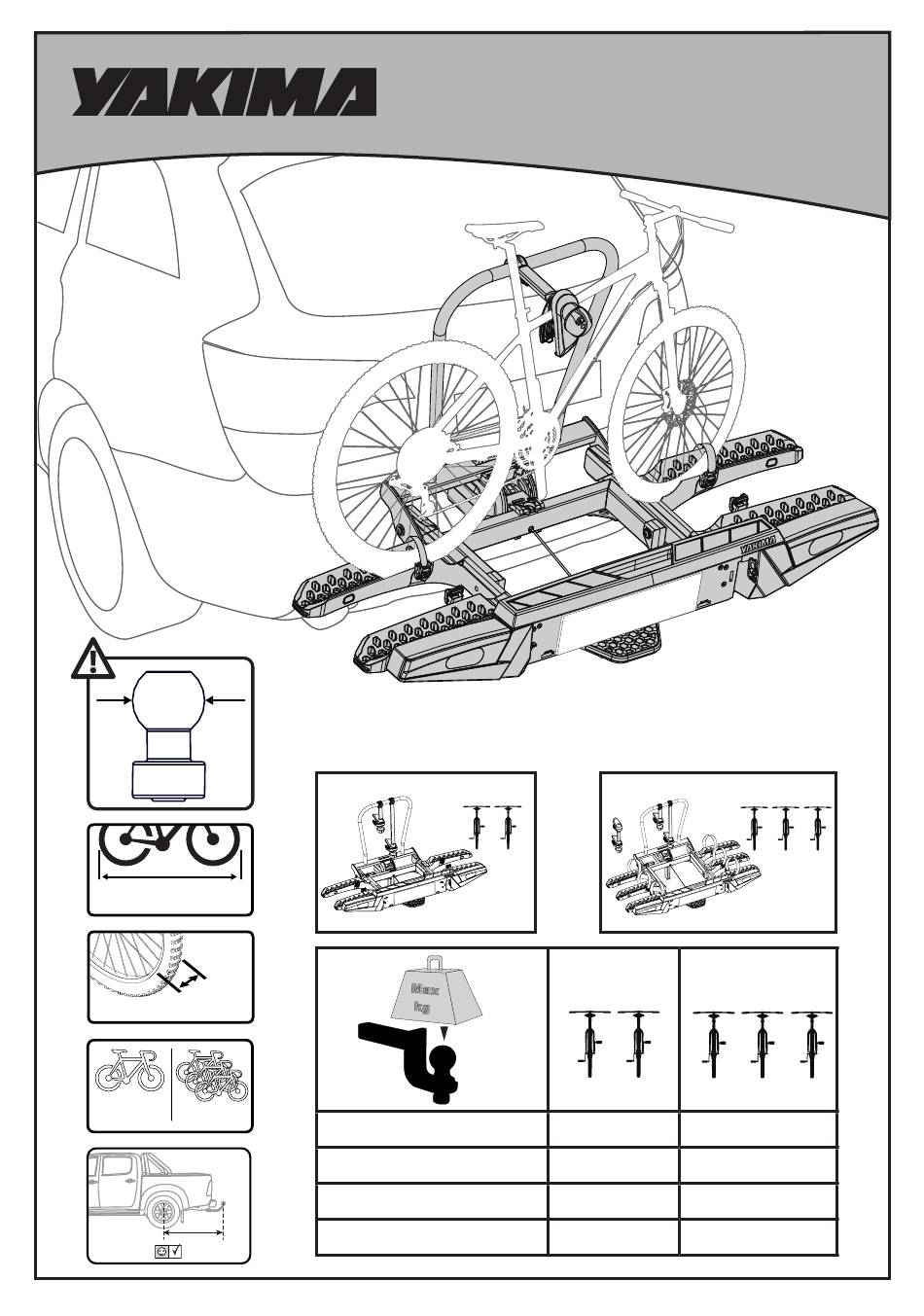

  • Page 1 FoldClick 2 ® FoldClick 3 50 mm FoldClick 2 FoldClick 3 MAX 2100 mm 16.3 kg 19.0 kg FoldClick FoldClick MAX 100 mm (4”) MAX 30 kg MAX 58 kg 50 kg 33.7 kg 31.0 kg 60 kg 43.7 kg 41.0 kg...

  • Page 2: Kit Contents

    KIT CONTENTS ITEM COMPONENT FOLDCLICK 2 FOLDCLICK 3 FoldClick Bike Assembly Bike Frame Grabs Tow Ball 50 mm Number Plate Fasteners Number Plate Spacer Bike Carrier Key Set NOTE - FoldClick 3 pictured for illustrative purposes 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 2/16...

  • Page 3: Troubleshooting

    COMPATIBLE TOW BALLS ≥ 50 MM ≤ 75 MM Tongue width less than 75 mm Height from base to center of ball to be 50 mm+ ≥ 65 MM > 75 MM Tongue width greater than 75 mm Height from base to center of ball to be 65 mm+ ≥...

  • Page 4: Installation

    INSTALLATION INSTALL SUPPLIED TOW BALL PLACE FOLDER CARRIER ONTO TOW BALL Install supplied Tow Ball to your hitch receiver. Ensure the carrier remains folded Tighten to 200 Nm. when placing on tow ball. UNFOLD CARRIER Once the carrier is vertically positioned on the tow ball as pictured, unfold...
  • Page 5 UNFOLD LIGHTS AND WHEEL TRAYS Unfold lights and wheel trays until a “click” is heard. NOTE - Press levers to unfold lights ATTACH NUMBER PLATE Using the supplied Number Plate Spacers and Fasteners secure your number plate to the carrier. Number Plate Spacers must be used to comply with local regulations.
  • Page 6 TILT CARRIER Using one foot on the carrier pedal while holding onto the carrier hoop, press to tilt carrier to gain access to the light plug. CONNECT LIGHT PLUG Connect carrier light plug to your hitch power supply. 7 Pin Plug 12 V 24 V 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0...
  • Page 7 REPOSITION CARRIER Holding onto the carrier hoop, return the carrier to its horizontal position until a “click” is heard. Use caution when opening and closing tailgate. LOCK CARRIER Lock the carrier to tow ball using the keys provided. 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 7/16...
  • Page 8 ATTACH FRAME GRABS Press knob of Frame Grabs to expand frame holders (1) and attach to carrier hoop (2). Attach frame clamp to your bike frame and rotate knob clockwise to secure (3). MIN 22 mm MAX 80 mm 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 8/16...
  • Page 9 MULTI BIKE CONFIGURATION Load heaviest bikes first and lock bikes to carrier. FoldClick 2 FoldClick 3 SECURE BIKE WITH WHEEL STRAPS Secure bikes to carrier using the wheel straps and buckles. 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 9/16...

  • Page 10: Maintenance

    MAINTENANCE Recommended maintenance to be performed at least every 12 months. 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 10/16...
  • Page 11 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 11/16...
  • Page 12 REMOVAL UNLOCK CARRIER Unlock the carrier using the keys provided. DISCONNECT LIGHT PLUG Disconnect carrier light plug from your hitch power supply. 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 12/16...
  • Page 13 FOLD IN LIGHTS AND WHEEL TRAYS Fold in lights and wheel trays until a “click” is heard. NOTE - Press levers to fold in lights FOLD UP CARRIER 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 13/16...
  • Page 14 REMOVE FOLDER CARRIER FROM TOW BALL 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 14/16...

  • Page 15: Safety Instructions

    23. Ensure the load center of the bikes is as low and close to the towball as possible. 24. In order to secure your bike against theft we recommend fastening a belt lock around the bikes’ frames. Yakima is not liable in case of theft of the support and/or the bikes.
  • Page 16 YAKIMA AUSTRALIA PTY. LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 YAKIMA PRODUCTS, INC. 4101 Kruse Way Lake Oswego, OR 97035-2541 888 925 4621 6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 16/16...
