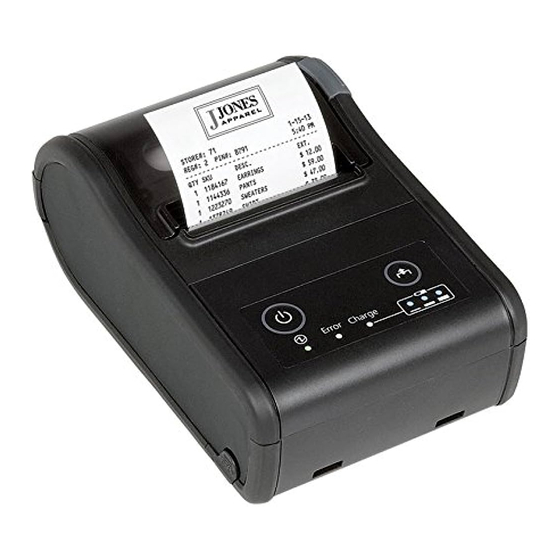

Epson TM-P60II Installation Manual
Installation for windows 7 (32/64bit)
Hide thumbs
Also See for TM-P60II:
- User manual ,
- Technical reference manual (142 pages) ,
- Manual (27 pages)
Related Manuals for Epson TM-P60II
Summary of Contents for Epson TM-P60II
- Page 1 One Blue Hill Plaza, 16th Floor, PO Box 1546 Pearl River, NY 10965 1-800-PC-AMERICA, 1-800-722-6374 (Voice) 845-920-0800 (Fax) 845-920-0880 EPSON TM-P60II Receipt Printer Installation for Windows 7 (32/64BIT) P a g e...
-
Page 2: Table Of Contents
TM-P60 Wireless Thermal Printer Information/Requirements Setting Up the Wireless Printer Resetting the Printer to Factory Default Installing the Epson Ethernet Configuration Utility Configuring the TM-P60 using the EpsonNet Config utility Installing the Epson Printer Driver ... -
Page 3: Tm-P60 Wireless Thermal Printer Information/Requirements
Requirements: 1. An available wireless network: This network must be setup and configured prior to any configuration from pcAmerica. The following network types are supported with the use of the TM-P60II Thermal Receipt Printer: o WPA Encryption (TKIP) 2. Information on the wireless network which you will be connecting the printer to: ... -
Page 4: Setting Up The Wireless Printer
Setting Up the Wireless Printer 1. On the right side of the printer we will need to locate the battery door. 2. Press the lever and open the door. 3. Insert the battery into the compartment. P a g e... - Page 5 4. Plug the power cable into the power brick and the other end of the power cable into a power source (wall outlet). P a g e...
- Page 6 5. Plug the other end of the cable into the port on the left side of the printer. P a g e...
- Page 7 6. Loosen the cover (trident symbol) of the mini USB port located on the top left of the printer. 7. Locate the Mini USB to USB-A cable. P a g e...
- Page 8 9. Attach the USB-A connector (other end of the cable) to an available USB port on your computer. Note: The USB connection is used to configure the TM-P60II wireless connection. The TM-P60II can only be used with CRE/RPE through your WiFi network.
-
Page 9: Resetting The Printer To Factory Default
Resetting the Printer to Factory Default Before doing any configuration on the device we must first reset it back to factory defaults. 1. Press the button on the top right of the printer, to release the paper roll cover. 2. Press and hold the FEED button and press the POWER button, to power on the printer. - Page 10 4. The SELF-TEST page will then be printed. 5. To initialize the printer, open the paper roll cover, press the FEED button 1 time, then close the paper roll cover. 6. Initialize will then print on the receipt paper and the paper roll will then be cut.
-
Page 11: Installing The Epson Ethernet Configuration Utility
Installing the Epson Ethernet Configuration Utility Download the Epson Ethernet configuration utility from the following link: http://download2.pcamerica.com/drivers/EpsonNetConfig_v443.zip 1. Extract the downloaded zip file. Right click or hold down the extracted file EpsonNetConfig_v433.exe and select Run as administrator. (If you are using Windows XP, simply double click on the file.) - Page 12 4. Select I accept the terms of the license agreement. 5. Select Next. 6. Select Next. 12 | P a g e...
- Page 13 7. Select Install. 8. Select Finish. 13 | P a g e...
- Page 14 Configuring the Epson TM-P60 II using the EpsonNet Config utility NOTE: Only one printer should be configured at a time, as all printers have the same settings configured from the factory (i.e. default IP 192.168.192.168). Power on the printer and connect cable to the computer via (mini USB to USB-A Cable).
- Page 15 3. Select Basic under the TCP/IP tab. 4. Select Manual for Method for Specifying IP Address. 5. Assign the IP address, the Subnet mask, and the Default gateway (this information can be obtained by typing ipconfig in a Windows command prompt): ...
- Page 16 13. Select OK. 14. Select OK. 16 | P a g e...
-
Page 17: Installing The Epson Printer Driver
Installing the Epson Printer Driver The printer driver for the device can be downloaded from: http://download2.pcamerica.com/drivers/APD_455dE.zip 1. Extract the downloaded file. Locate and right click on the file named APD_455dE and select Run as administrator. 2. Select Next. 3. Select I accept the terms of the license agreement. - Page 18 5. Select Standard. 6. Select Next. 7. Select Add. 18 | P a g e...
- Page 19 8. Use the dropdown next to Select Driver to select the EPSON TM-P60II Receipt. 9. Optionally enter a Printer name. 10. Use the dropdown next to Port Type to select Create an Ethernet port. 11. Optionally select Set as Default Printer.
- Page 20 15. Select Next. 16. Select Next. 20 | P a g e...
- Page 21 17. Select Finish. 18. Navigate to Control Panel > Hardware and Sound and select View devices and printers. 19. Right click on the EPSON TM-P60II Receipt and select Printer properties. 21 | P a g e...
- Page 22 20. Select Preferences. 21. Go to Document Settings > Paper Source and select Document[NoFeed,NoCut], then select Apply, then OK. 22 | P a g e...
- Page 23 22. Go to the Barcode tab. 23. From the Font Name dropdown box, select Barcdode4, type Code39, then click on Advanced settings. 23 | P a g e...
- Page 24 24. For Element Width type in 2, for Element Height type in 80. Click OK to save your changes. 25. Click Apply then click OK to save all changes. 24 | P a g e...
- Page 25 26. Click OK one last time to exit out of EPSON TM-P60II Receipt Properties. 25 | P a g e...
- Page 26 28. From the Manager/Options screen, go to Setup > Friendly Printer Setup. Under Select Friendly Pinter, highlight Receipt, then under Select Local Windows Printer highlight EPSON TM-P60II Receipt. Place a check in Cut receipt at this station. Finally, under the Printer Type dropdown, select Epson TM-P60 Mobilink Receipt Printer.
- Page 27 Sample Credit Card Receipts (Restaurant and Retail) 27 | P a g e...
