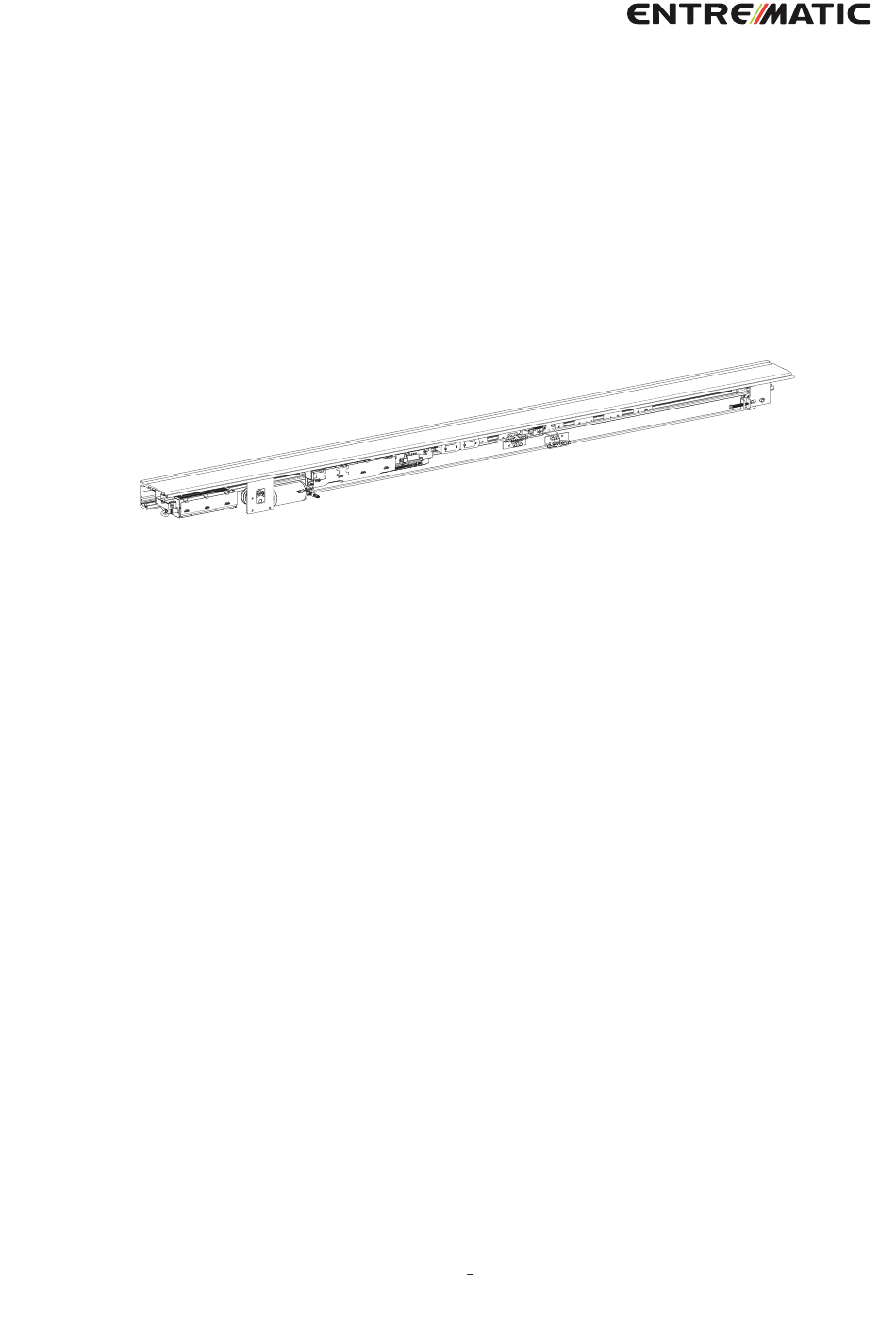

- Page 1 Sliding Door Operator Ditec KS200VA Retrofit Kit Installation Manual Original instructions 1019617-DIen-2.0 Issue 2019-11-12...
- Page 2 © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.
-
Page 3: Table Of Contents
CONTENTS - Original instructions Revision ..................................... Tools required ..................................Mechanical installation ................................ Ditec KS200VA for non-escape route VALOR operator ..................... 3.1.1 Preparing the components ............................3.1.2 Preparing ..................................3.1.3 I/O board ( KS902MPVA) and the battery (KS902BAT2VA / KS901BAT1VA) installation (option) .. - Page 4 Issue 2019-11-12 1019617-DIen-2.0...
-
Page 5: Revision
1 Revision Revision The following pages have been revised: Page Revision 1.0 → 2.0 Updated Screw M6x10 to M6x16. 1019617-DIen-2.0 Issue 2019-11-12... -
Page 6: Tools Required
2 Tools required Tools required • Allen key 6 mm with spherical tip • Torx (T10 and T20) • Phillips screw driver • Multi/Wire cutter • Spanner 10mm • Tape measuring tool Issue 2019-11-12 1019617-DIen-2.0... -
Page 7: Mechanical Installation
3 Mechanical installation Mechanical installation Ditec KS200VA for non-escape route VALOR operator 3.1.1 Preparing the components • Components of KS200VA Drive unit HD assembly MCU assembly PSU assembly 150W Tension wheel assembly Nut: M6MF M6 FZB flange nut Universal transmission bracket Screw: ISO 4017 (M6S-H) M6x16 8.8 FZB... -
Page 8: Preparing
3 Mechanical installation 3.1.2 Preparing Dismount the original drive system, following components should be retained: beam (16), door carriers (17), track (18), bracket (19), lock (20), cover set (22), nuts (23) and screws (24). Note! If there are not enough nuts (23) and screws (24), use the nuts (3) and the screws (4) to re- place. -
Page 9: I/O Board ( Ks902Mpva) And The Battery (Ks902Bat2Va / Ks901Bat1Va) Installation (Option)
3 Mechanical installation 3.1.3 I/O board ( KS902MPVA) and the battery (KS902BAT2VA / KS901BAT1VA) installation (option) a Fix the I/O board (5) and the battery (6) to the beam (16) with the nuts (23) and screws (24). Screw I/O board (KS902MPVA) Battery (KS902BAT2VA / KS901BAT1VA) Beam Nut: M6... -
Page 10: Fix The Main Control Assembly
3 Mechanical installation 3.1.4 Fix the main control assembly a Fix the MCU assembly (9) to the beam (16) with the nuts (23) and screws (24). Screw MCU assembly Beam Nut: M6 Screw: M6x16 Issue 2019-11-12 1019617-DIen-2.0... -
Page 11: Fix The Drive Unit Assembly
3 Mechanical installation 3.1.5 Fix the drive unit assembly a Fix the drive unit HD assembly (1) to the beam (16) with the nuts (23) and screws (24). Screw Drive unit HD assembly Beam Nut: M6 Screw: M6x16 1019617-DIen-2.0 Issue 2019-11-12... -
Page 12: Fix The Power Supply Assembly
3 Mechanical installation 3.1.6 Fix the power supply assembly a Fix the PSU assembly (2) to the beam (16) with the nuts (23) and screws (24). Screw PSU assembly Beam Nut: M6 Screw: M6x16 Issue 2019-11-12 1019617-DIen-2.0... -
Page 13: Fix The Tension Wheel Assembly
3 Mechanical installation 3.1.7 Fix the tension wheel assembly a Fix the tension wheel assembly (10) to the beam (16) with the nuts (23) and screws (24), do not tighten the nuts (23) fully, so it shall be able to slide along the beam (16). b The position of the tension wheel assembly (10) should be as close as possible to the drive unit, but make sure that the tension wheel assembly (10) will not interfere with the door carrier when the door is fully opened. -
Page 14: Fix The Universal Transmission Brackets
3 Mechanical installation 3.1.8 Fix the universal transmission brackets a Fix the Z brackets (13) and the universal transmission brackets (11) to the door carriers (25) with the screws (14). Note! The door leaves should be holded firmly when unscrew the screws (14) on the door car- riers (25). -
Page 15: Placement Of The Transmission Brackets
3 Mechanical installation 3.1.9 Placement of the transmission brackets Bi-parting opening The transmission bracket (26) on the left door leaf shall be connected to the upper belt. The transmission bracket (26) on the right door leaf shall be connected to the lower belt. Transmission bracket Single left opening The transmission bracket (26) shall be connected to the upper belt. - Page 16 3 Mechanical installation Single right opening The transmission bracket (26) shall be connected to the lower belt. Transmission bracket Issue 2019-11-12 1019617-DIen-2.0...
-
Page 17: Attachment Of The Tooth Belt
3 Mechanical installation 3.1.10 Attachment of the tooth belt a Cut the tooth belt (7) to the right length if needed. Route the tooth belt (7) around the drive unit pulley (27) and around the tension wheel (31). b For bi-parting doors the belt ends are joined with the belt clamp (12) in the lower part of the tooth belt (7). -
Page 18: Checking And Adjusting The Belt Tension
3 Mechanical installation 3.1.11 Checking and adjusting the belt tension a Loosen the fixing screw (30) without removing it. b Screw the adjustment screw (28) to its outmost position. c Tension the tooth belt (7) by pulling the tension wheel assembly (10) by hand. Tighten the nuts (23) with a torque of 10 Nm. -
Page 19: Bi-Parting Operators
3 Mechanical installation 3.1.12 Bi-parting operators a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (12) into position in the upper transmission bracket (26). c Check door panels for proper centering in the fully closed and opened positions. -
Page 20: Attachment Of Slack Reducer
In all other cases, then above, there will not be any slack reducers in the operator. For electrical connection, start up and parameter setting, please refer to DAS200 Installation Manual using the following QR code. https://www.ditecentrematic.com/Entrematic/ditecentrematicCOM/QR/Multilan- guages/DAS200/DitecDAS200.pdf Issue 2019-11-12 1019617-DIen-2.0... - Page 22 Entrematic Group AB, Lodjursgatan 10, SE-261 44 Landskrona, Sweden www.entrematic.com...
