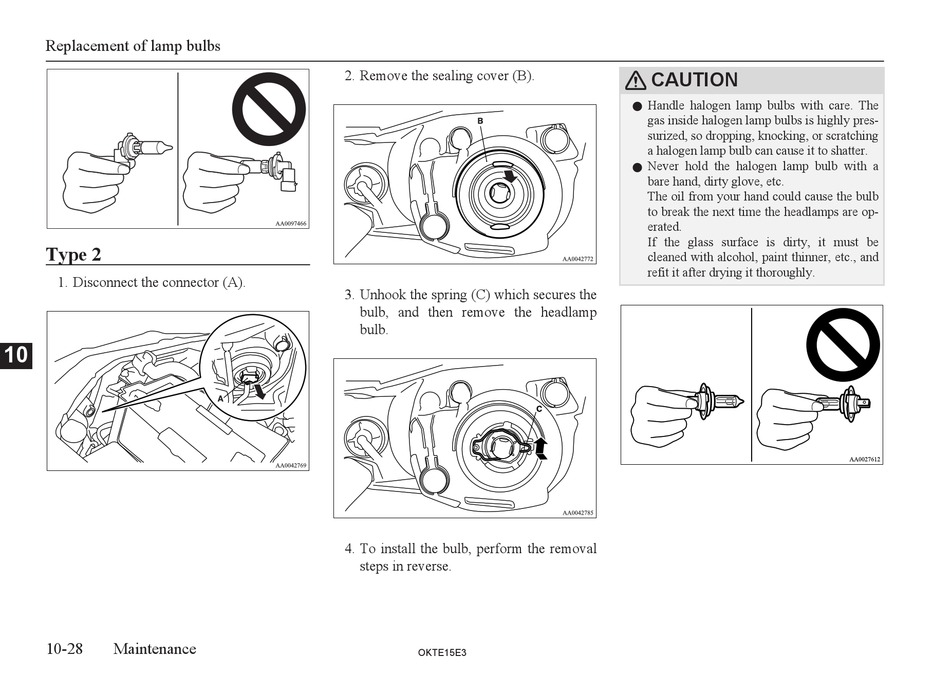

Replacement of lamp bulbs
Type 2
1. Disconnect the connector (A).
10
10-28 Maintenance
2. Remove the sealing cover (B).
3. Unhook the spring (C) which secures the
bulb, and then remove the headlamp
bulb.
4. To install the bulb, perform the removal
steps in reverse.
OKTE15E3
CAUTION
l
Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres-
surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb
to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.
