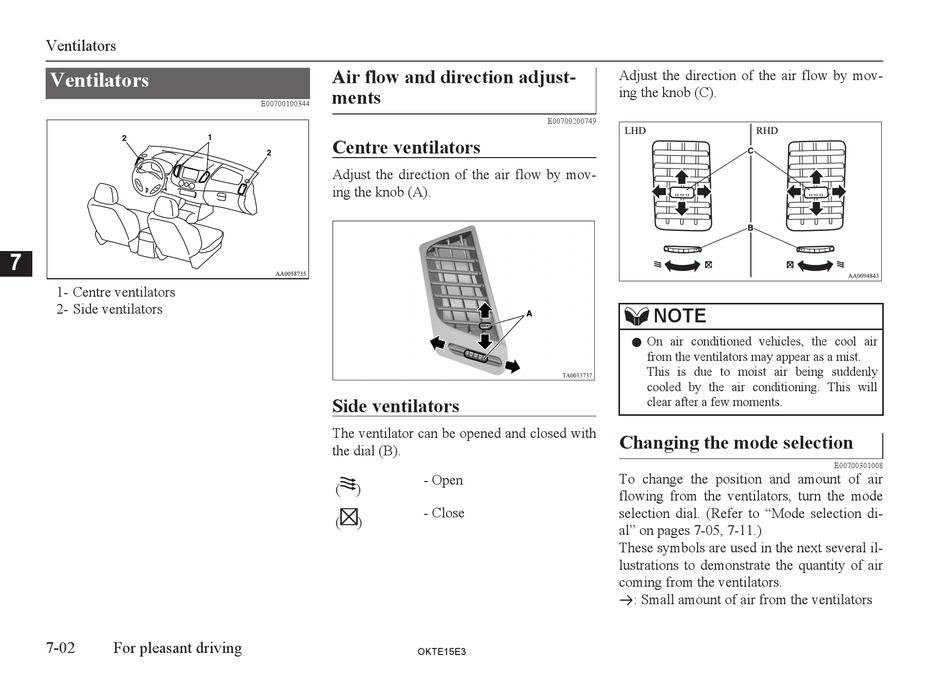

Ventilators

Ventilators
7
1- Centre ventilators
2- Side ventilators
7-02 For pleasant driving
Air flow and direction adjust-
ments
E00700100344
Centre ventilators
Adjust the direction of the air flow by mov-
ing the knob (A).
Side ventilators
The ventilator can be opened and closed with
the dial (B).
- Open
( )
- Close
( )
OKTE15E3
Adjust the direction of the air flow by mov-
ing the knob (C).
E00700200749
LHD
NOTE
l On air conditioned vehicles, the cool air
from the ventilators may appear as a mist.
This is due to moist air being suddenly
cooled by the air conditioning. This will
clear after a few moments.
Changing the mode selection
To change the position and amount of air
flowing from the ventilators, turn the mode
selection dial. (Refer to "Mode selection di-
al" on pages 7-05, 7-11.)
These symbols are used in the next several il-
lustrations to demonstrate the quantity of air
coming from the ventilators.
: Small amount of air from the ventilators
RHD
E00700301008
