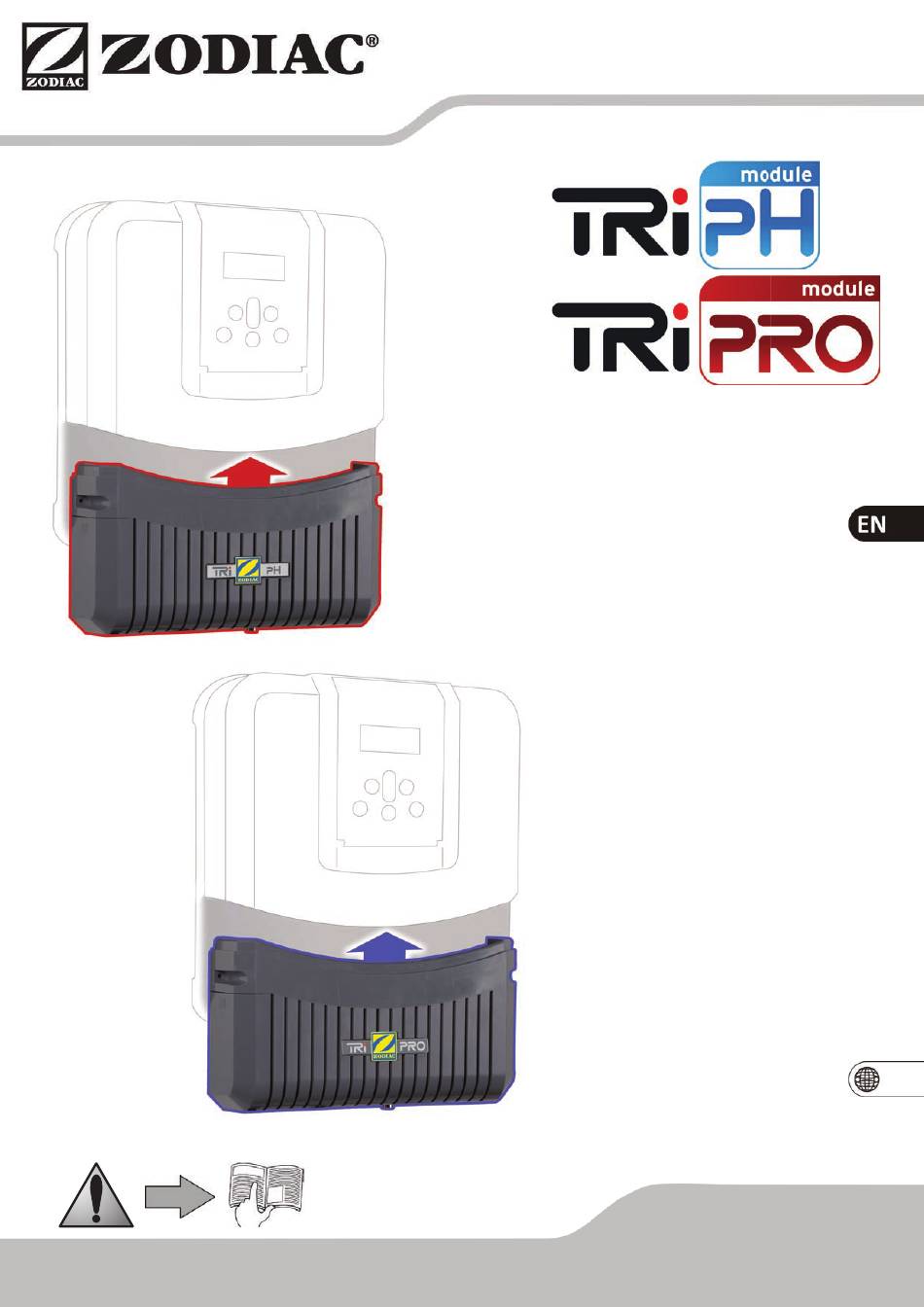

- Page 1 Instructi ons for installati on and use English More languages on: www.zodiac-poolcare.com H00412500.A - 2013/02...
- Page 2 • Read these instructions carefully before undertaking installation, maintenance or repair of this equip- ment! • The symbol identifies important information that must be acted upon to avoid any risk of harming some- one or damaging the equipment. • The symbol identifies helpful information, for information only.
-
Page 3: Table Of Contents
Contents 1. Information before installation ....................3 1.1 General delivery conditions ........................3 1.2 Contents ................................ 3 1.3 Technical specifications ..........................3 2. Installation ..............................4 2.1 Preparing the pool: water balance ....................... 4 2.2 Installing the TRi pH or TRi PRO module ..................... -
Page 4: Information Before Installation
(and con- firmed in writing to the carrier by registered letter). 1.2 Contents 1.2.1 TRi pH module TRi pH module pH sensor Buffer solution pH 7.5... -
Page 5: Installation
The TRi is designed to disinfect the water in the pool by means of its salt chlorination function. With the TRi pH module, it automatically maintains the pH value of your pool. With the TRi PRO module, it automatically maintains the pH value and chlorine level (ACL or Redox potential) of your pool. -
Page 6: Installing The Tri Ph Or Tri Pro Module
2.2 Installing the TRi pH or TRi PRO module • Turn off your Zodiac TRi salt chlorina- tor and then filtration by cutting off the main electricity supply in order to iso- late the installation. • Close the isolating valves in the pipe- work. - Page 7 • Identify a suitable length (minimum 30 cm, without elbow) of straight pipe. • Dismantle the POD and keep the lower part with 2 holes, • Turn the lower part of the collar upside down and place it in the position where you want to install it on the pipe.
-
Page 8: Use
3.1 Activating the module The Zodiac TRi power pack automatically detects the presence of a TRi pH or TRi PRO module. It is now ready to be used with automatic pH control using the TRi pH module or pH and ACL control using the TRi PRO module. -
Page 9: Calibrating The Sensor(S)
- TRi PRO module: pH set point ACL set point A '^' symbol appears to the right of the set point if the value measured by the equipment needs to be corrected automati- cally (pH of water in the pool higher than the set point and/or insufficient chlorine level). Then pH minus is injected and/ or chlorine produced automatically according to the defined cycles. -
Page 10: Setting The Pool Volume
• Calibrating the sensors (see § 3.3). • Press , then use the keys to display 'CALIB. PH' or 'CALIB. PH/ACL', then press • Use the keys to display 'PH SET POINT' or 'ACL SET POINT', then press • Use the keys to change the set point value. -
Page 11: Maintenance
To prime the peristaltic pump more quickly, it may be necessary to repeat these steps several times, depending on the length of the pH minus feed line. 3.6.2 Activating / deactivating the peristaltic pump For safety reasons the peristaltic pump is not activated when delivered. When the TRi pH or TRi PRO module is connected to the TRi power pack, the peristaltic pump is programmed to start ap- proximately about 8 hours after being turned on. -
Page 12: Product Registration
Other codes are only information messages that disappear by themselves when operating conditions return to optimum values. 6. Product registration Register your product on our Internet site: be the first to find out about new Zodiac products and promotions, help us continue to improve the quality of our products. Australia – New Zealand www.zodiac.com.au Europe, South Africa &... - Page 13 TRi18, TRi22, TRi35 TRi part numbers : W382500, W382510, W382530, W382540 Zodiac TRi series - Modules TRi module Product name ; TRi pH Module, TRi Pro Module TRi module part numbers : W197525 & W197515 Ray Hin Daryl White Engineering Manager...
- Page 14 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
