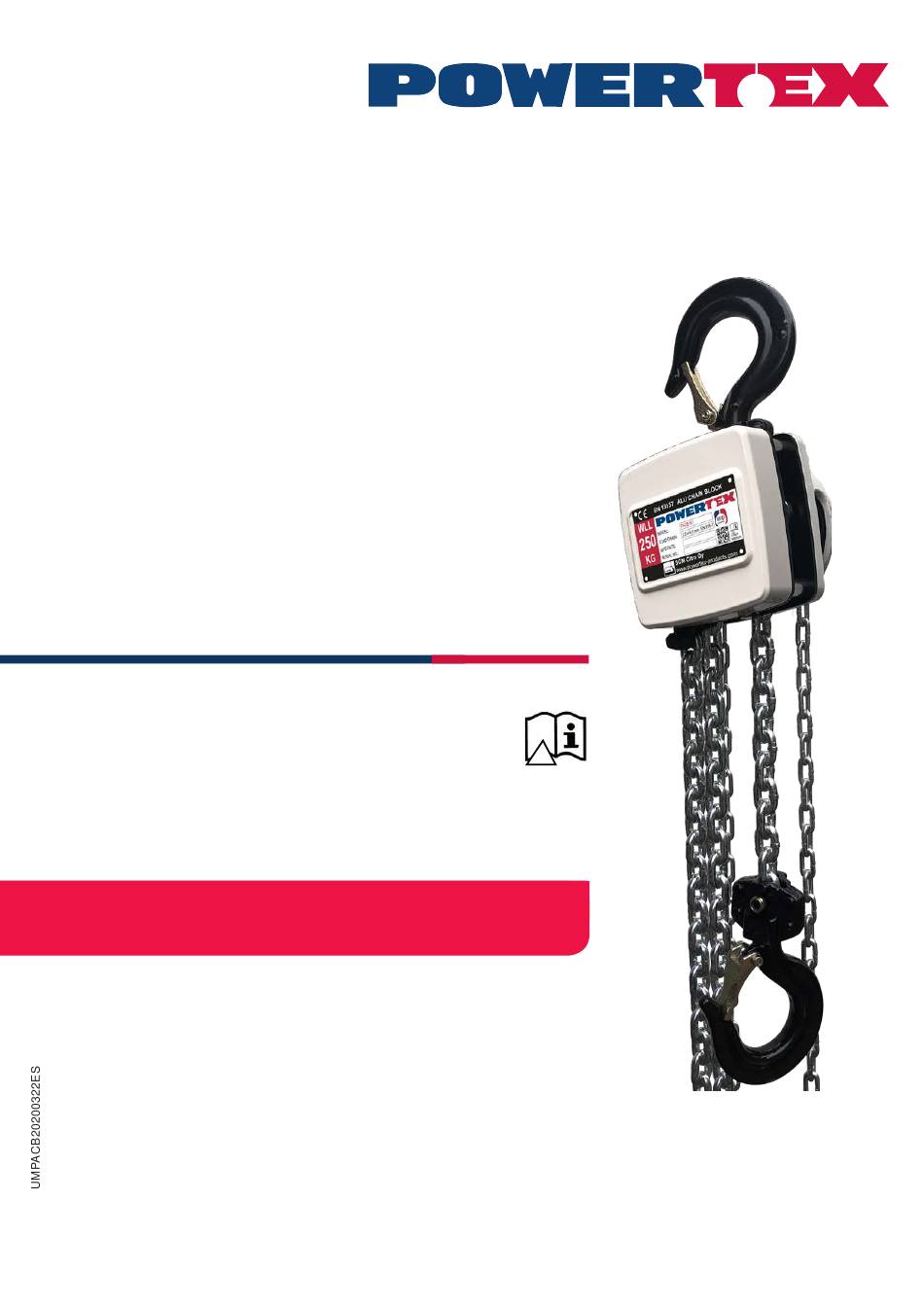

- Page 1 GB Instruction for use Instrucciones de uso POWERTEX Aluminum Chain Block PACB-S1 User Manual...
- Page 2 POWERTEX Chain Block PACB-S1 0,25 – 3 ton Instruction for use (GB) (Original instructions) Read through these user instructions carefully before using the chain block. Improper operation may lead to hazardous situations! General safety provisions • Only to be used by trained operator.
- Page 3 Function The load hook is raised or lowered by pulling on the hand chain. The load will remain where it is even when the hand chain is released because of the effective reaction brake. Suspension of chain block Suspend the block from an eye, shackle, girder trolley etc. with sufficient load capacity. With the chain tightened, both hooks must be vertically aligned.
- Page 4 Checks on load hook (see Fig. 4 and Table 1) Opening dimension E on the hooks is important. A hook with too large a maximum dimension has been exposed to overloading or overheating. It therefore does not have the necessary load capacity.
- Page 5 Repairs The chain block must not be modified. Repairs must be carried out by specialists. Damaged parts must only be replaced with original Powertex spare parts. Order them through your dealer. Checklist for periodic checks (normally yearly – more frequently if necessary)
-
Page 6: Especificaciones Técnicas
POWERTEX Polipasto de cadena PACB-S1 0,25 – 3 toneladas Instrucciones de uso (ES) Lea estas instrucciones de usuario atentamente antes de utilizar el polipasto de cadena. ¡Un uso inadecuado puede provocar situaciones peli- grosas! Indicaciones generales de seguridad • Solo ser utilizado por un operario entrenado. - Page 7 Funcionamiento El gancho de carga se sube o baja tirando de la cadena manual. La carga se quedará donde está aunque se suelte la cadena manual debido al freno de reacción efectiva. Suspender el polipasto de cadena Suspenda el cuadernal por una argolla, eslabón, carretilla de viga, etc. con suficiente capacidad de carga. Con la cadena tensa, ambos ganchos deben estar alineados verticalmente.
- Page 8 Comprobaciones periódicas Las comprobaciones periódicas se suelen efectuar anualmente para detectar y solucionar posibles fallos. Si fuera necesario (p. ej. alta frecuen- cia de uso), se podrían realizar comprobaciones con mayor frecuencia. Ver «Lista de verificación para comprobaciones periódicas». Medir los ganchos y la cadena para detectar posibles cambios en su forma.
- Page 9 El polipasto de cadena no debe modificarse. Las reparaciones deberán realizarlas especialistas. Las piezas dañadas deben sustituirse única- mente por piezas de recambio Powertex originales. Encárgarlas a través de su distribuidor. Lista de verificación para comprobaciones periódicas (por lo general, anuales - aunque pueden ser más frecuentes si fuera necesario) Método de inspección...
- Page 10 POWERTEX Chain Block PACB-S1 – Spare parts 0,25 - 3 t When ordering spare parts, specify model, WLL, part number and the quantity needed. When ordering chain, also specify lifting height. If the load chain has been damaged or worn out the load sheave probably has to be replaced.
- Page 11 Spare parts list 0,25 t Pos Description Qty. 250 kg 500 kg 1000 kg 2000 kg 3000kg Warning tag 16.10PACBS10250-1 16.10PACBS10500-1 16.10PACBS11000-1 16.10PACBS12000-1 16.10PACBS13000-1 Screw and washer 16.10PACBS10250-2 16.10PACBS10500-2 16.10PACBS11000-2 16.10PACBS12000-2 16.10PACBS13000-2 Hand wheel cover 16.10PACBS10250-3 16.10PACBS10500-3 16.10PACBS11000-3 16.10PACBS12000-3 16.10PACBS13000-3 Lock nut 16.10PACBS10250-4 16.10PACBS10500-4...
-
Page 13: Warning Tag
Standard: EN 13157 Warning tag The warning tag shows some specific and important situations, in which you must pay special attention, when using POWERTEX Chain Blocks and Lever Hoists. User Manuals You can always find the valid and updated User Manuals on the web. - Page 14 Canary Islands www.powertex-products.com...
