Summary of Contents for aventon LEVEL 2020

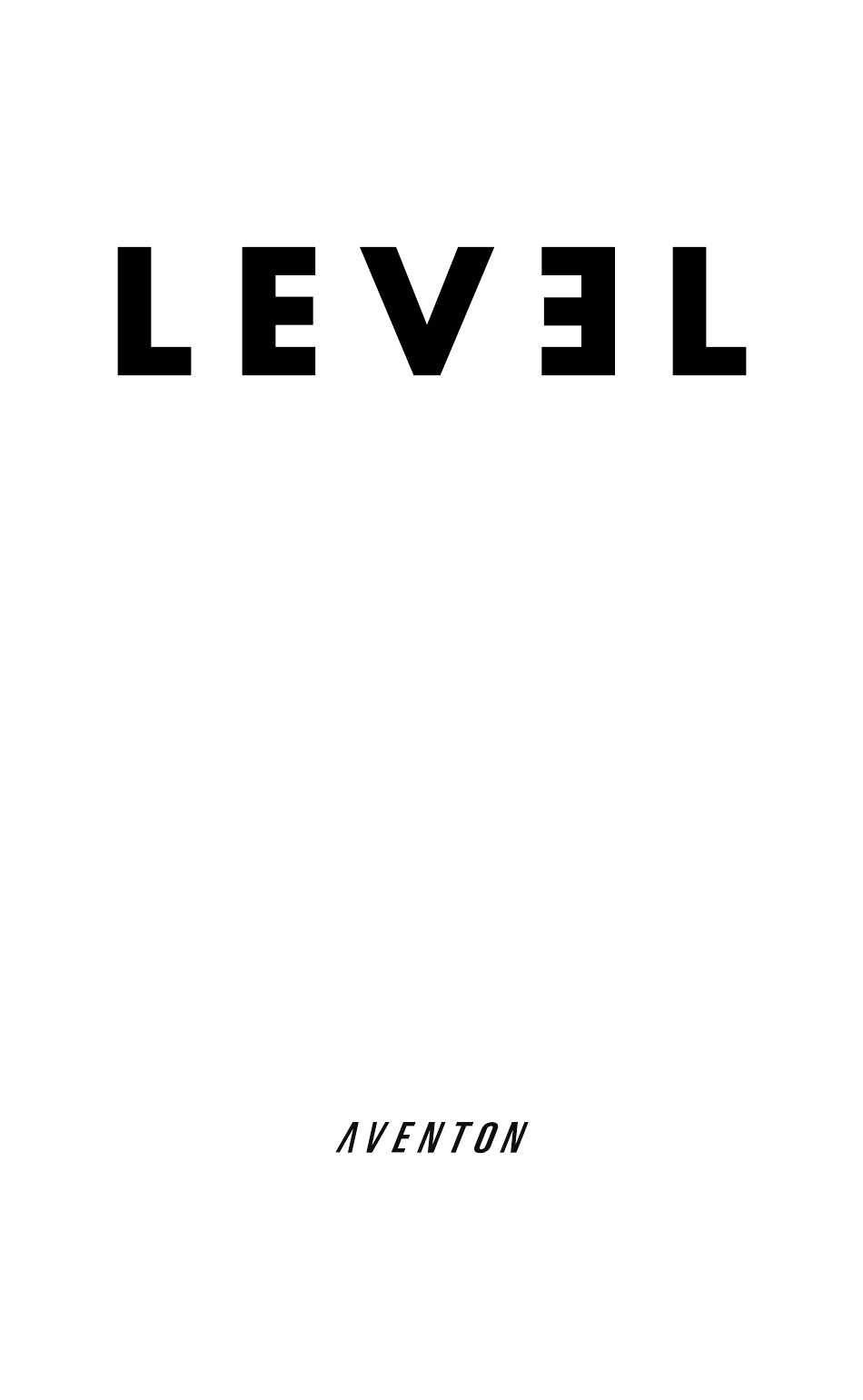

- Page 1 LEVEL OWNER’S MANUAL...
- Page 2 Velofix, or Velotooler to assemble the bike for you. We recommend Aventon Elite bike shops, you can find that list on our website, but any qualified bike shop can help.
-
Page 3: Table Of Contents
CONTENTS Display / Control Specifications Getting Started What’s on the Display? Using the Controls Customizing the Display • Function 01P Backlight Brightness • Function 02P Unit of Measure • Function 03P Battery Voltage • Function 04P Wheel Size • Function 05P Speed Limit Battery and Charging Adjusting the Suspension Fork... -
Page 4: Display / Control Specifications
DISPLAY / CONTROL SPECIFICATIONS • 48 Volt Power Supply • Current Rated: 10mA • Maximum Operating Current: 30mA • Power Off Leakage Current < 1uA • Operating Current to Controller: 50mA • Operating Temperature: -18º to 65ºC • Storage Temperature: -30º to 80ºC Display Panel (Side View) Control Pad... -
Page 5: Getting Started
GETTING STARTED The Level is operated using the control pad on the handlebars. The control pad is located near the left-hand brake lever. Press and hold the “M” button on the handlebar controls to turn on the display. Now, your e-bike is ready to ride. To turn off, press and hold “M”... -
Page 6: What's On The Display
WHAT’S ON THE DISPLAY While you are riding, you can use the display to monitor your speed, the amount of pedal assist, battery life remaining, and other data. As shown below, your Level uses a LCD display screen that looks like this: BATTERY LEVEL INDICATOR (Displays Battery Charge Level) -
Page 7: Using The Controls
USING THE CONTROLS To turn on your bike, press and hold the “M” button for 3 seconds. To turn off, press and hold the “M” button for 3 seconds. The display and battery have an energy-saving feature, if there is no activity for 10 minutes, they will turn off automatically to preserve battery life. -
Page 8: Customizing The Display
CUSTOMIZING THE DISPLAY You can use the settings features of the display to customize the Level for your use. To enter the “Settings” mode, hold the “U” and “D” buttons at the same time for 2 seconds. You can customize 4 out of the 5 different functions on the display. -
Page 9: Function 04P Wheel Size
FUNCTION 04P - WHEEL SIZE This function can be used to change the wheel size to 16, 18, 20, 22, 24, 26, 27.5, or 28” wheels. The Level comes stock with 27.5” wheels, which is the default and recommended setting. Note: Selecting the incorrect wheel size will affect the accuracy of the bike’s speed, the odometer, and the functionality of its pedal assist. -
Page 10: Battery And Charging
After many charging and discharge cycles, runtime and range will be reduced. Replacement batteries are available from Aventon to extend the life of your ebike. The lifespan of the battery is about 500 charge / discharge cycles. - Page 11 moves - it should be firmly attached. LEVEL OWNER’S MANUAL...
-
Page 12: Adjusting The Suspension Fork
ADJUSTING THE SUSPENSION FORK Level features a Suntour Mobie suspension fork to help you ride with more comfort and control. The fork features two adjustments to fine-tune its performance. You can use these adjustments to suit various rider weights and riding styles. PRELOAD ADJUSTMENT You can find the preload adjustment knob on the top of the left (from the rider’s perspective) side of the fork crown. -
Page 13: Maintenance And Service
Before assembling your bike, please watch the “How To Assemble” video we’ve prepared for you. If you have questions during the assembly process, please contact Aventon at (866) 300-3311 or email info@aventon.com. Once you’re up and running, please make sure to: •... -
Page 14: Safety
Additionally, some jurisdictions require helmet use when riding Class III ebikes like the Level. You should comply with local law when riding your Aventon bicycle. Your Level comes with reflectors and we encourage you to install and use them. Reflectors are not a substitute for lights, which are not included with your bicycle. -
Page 15: Safe Starting & Stopping
The motor interrupt brake levers on Aventon ebikes stop the motor from running when they are squeezed. This adds an additional measure of safety - when you are sitting on, or straddling the bike, but not moving, (for example, when stopped at a stoplight) get into the habit of squeezing the brake levers. - Page 16 motor while parking. Never leave your ebike powered on when parking, hanging from a hook in the garage, or while loading your ebike onto a car or truck rack for transport. If your ebike ever needs repairs or maintenance (for example: to fix a flat tire) always completely power down the ebike before starting work.
-
Page 17: Error Codes And Troubleshooting
Current for damage or wear and tear on the Error connectors. 2. If a second Aventon compatible ebike Current Limit Exceeded is present, connect the motor to a known-good working controller see if Damaged Cable motor works correctly. - Page 18 Check the cable that connects the rear hub motor to the rest of the system and make sure it is free from grit or contaminants and is firmly connected. Motor Phase This error might appear if you don’t Error reconnect the cable after removing the rear wheel (for example, after Damaged Motor Phase(s)
- Page 19 Motor Lock Remove the bike from the obstacle, Protection power off, and power on again to resume riding. Hub Motor Encounters Resistance The voltage supplied by the battery is too low to operate the bike. Charge the battery and try again. If the issue Voltage persists, check the voltage output on the battery terminals using a volt meter.
- Page 20 Use the display to view the real-time Battery Voltage voltage being output from the battery Error to confirm it is correct. It can also be checked at the battery terminals using Low Voltage from Battery a volt meter. If the battery is old and has been charged/discharged many times, it Wrong Battery may need to be replaced.
- Page 21 It’s actually designed to fail, sparing the more expensive frame, and is inexpensively replaceable for this reason. If you need more, they are available on Aventon. com or at partner bike shops. 4. If your bike powers up normally and shows no error...
-
Page 22: Battery Troubleshooting
BATTERY TROUBLESHOOTING Your ebike battery uses several sophisticated monitoring systems to prevent damage from overcharging, overheating, deep battery discharge, charging with the wrong voltage, and other errors. Please use the specific charger supplied with your bike. Other chargers may not supply the correct voltage required for charging. - Page 23 6. Allow the battery to charge overnight. 7. Once charged, remove from wall power and check for proper operation. Under specific circumstances you might see one single LED flashing constantly on the battery. One blinking LED is a warning of excessive strain on the battery for its charge level. To correct this issue: •...
-
Page 24: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS • Do the components of the Level and Pace ebikes interchange? Some components interchange across the line of Aventon ebikes, like saddles, handlebars, and grips. The ebike-specific components, however, like batteries, controllers, displays, and motor do not interchange. - Page 25 • How many times can I recharge my ebike battery? Lithium-Ion ebike batteries use a similar technology to your laptop or mobile phone. They can absorb about 500 charging cycles before performance starts to degrade. Afterwards, they can continue to be recharged, however, their capacity will decrease.
- Page 26 To calculate the capacity, multiply the voltage (V) used on the bike by the Ampere-Hour (Ah) rating. For the Aventon Level, for example, multiply 48V by 14Ah = 672Wh. More Watt-Hours equals more range for your ebike.
-
Page 27: Notes
NOTES LEVEL OWNER’S MANUAL...
