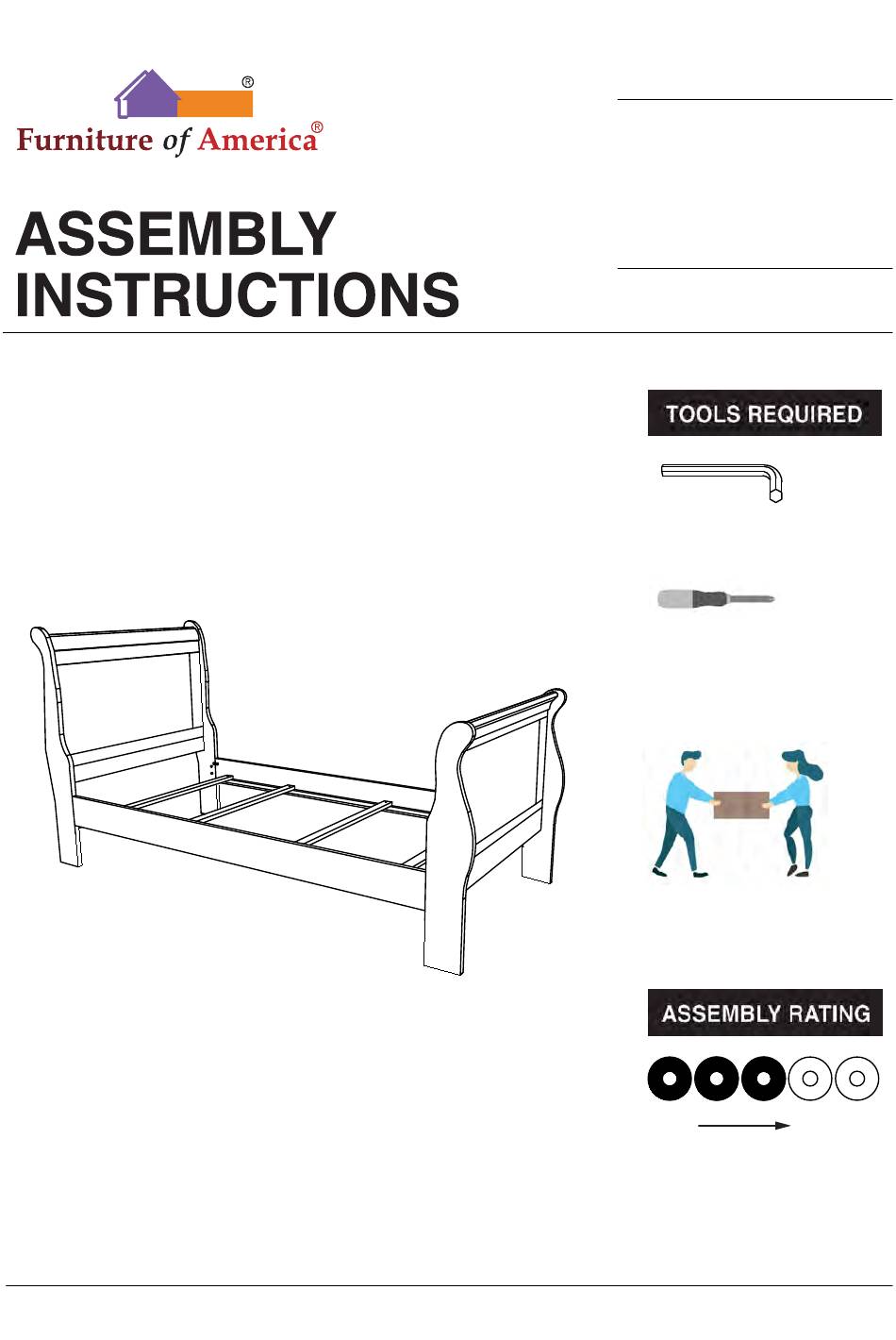

VERSION # 21-04-14
1 / 8
MODEL #
CM7966-T
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7966-T
Summary of Contents for Furniture of America CM7966-T
- Page 1 MODEL # CM7966-T Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...

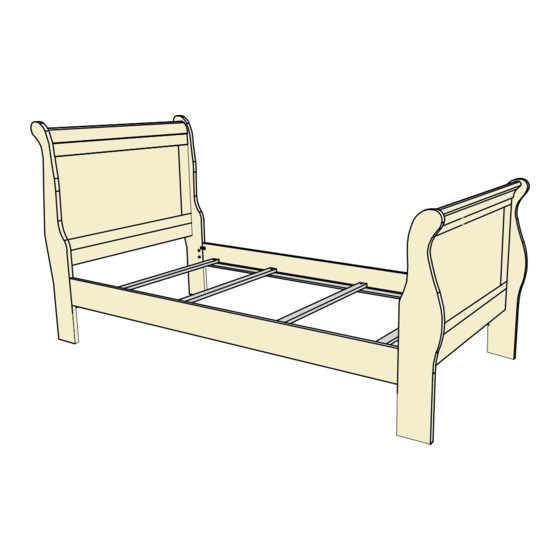

- Page 5 TWIN BED CM7966-T Headboard Footboard Headboard Leg(L&R) Footboard Leg(L&R) Side Rail Bed Slat 1830x140x18mm 1007x45x18mm 4pcs 4pcs 8pcs 8pcs 8pcs Bolt Wood Screw Bolt 1/4" x 1 3/8" Wood Dowel Flat Washer M6 Lock Washer M6 5/16" x 1 9/16"...
-
Page 6: Side Rail
CM7966-T is packed in 2 cartons Carton Designation Part Hardware Twin Size #A x 4pcs Bed HB #B x 4pcs Twin Size Bed FB #C x 8pcs #D x 8pcs CM7966-T Headboard -HBFB #E x 8pcs Footboard #F x 1pc... - Page 7 ASSEMBLY INSTRUCTIONS Align the headboard legs (#3) to headboard panel 2) Align HB legs (#3) to the headboard (#1), then 1) Insert dowels (#A) to the (#1),then secure by using bolts (#B,C) secure by using bolts (#C) with washers (#D,E). headboard (#1) Part with washers (#D,E).
- Page 8 ASSEMBLY INSTRUCTIONS 1) Align and hook the side rails (#5) to the headboard and footboard, then using a rubber mallet with cloth to apply Part #5 x2pcs pressure on the side rails (#5) to be fully secured. Part #6 x4pcs Hardware #H x8pcs Hardware...
