6.3 Hard-mounting the CSL Elite Wheel Base +

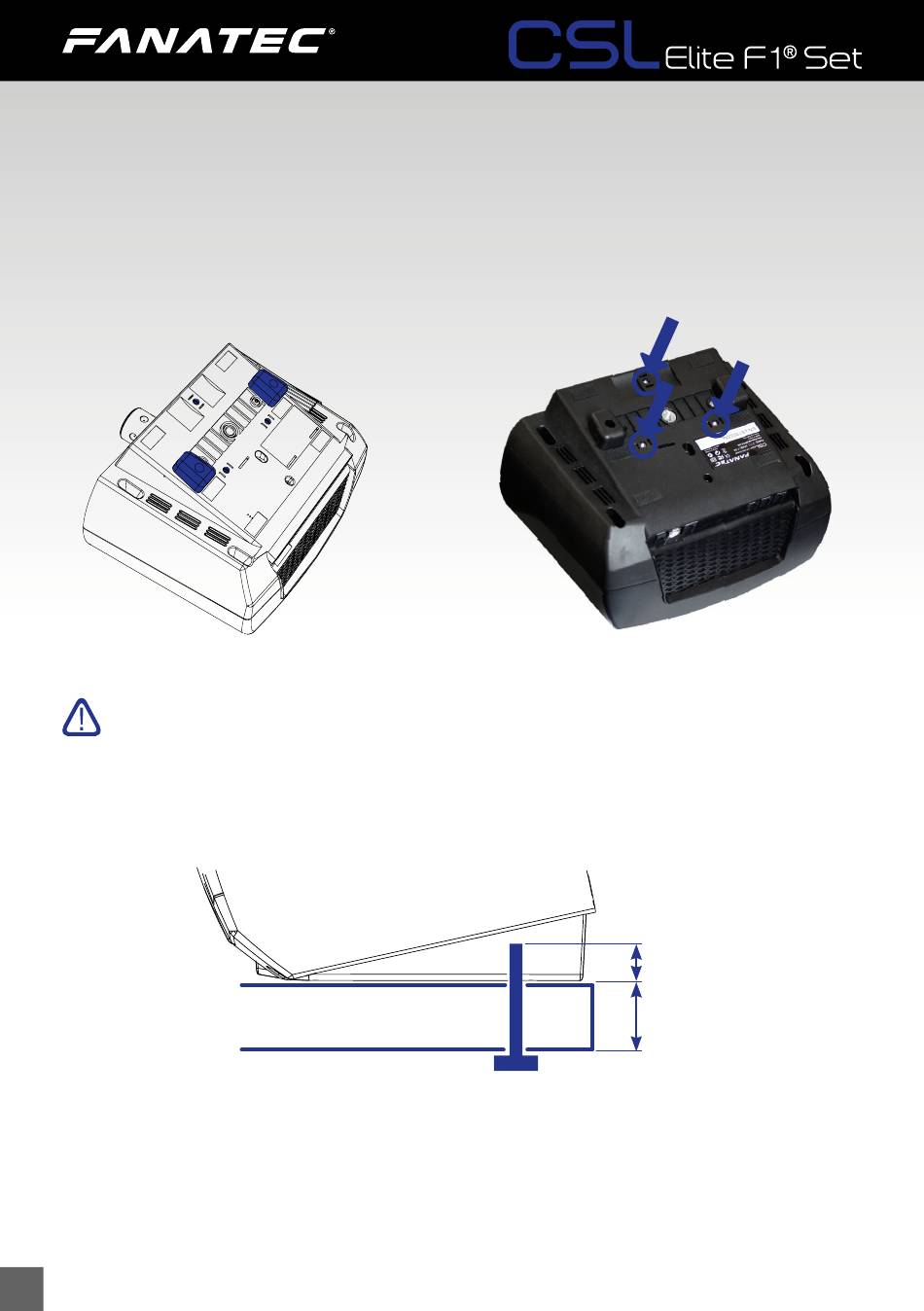

The CSL Elite Wheel Base + offers a three-point hard-mount location on the
bottom side of the CSL Elite Wheel Base + (see the right-hand side picture
below.) To hard-mount the wheel base, first disassemble the two blocks from
the bottom side with a 3mm Allen key (not included), see highlighted on the left
hand picture below:
IMPORTANT:
so that the thread does not reach more than 16 mm into the wheel base.
Example: If your table thickness is 20 mm the bolt must not exceed a to-
tal thread length of 36 mm! Always use all three hard-mount points, this
allows a proper and stable installation and avoids damage!
To hard-mount the CSL Elite Wheel Base + to a table or rig with bolts please
find the printable drilling template in the download area of our website
www.fanatec.com.
15
Use only good quality M6 bolts. Choose the bolt length
Table
max 16mm
X
