  • Page 2: Important Safety Instructions

    Technisat DigitRadio 80 Important Safety Instructions 1. Read these instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use the speaker near water. 6. Clean only with dry cloth. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE.

  • Page 3: Table Of Contents

    DigitRadio 80 Technisat Contents Important Safety Instructions ....................2 Contents ..........................3 Getting Started ......................... 4 Unit Front View ........................5 Unit Back View ........................6 DAB Mode ..........................8 Selecting another Station ..................... 8 Secondary Service ....................... 8 Scanning Stations ........................ 8 Manual Tune ........................

  • Page 4: Getting Started

    Technisat DigitRadio 80 Getting Started Carefully remove your radio from the box. You may wish to store the packaging for future use. What you can find inside of your package Main unit Power adapter Wire antenna Converter Instruction manual Positioning your Radio Place your radio on a flat / stable surface that is not subject to vibrations.

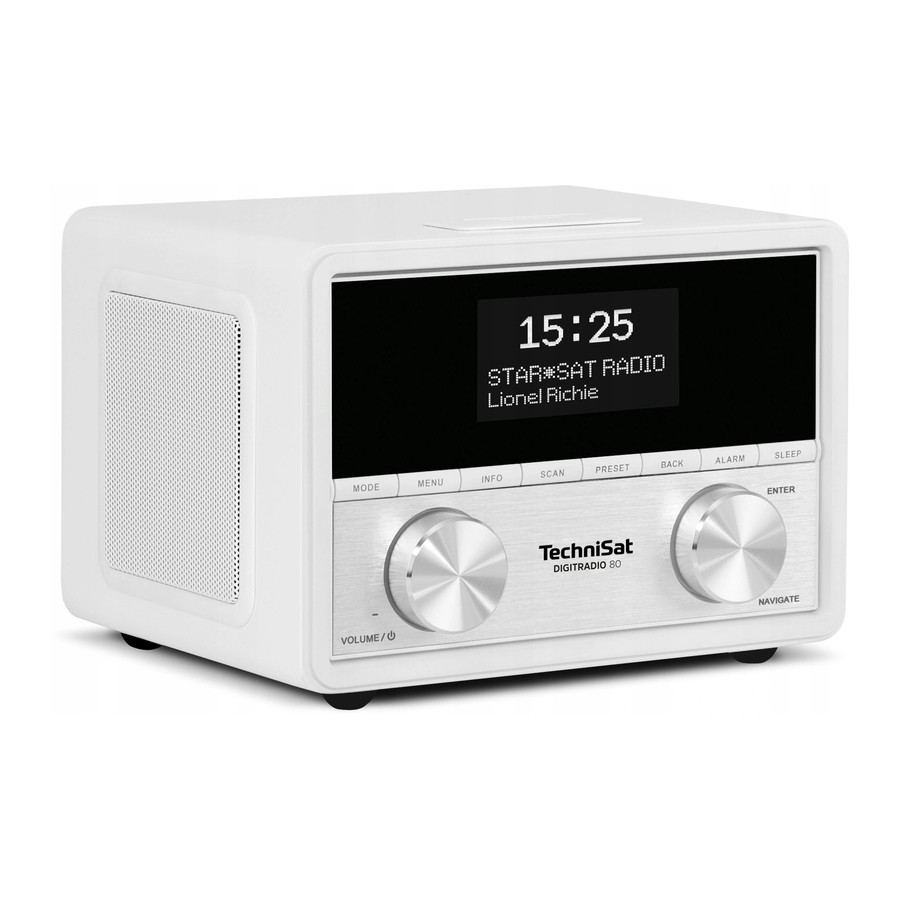

  • Page 5: Unit Front View

    DigitRadio 80 Technisat Unit Front View MODE button BACK button Press to switch among DAB, FM and Press to return to previous option. Aux in modes. ENTER button MENU button Press to confirm selection. Press to display or exit menu screen.

  • Page 6: Unit Back View

    Technisat DigitRadio 80 Unit Back View DAB/FM telescopic antenna DC IN socket Headphones socket AUX IN socket LINE OUT socket Connect to audio cable. This enables your radio stream music to external speaker. USB 5V 1A port For charging your mobile device.
  • Page 7 DigitRadio 80 Technisat Use the screwdriver to install Figure 2 the wire antenna by screwing antenna clockwise. (Refer to Figure 2.) You can also connect DAB Figure 3 signal cable to your radio by using a converter. (Refer to Figure 3.)

  • Page 8: Dab Mode

    Technisat DigitRadio 80 DAB Mode When you turn on the radio it will automatically search and store all the available stations. You should conduct an additional Full Scan to ensure all stations are picked up and stored. It is also recommended every few months to run a new scan to pick up any new DAB/DAB+ that may have begun broadcasting after purchasing your DAB radio.

  • Page 9: Manual Tune

    DigitRadio 80 Technisat Manual Tune This can help you when adjusting your antenna or when adding stations that were missed while auto tuning. Press MENU button, turn NAVIGATE knob to select Manual tune, and then press ENTER button to confirm, the display will show the channel number and frequency.

  • Page 10: Fm Mode

    Technisat DigitRadio 80 FM Mode Selecting FM Mode 1. Press MODE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected.

  • Page 11: Recalling A Preset Station

    DigitRadio 80 Technisat Recalling a Preset Station Press PRESET button to show the saved preset stations. Turn NAVIGATE knob to select the stored preset station you want to play, and then press the ENTER button to confirm. The display will show ‘Preset Recall <#: (Empty)>’ if the preset station isn’t allocated.

  • Page 12: Aux In Mode

    Technisat DigitRadio 80 Aux in Mode AUX IN allows for quick and easy connection to an MP3 player or other external audio sources. Before connecting to the mains socket, use a 3.5mm audio cable (not supplied) to connect to your external audio device through the AUX IN socket on the back of unit.

  • Page 13: General Operation

    DigitRadio 80 Technisat General Operation Setting Sleep This feature enables your radio to switch to standby mode by itself after a set sleep time. Press SLEEP button repeatedly to select through options Sleep off, 15, 30, 45, 60 or 90 minutes, press the ENTER button to confirm.

  • Page 14: Setting Equaliser

    Technisat DigitRadio 80 Setting Equaliser This feature enables you to set a sound equalization profile. The equalization setting will change the tone of the sound from your radio. Press MENU button, and then turn NAVIGATE knob to select Equaliser, and then press ENTER button to confirm.

  • Page 15: Factory Reset

    DigitRadio 80 Technisat Factory Reset A factory reset resets all user settings to default values, so time/date and presets are lost. 1. Press MENU button, and then turn NAVIGATE knob to select Factory Reset, press ENTER button to confirm. 2. Turn NAVIGATE knob to select ‘YES’, and then press ENTER button to confirm.

  • Page 16: Specification

    Technisat DigitRadio 80 Specification ITEMS DESCRIPTION DAB/DAB+ and FM Digital Radio Specifications: AC Input: 100-240V~, 50-60Hz Power Supply: DC Output: 9V, 2000mA FM: 87.5-108MHz Frequency Ranges: DAB/DAB+: 174.928 – 239.200 MHz 5W rms x 2 Audio 18W (Max) Power Consumption:...
