REVELL R-6P-HL Owner's Manual

6 person sauna
Hide thumbs

Advertisement

Quick Links

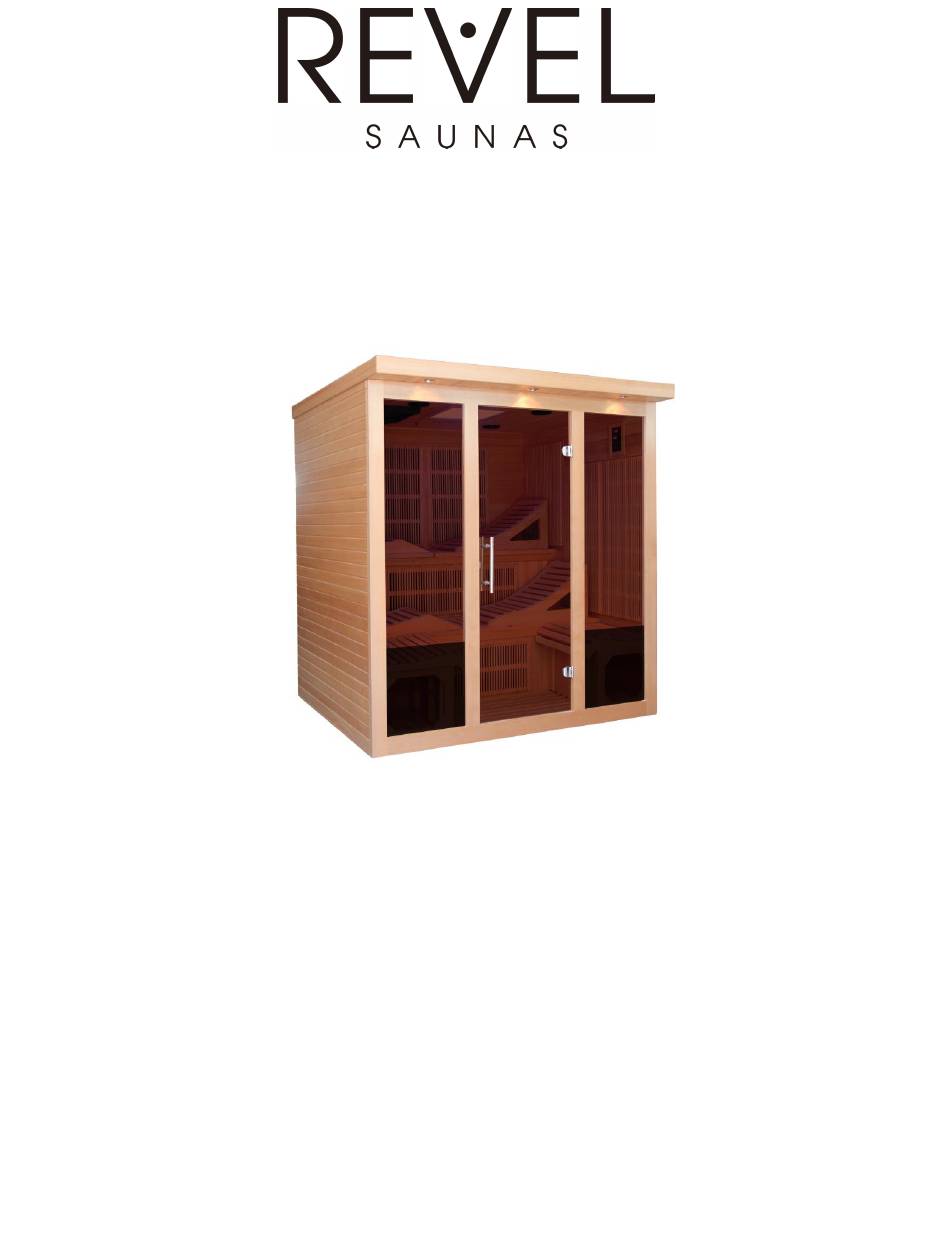

Model R-6P-HL
6 Person Sauna
OWNER'S MANUAL
INFRARED CARBON MODEL SAUNA
FOR INDOOR USE ONLY
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

loading

Related Manuals for REVELL R-6P-HL

Summary of Contents for REVELL R-6P-HL

  • Page 1 Model R-6P-HL 6 Person Sauna OWNER’S MANUAL INFRARED CARBON MODEL SAUNA FOR INDOOR USE ONLY Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We recommend keeping this manual for regular review and future reference.
  • Page 2 *PLEASE READ INSTRUCTIONS B E F O R E ASSEMBLY* R-6P-HL Visual Assembly Diagram *The above assembly diagram is a quick reference visual guide only. All sauna models are not shown. Model types, parts, and accessories may vary.
  • Page 3 *PLEASE READ INSTRUCTIONS B E F O R E ASSEMBLY* R-6P-HL Visual Interior Diagram *The above assembly diagram is a quick reference visual guide only. All sauna models are not shown. Model types, parts, and accessories may vary.
  • Page 4 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 5 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 6 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.

  • Page 8: Parts Description

    PARTS DESCRIPTION R-6P-HL Exploded Diagram I. Power Supply Both POWER SUPPLY BOXES are the control centers of the sauna room. They are installed on the ROOF PANEL and have input/outputs connected to them. The two types of POWER SUPPLY BOXES can be seen below.
  • Page 9 MAIN POWER - main power of the sauna room POWER IN - main power of the sauna room HT1, HT2, HT3, HT4 – heater cords HT1, HT2, HT3, HT4, HT5, HT6 – heater cords LIGHT – chromotherapy lights LAMPROOF – roof lamp power (optional) LIGHTING –...
  • Page 10 IV. Guide & Guide Inserts and Buckles The guide and guide inserts are used to connect the FRONT PANEL to the LEFT SIDE PANEL and RIGHT SIDE PANEL. The buckles are used to connect the REAR WALL to the LEFT SIDE PANEL and RIGHT SIDE PANEL.

  • Page 11: Assembly Instructions

    Understanding The Difference Between The Top And Bottom Of The Wall Panels The top of the wall panels will have heat emitter power cords and control panels coming from them. The control panels will be at the top of the side wall panels. Also, the power outlets will be at the bottom of the REAR WALL PANEL.
  • Page 12 Installing the FLOOR PANEL Place the FLOOR PANEL on the floor. Turn the FLOOR PANEL so that the heater power cord is at the rear. (see Figure 6) Figure 6 Installing the REAR PANEL and SIDE PANELS Place the REAR PANEL up against the FLOOR PANEL. Attach the REAR PANEL to the SIDE PANELS using the buckles as seen in Figure 7.
  • Page 13 Installing the LOWER BENCH HEATER PANEL and WOOD BRACE (fixed frame) Insert the correct LOWER BENCH HEATER PANEL. Please note that the LOWER BENCH HEATER PANEL and MIDDLE LEVEL BENCH HEATER PANEL are not the same. Proceed in inserting the WOOD BRACE (fixed frame). (see Figure 8 and 9) Connect LOWER BENCH HEATER cord into the rear wall outlet.
  • Page 14 Figure 10 Installing the CENTER BENCH GUIDES and BENCHES (large) Locate the (2) CENTER BENCH GUIDES. Place them in the correct positions as seen in Figure 11. Next, locate the BENCHES (large). Insert them into there correct positions. They can be inserted facing upward which will allow you to lay down.
  • Page 15 Figure 12 Figure 13 Installing the LOWER BENCH SUPPORTS and LOWER BENCHES Place the LOWER BENCH SUPPORTS as seen in Figure 14. Do not screw in the LOWER BENCH SUPPORTS until after the FRONT WALL PANEL is installed. Next, place the LOWER BENCHES onto the top of the LOWER BENCH SUPPORTS. (see Figure 15)
  • Page 16 Figure 14 Figure 15...
  • Page 17 H. Installing the FRONT WALL PANEL Place the FRONT WALL PANEL up against the FLOOR PANEL. Attach the FRONT WALL PANEL to the SIDE PANELS using the guide and guide inserts as seen in Figure 16. After the FRONT WALL PANEL is installed, the LOWER BENCH SUPPORTS can be screwed in. Figure 16 Please note that the black protection corners used to protect the corners of the glass door can be removed and discarded once the sauna room is assembled.
  • Page 18 Figure 17 Figure 18 Figure 19 Figure 20 Figure 21...
  • Page 19 J. Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see Figure 22) Figure 22 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit.
  • Page 20 Figure 23 Figure 24 Figure 25...
  • Page 21 Figure 26 L. Installing the Monitor (optional) If the 15” Monitor is already installed, please proceed to Step L. Locate the 15” Monitor. Open the Monitor up and locate the screw holes. You will need to mount the unit to the metal plate that is already attached to the ceiling using the provided screws.
  • Page 22 Figure 27 M. Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Take care in pulling the power cord through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel.
  • Page 23 Figure 29 Figure 31 O. MP3 Shelf (Optional – not available on all models) 1. If your sauna comes with the optional MP3 shelf, use the two screws provided to mount the self on either the side panels or front panel. (see Figure 32) Figure 32...

  • Page 24: Operating The Sauna

    Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna.
  • Page 25 Chromotherapy/Color Therapy Lighting can be operated as follows. First, you will need to install the battery. Once the battery has been inserted into the remote, you are ready to operate the chromotherapy/color therapy lighting system. Press the READING LIGHT button on the sauna control panel.

  • Page 26: Tips For Using Your Sauna

    CONTROL PANEL Power : Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicate the working status of the sauna Heat Indicator: Indicate the status of heating function Exterior Light: Press to control the lighting function Color Light: Press to control the chromotherapy lighting function...

  • Page 27: Safety Instructions

    sure not to place any towels over the floor heat emitters. Use a third towel to wipe perspiration from your body from time to time. 5) At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your immune system and decreasing the reproductive rate of viruses.

  • Page 28: Safeguards For Your Sauna

    17) Your hands must be dry and free of moisture before plugging and unplugging cords and wiring harnesses from the power supply and circuit boards. Never operate the sauna with wet hands or wet feet to avoid risk of electric shock. Never touch the metal prongs of the plug. 18) Do not attempt to make any repairs yourself.
  • Page 29 “TEMP SENSOR” was the cause of the problem. You may have to wait about five minutes to confirm if the heat emitters are generating heat. Remove the original temperature sensor from its hole and replace it with the spare one. 2.
