Keysight Technologies E4980A Quick Demo Manual

Quick Demo Guide
Keysight Technologies E4980A Precision LCR Meter, 20 Hz to 2 MHz
Procedure overview
1. Preset system
2. Perform compensation of fixture
3. Set measurement parameters
4. Connect DUT and measure at a single frequency
5. Set up list sweep table
6. Set trigger mode and make sweep measurement
In this demo...
– Measurement of chip SMD device
– Fixture compensation
– List sweep

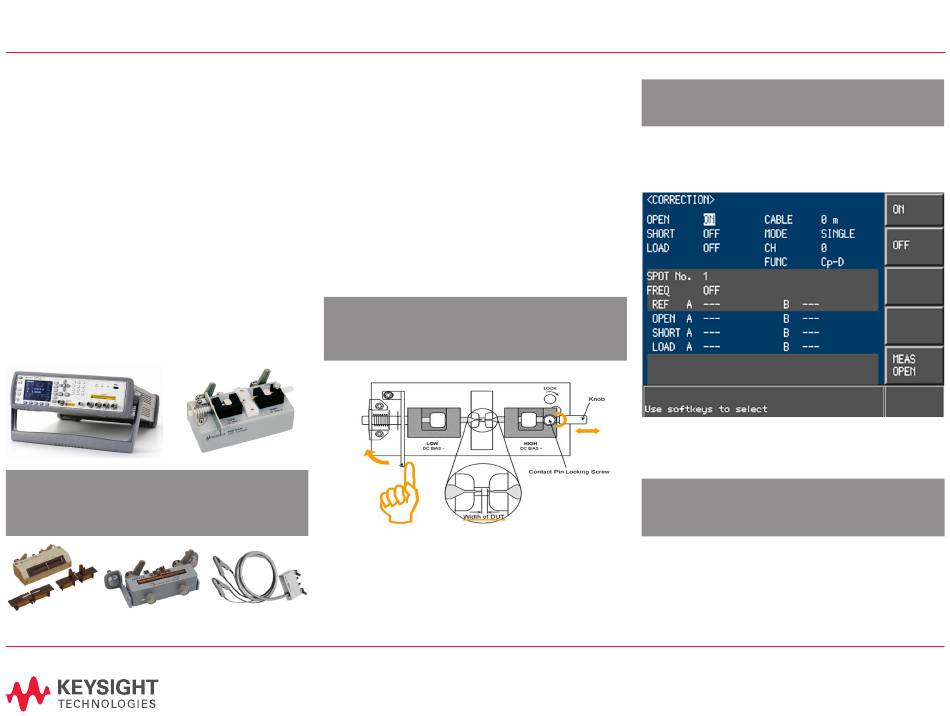

Required Instrument and fixture
E4980A Precision LCR Meter Fixture for SMD device
(16034E/G/H, 16334A)
If the fixture for SMD device is not available, it is pos-
sible to perform the same procedure with following
fixtures. Use lead components in this case.
16047D 16047E
1. Preset system
a. Press [Preset] front panel key
b. Press CLEAR SET&CORR softkey
c. Press OK softkey (wait about 20 seconds...)
2. Perform compensation of fixture
a. Set fixture to UNKNOWN terminals
b. Press [Meas Setup] front panel key
Select CORRECTION softkey
c.
d. Move cursor onto OPEN field by pressing
[▼] front panel key
e. Make open condition for the test fixture
To make open condition, adjust the distance of the
two electrodes so that the separation becomes equal
to the length of the DUT (Figure 1)
Figure 1. Make open condition (for 16034E/G/H).
16089A/B/C/D/E
To activate Open correction, the status of the OPEN
field should be changed from "OFF" to "ON." (Figure 2)
Press MEAS OPEN softkey to perform open
f.
correction
g. Press ON softkey
Figure 2. Turned on OPEN correction.
h. Make short condition for the test fixture
To make short condition, short the test fixture by
sliding the right (HIGH) electrode to the left so that
two electrodes contact to each other
i. Move cursor onto SHORT field by pressing
[▼] front panel key
Press MEAS SHORT softkey to perform short
j.
correction
Press ON softkey
k.
