FANATEC CSL Elite Wheel Base + Manual page 23

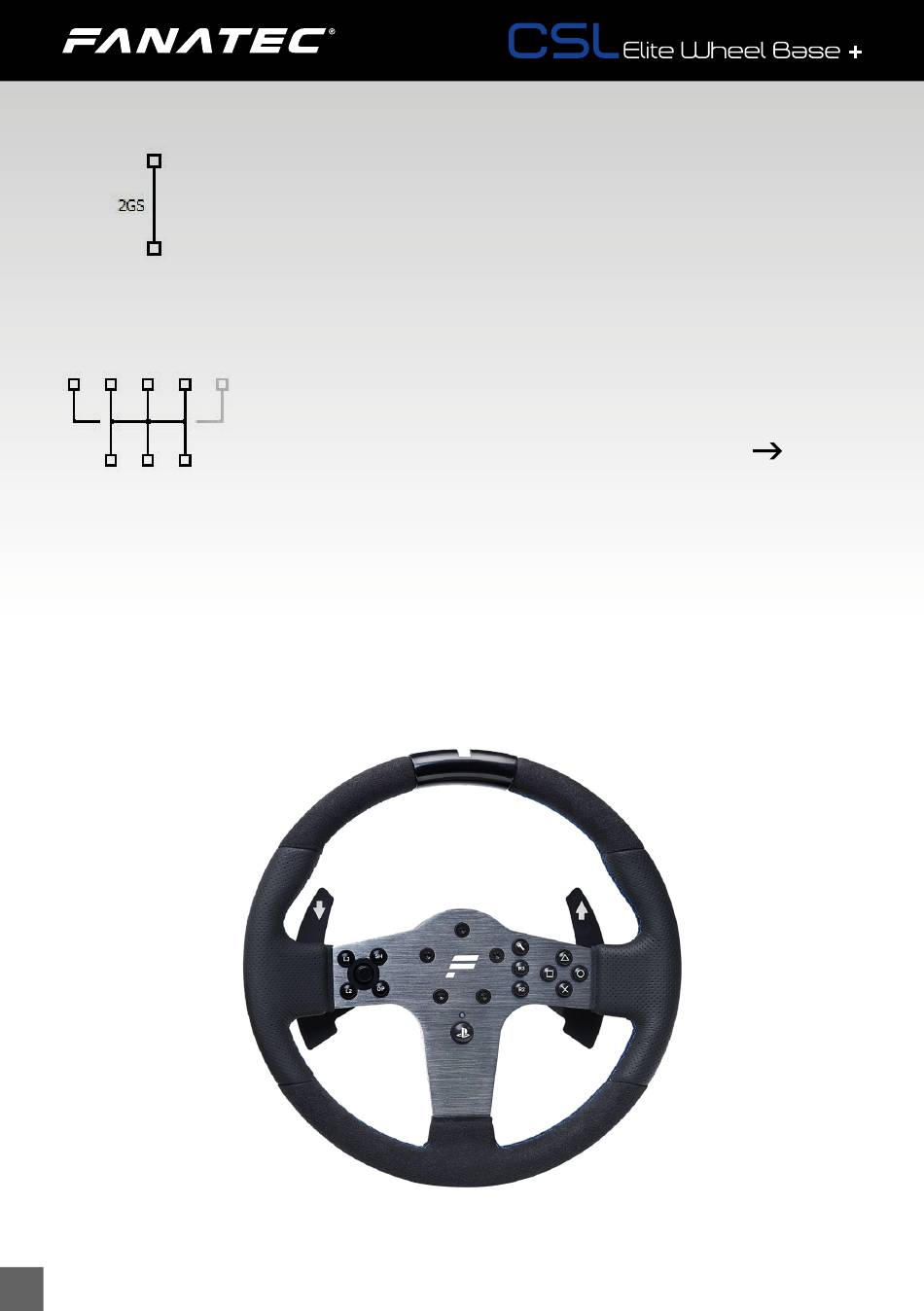

showing a scheme of the attached Fanatec
you press one of the buttons on the attached steering wheel the corresponding
button will be highlighted with a blue spot as long as the button is physically
activated. Please note that this view is depending by the attached Fanatec
steering wheel. See example picture for the CSL Elite Steering Wheel (PS4
version) on the right hand below:
23
The "2GS" indicator shows the activation of the 2GS (two
gears shifter, sequential shifter, SQ) with a blue square,
depending on the activated shifting position (up or down).
This can be for example the ClubSport Static Shifter Paddles
or the ClubSport Shifter SQ in sequential mode if these are
not mapped to the steering wheel shifter paddles.
The "H-pattern" indicator shows the activation of the 6GS,
7GS or 8GS (six gears shifter, seven gears shifter or eight
gears shifter) with a blue square, depending on the activated
shifting position. This can be for example the ClubSport
Shifter or ClubSport Shifter SQ. Therefore, the H-pattern
shifter must be calibrated. See chapter 'Hotkeys'
calibration mode' for more details
The biggest area in this window is the upper right section,
steering wheel with all buttons. If
®
'Shifter
®
TM
