ScrapBox SEW STATION Assembly Instructions Manual page 16

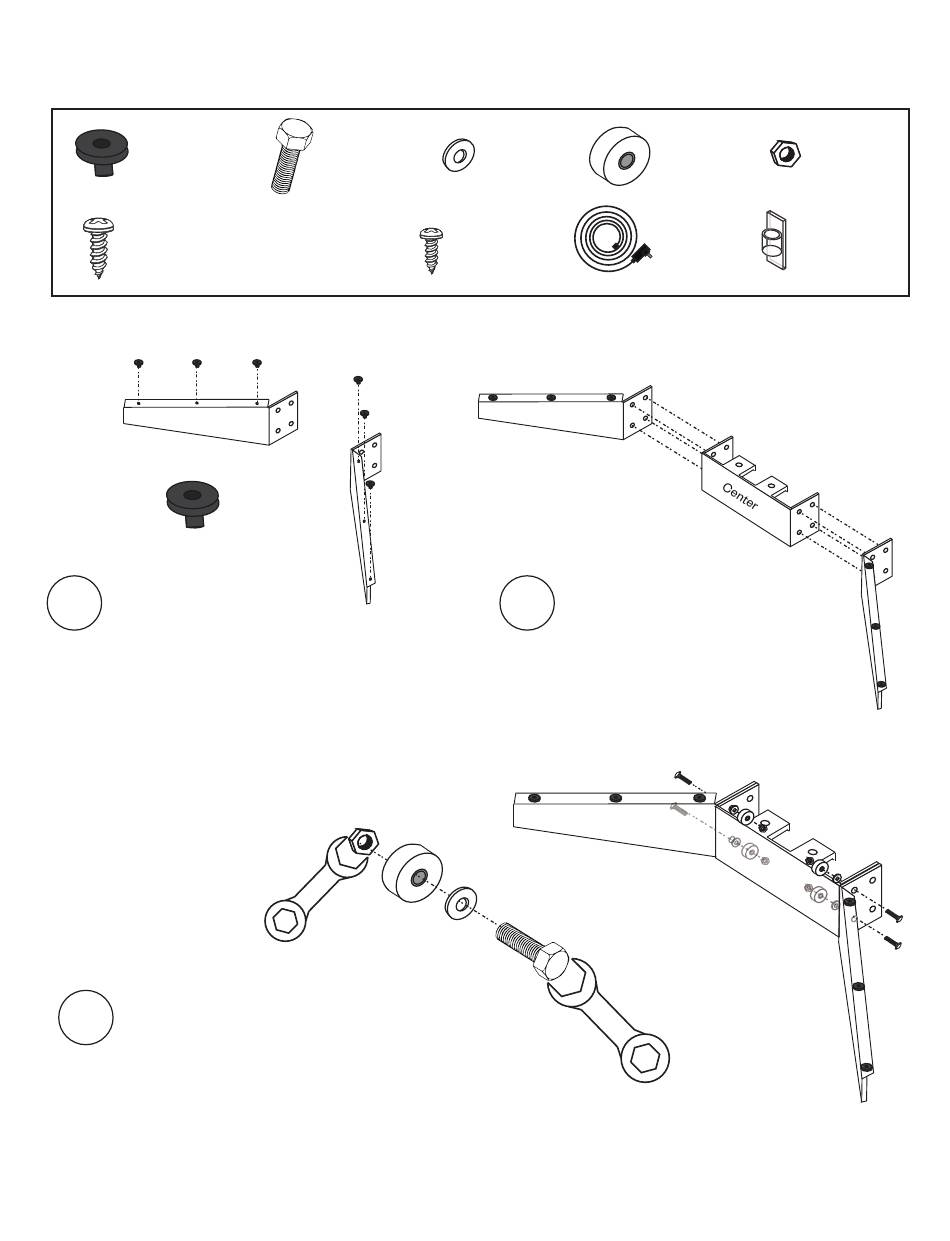

Next, you'll assemble and install the machine lift & assembly the spool drawer.
H ARDWA R E YOU ' L L N E ED
x6
Rubber
pads
x18
1/2" Screws. (4) for metal center, (6) for lift
Shelf, (8) for installing lift to Sew Station.
Metal Arm
Insert (6) rubber pads
a
into metal arms
Install (4) bearing wheels onto the front
c 2 holes on each metal arm using (4) washers, bolts
and nuts. Using 2 - 1/2" wrenches tighten the bolt
and the nut. Make sure the black side (lock thread)
of nut is on the outside. The silver side is toward
the Bearing Wheel. Bearing wheel should spin
freely once tightened. IMPORTANT: Placement of
the washer is important so bearing spins freely and
doesn't burn out your motor.
16
x8
Bolts
x6
Nut
Proprietary, patented product and assembly instructions. Do not copy or distribute.
x8
Washers
x2
Screws for
lift control
Metal Arm
Metal Arm
b
Bearing Wheel
Washer x4
Bolt
x8
Bearing
wheels
x2
Cords
Line up metal arms with
metal center.
x8
Nuts
x4
Plastic Cord
Holders
Metal Arm
