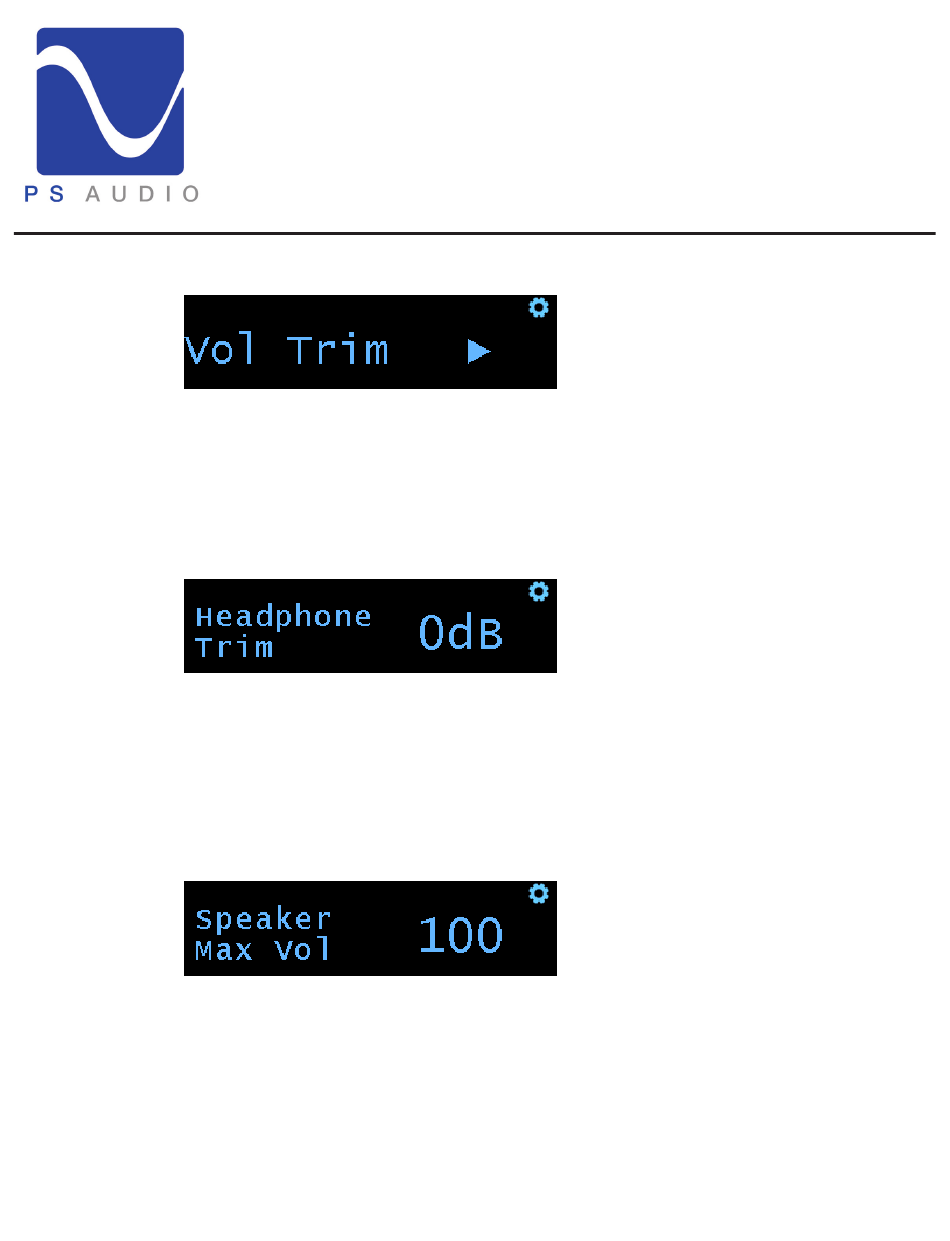

Menu Features Volume Trim sub-menu (double press to open)
(Continued)
This feature allows you to adjust the relative volume level of each input. This is useful if you
have sources that are especially louder or softer than others. You can trim their volume so that
changing inputs does not require a large compensating change to the volume setting. Each input
can be adjusted up to 10dB higher or lower.

Headphone Trim

This feature allows you to adjust the relative volume when using headphones. If your headphones
are very sensitive, you may wish to adjust this setting so the headphones are not too loud when
you plug them in. Similarly, if your headphones play too softly compared to the volume through
the speakers, you can use the Headphone Trim to increase the gain. The Headphone Trim can be
adjusted up to 10dB higher and lower.

Speaker Maximum Volume

In some situations, especially with high-sensitivity speakers, the Strata's volume control
might have too much range and allow your system to play at potentially dangerous levels. The
Maximum Volume feature can be used to limit the maximum volume control setting to a safer
level.
®
