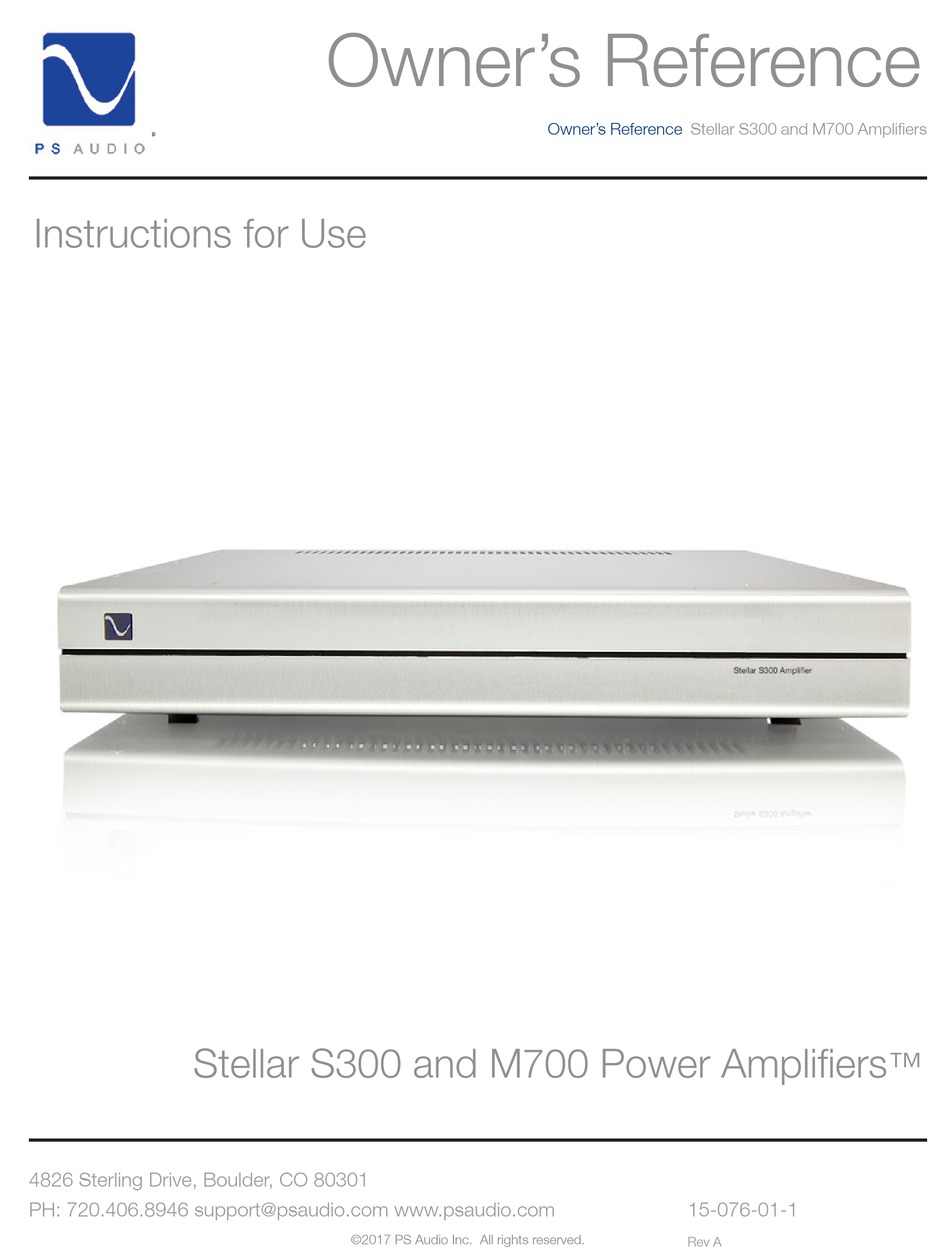

- Page 1 Owner’s Reference Owner’s Reference Stellar S300 and M700 Amplifiers ® Instructions for Use Stellar S300 and M700 Power Amplifiers ™ 4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A...
-
Page 2: Important Safety Instructions
Please contact your authorized dealer, distributor, or PS Audio if you have any questions not addressed in this reference manual. PS Audio ® is a registered trademark of PS Audio Inc., and is restricted for use by PS Audio, Inc., its subsidiaries, and authorized agents. - Page 3 Each Stellar product is hand-built in our Colorado facility. We take great pride in what we build, how it sounds, and how the end user is treated. We’re PS Audio, and making music and keeping our customers happy and thrilled is what we’re all about.
-
Page 4: Owner's Reference
Positive Right Speaker Output Negative Left Speaker Output Balanced Right Input Single Ended Right Input Positive Left Speaker Output 4826 Sterling Drive, Boulder, CO 80301 Owner’s Reference PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A... - Page 5 5 Volt - 12 Volt Trigger Output Positive Speaker Output Single Ended Input Negative Speaker Output Balanced Input 4826 Sterling Drive, Boulder, CO 80301 Owner’s Reference PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A...
- Page 6 Country Specific The Stellar, as with all PS Audio products, is country specific to its incoming AC voltage. This means the units can only be operated at its preset voltages, such as 230 for most of Europe and Asia, 100 AC Voltages volts for Japan and 120 for the US and other similar countries.
-
Page 7: Connecting Cables
Trigger Input / The Stellar S300 and M700 Amplifiers have a 5V -12V Trigger for remotely powering the unit on and off. It is important to note that the trigger “out” is intended to loop through to a second power amplifier. - Page 8 Button will flash quickly for 5 seconds and the unit will power down. Read more about Fault Protect - Fault Protect Mode in the troubleshooting section. Mode 4826 Sterling Drive, Boulder, CO 80301 Owner’s Reference PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A...
-
Page 9: Troubleshooting
Use the same method described above to remove the ground on the offending piece of kit. 4826 Sterling Drive, Boulder, CO 80301 Troubleshooting PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 Rev A ©2017 PS Audio Inc. All rights reserved. - Page 10 Stellar goes to the red terminal on your loudspeaker. Fuses There are no user serviceable fuses in the Stellar S300 or M700 Amplifiers. 4826 Sterling Drive, Boulder, CO 80301 Troubleshooting PH: 720.406.8946 support@psaudio.com www.psaudio.com...
-
Page 11: Specifications
S300 and M700 8 lbs Shipping Width 22” Shipping Height 8” Shipping Depth 17” Shipping Weight S300 18lbs M700 21lbs 4826 Sterling Drive, Boulder, CO 80301 Specifications PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A... - Page 12 < 0.01% Signal to Noise 1KHz @ 300W 100dB Power Consumption Idle 1/8th power 4Ω 104W Rated power 4Ω 830W 4826 Sterling Drive, Boulder, CO 80301 Specifications PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A...
- Page 13 < 0.015% Signal to Noise 1KHz @ 700W 105dB Power Consumption Idle 1/8th power 4Ω 125W Rated power 4Ω 895W 4826 Sterling Drive, Boulder, CO 80301 Specifications PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1 ©2017 PS Audio Inc. All rights reserved. Rev A...
-
Page 14: Warranty
PS Audio. What is the Period of Coverage? This limited warranty is in effect for 3 years from the date the unit was first purchased from PS Audio or its dealers and agents. Who Pays for Shipping? You are responsible to pay for the safe and proper shipment of the warrantied product to PS Audio or its authorized repair center. - Page 15 3 year warranty period. To do this, you must contact PS Audio directly to set up transfer of registration. How Do I Get Warranty Service? To locate an authorized PS Audio repair center, for service assistance, or for help with the operation of a product or just for information, please contact PS Audio customer support.
- Page 16 Warranty Service Outside of the US PS Audio has authorized distribution in many countries of the world. In each country, the authorized importing distributor has accepted the responsibility for warranty of products sold by that distributor. Warranty service should be obtained where the product was purchased.
