MODEL W1867/W1868/W1869
CYCLONE 
DUST COLLECTORS

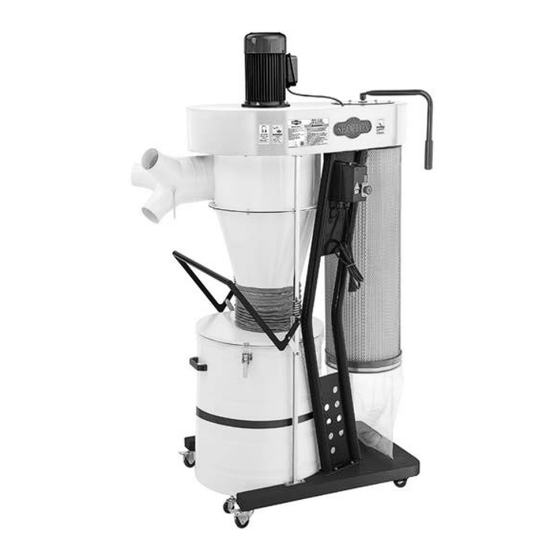

W1867
W1868
W1869
OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 11/18)
Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com
COPYRIGHT © JANUARY, 2019 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#20207KBES  Printed in Taiwan
