Shop fox D3756 Instruction Sheet

Dust Collection Accessories Kit
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Identification & Inventory

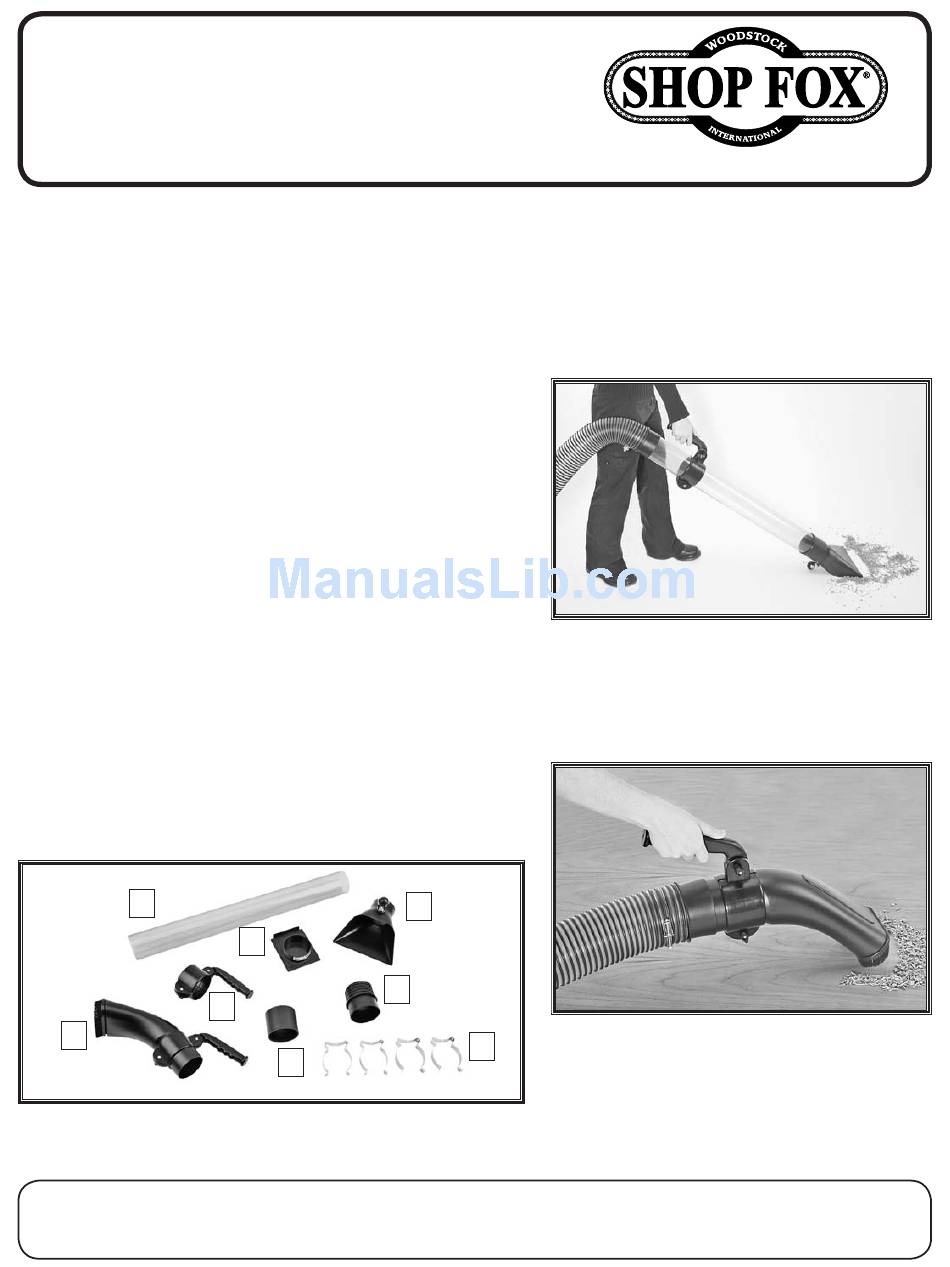

Refer to Figure 1 and the descriptions below to identify
and inventory your new dust collection accessories kit.
A. Clear Tube: Connects the floor scoop to a dust hose
and the dust collection system.
B. Blast Gate: Opens or seals the opening to the dust
collection system.
C. Clamping Handle: Provides a method to control the
floor scoop assembly.
D. Straight Adapter: Connects two 4" dust collection
accessories.
E. Hand-Held Brush Assembly: Provides an easy way to
clean chips and dust from workbenches and tables.
F. Wall Mounting Clamps: Secures a dust hose or the
floor scoop assembly on the wall for storage.
G. Dust Hose Adapter: Connects a 4" dust accessory to
a 4" dust hose.
H. Floor Scoop: Provides a convenient way to clean
chips and dust from the floor.
A
E
Figure 1. Shipping inventory.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#12985TS
Model D3756
Instruction Sheet
B
C
D
COPYRIGHT © JUNE, 2010 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Operation

For a convenient method of cleaning wood
chips and dust from the floor, assemble the
Parts as shown in Figure 2, and connect
a 4" dust hose between this assembly and
your dust collection system.
To clean wood chips and dust from work-
benches and tables, connect the hand-held
brush assembly directly to a dust hose, as
shown in Figure 3.
H
G
Figure 3. Hand-held brush configuration.
F
Important: For safe and efficient opera-
tion of these devices, connect them, with
a grounding wire for static electricty, to
a dust collection system that provides at
least 400 CFM of suction.
Figure 2. Floor scoop configuration.
Printed in Taiwan
