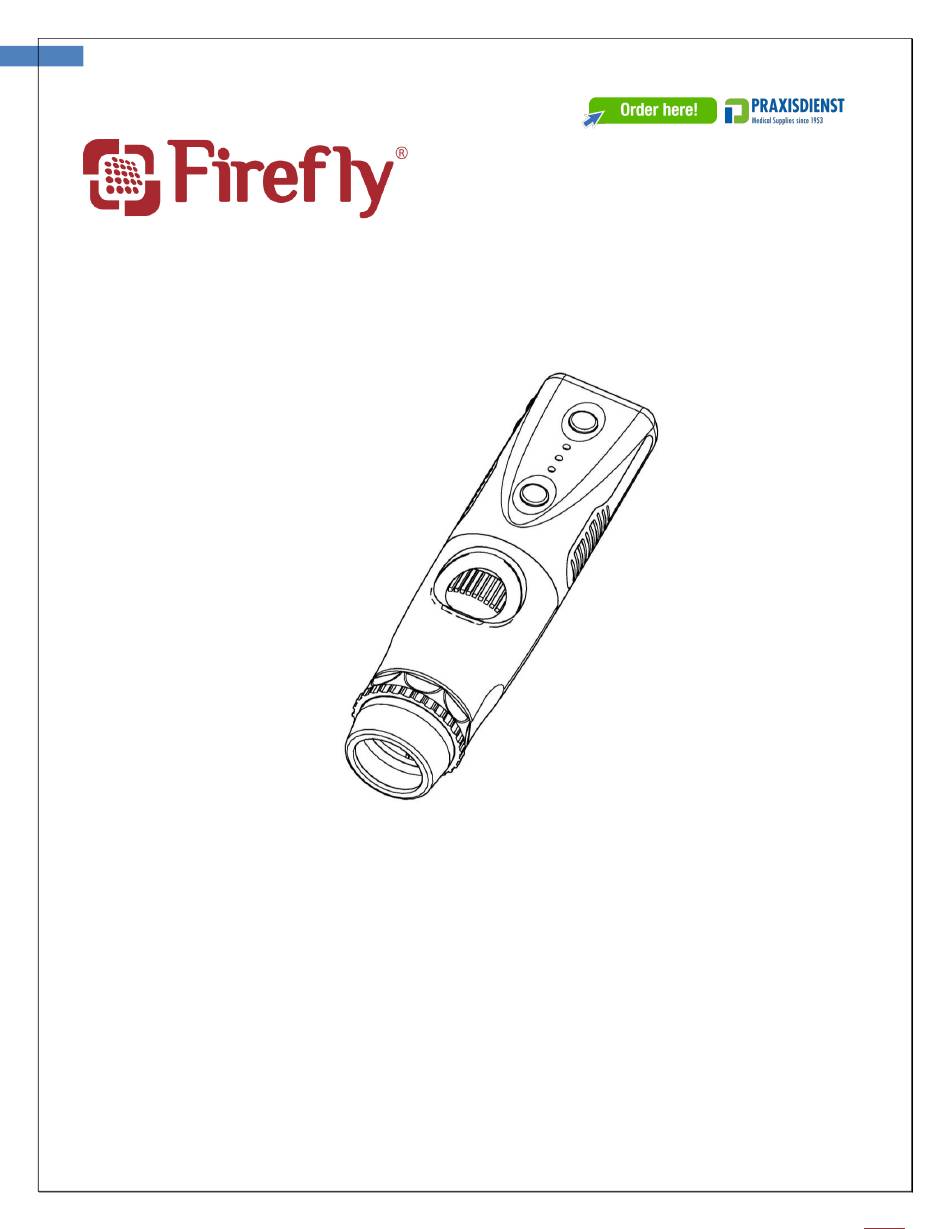

User Manual Wireless Dermatoscope
Version: 2.1
DE370
User Manual
WIRELESS DERMATOSCOPE
THANK YOU FOR SELECTING A WIRELESS FIREFLY DERMATOSCOPE
To take full advantage of this product's advanced capabilities,
and to properly and safely use this product, please read the manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE370 and is the answer not in the manual?

Questions and answers

Summary of Contents for Firefly DE370

  • Page 1 User Manual Wireless Dermatoscope Version: 2.1 DE370 User Manual WIRELESS DERMATOSCOPE THANK YOU FOR SELECTING A WIRELESS FIREFLY DERMATOSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
  • Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
  • Page 3: Table Of Contents

    User Manual Wireless Dermatoscope Version: 2.1 ABLE OF ONTENTS Introduction ........................ 4 & C ....................5 ARNINGS AUTIONS Warning ..........................5 Caution ........................... 5 Check List ........................6 Nomenclature ......................7 Operation ........................8 Downloading the iOS/Android Application: .................. 8 Launching the Software Application: ..................
  • Page 4: Introduction

    System Requirements The Firefly Dermatoscope System requires a smart device with iOS version 9.3 or higher. For Android phones the system requires Android 4.4 and higher and for Android tablets 6.0 and higher.
  • Page 5: Warnings & Cautions

    In order to obtain optimum performance and ensure patient safety, ◼ thoroughly read this manual. Do not use the Firefly Otoscope if you notice any signs of damage to the ◼ components of the system. Contact customer service for immediate assistance.
  • Page 6: Check List

    User Manual Wireless Dermatoscope Version: 2.1 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. USB DC power cord x 1 pc Power Adapter x 1pc 100-240V AC to 5V USB DC Notice: Actual Shape may vary.
  • Page 7: Nomenclature

    User Manual Wireless Dermatoscope Version: 2.1 OMENCLATURE USB Charging Port Power Button Brightness Control Video Recording Button Wi-Fi Indicator Power Indicator Battery Charging Indicator Snapshot Button Focusing Wheel Polarizing Ring Scope Spacer...
  • Page 8: Operation

    Launching the Software Application: After Firefly Pro has been installed, simply open the application by tapping on the Firefly Pro icon once and follow the set-up instructions. The application has the capabilities to take photos and record videos, and is designed to be user friendly and self-explanatory.
  • Page 9: Charging Battery

    When the charging is completed, this LED will turn green. Charging Battery: Duration: ◼ The Wireless Firefly Dermatoscope has a built-in high efficiency lithium battery that enables more than 1.5 hours continuous operation. Charging the Battery: ◼ Through the micro-USB port at the rear of the dermatoscope, the embedded battery can be charged with the provided USB DC cable.
  • Page 10: Establishing A Wi-Fi Connection

    User Manual Wireless Dermatoscope Version: 2.1 Establishing a Wi-Fi Connection: On your iOS/Android device, go to Settings. Click on Wi-Fi. Select the Firefly Device and input the default password: 12345678 Wi-Fi Indicator When the device is off, this LED is off.
  • Page 11: Recommended Holding Position

    User Manual Wireless Dermatoscope Version: 2.1 Recommended Holding Position: It is suggested to hold the dermatoscope, transparent cover down, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown).
  • Page 12: High Magnification Use

    User Manual Wireless Dermatoscope Version: 2.1 High Magnification Use: When there is a need for a higher magnification, maintaining body stability becomes more paramount. In such instances, it is suggested that the digital Microscope focus wheel opening should be placed towards the user, and the transparent cover vertically downward.
  • Page 13: Obtaining A Clear Image

    User Manual Wireless Dermatoscope Version: 2.1 Obtaining a Clear Image: To obtain a clear image, please grip the Firefly Dermatoscope; remain still and avoid vibration as much as possible during observation. Using the Polarizer: The Wireless Dermatoscope is equipped with an integrated polarizer feature. To activate polarization, turn the black ring behind the nose extender.
  • Page 14: Maintenance And Service

    ERVICE Cleaning and Care Recommendations The Firefly digital dermatoscope is designed to provide years of service if it is maintained properly. Proper cleaning and gentle usage are critical to ensure that the device will continue to work reliably. The dermatoscope cannot be sterilized and should not be submerged in liquids or subjected to steam sterilization or other sterilization methods.
  • Page 15: Recycling The System Components

    User Manual Wireless Dermatoscope Version: 2.1 Recycling the System Components Within the EU Do not dispose of this product as unsorted municipal refuse. Submit for separate collection as specified by Directive 2002/96/EC of the European Parliament and the Council of the European Union on Waste Electronic and Electrical Equipment (WEEE).
  • Page 16: Service Policy

    Version: 2.1 ERVICE POLICY All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.
  • Page 17: Specifications

    User Manual Wireless Dermatoscope Version: 2.1 PECIFICATIONS Item Specification Weight Approximately 113 g (0.25lb) Length: 13.1 cm (5.25 inches) Dimensions (approximate) Height: 3.5 cm (1.4 inches) Width: 3.5 cm (1.4 inches) Power 3.7V @ 550mA Protection against ingress of water IPXØ...
  • Page 18: Limited Warranty

    ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased.
  • Page 19 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
  • Page 20 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.
  • Page 21: Troubleshooting

    Please visit the FAQ section of our website at http://www.fireflyglobal.com for the latest troubleshooting information and additional support. You can also contact us at support@fireflyglobal.com Monday through Friday 9:30 AM to 5:30 PM Eastern Time. Thank you for choosing Firefly. www.fireflyglobal.com...
