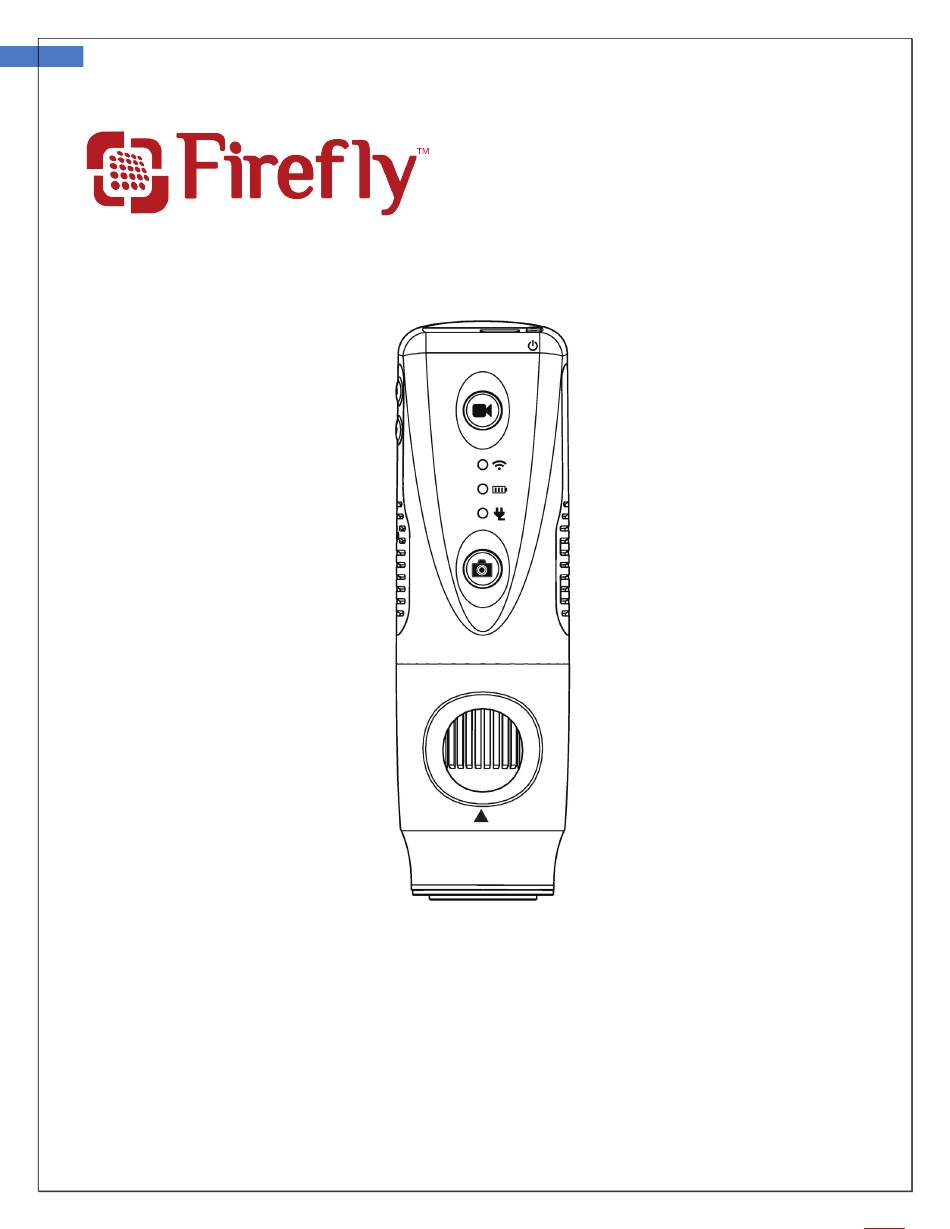

- Page 1 Firefly DE570/571 User Manual Version: 2.2 DE570/DE571 User Manual WIRELESS DIGITAL OTOSCOPE THANK YOU FOR SELECTING A FIREFLY OTOSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
- Page 2 Manufactured by FIREFLY GLOBAL – 464 COMMON ST, #281, BELMONT, MA 02478, USA Copyright 2020 by Firefly Global. All rights are reserved. No one is permitted to reproduce or duplicate, in any form, this manual or any part thereof without permission from Firefly Global (www.Fireflyglobal.com).
-
Page 3: Table Of Contents
Firefly DE570/571 User Manual Version: 2.2 Table of Contents Introduction ........................ 4 Warnings & Cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................6 Nomenclature ......................7 Operation ........................8 Setting up the Otoscope with Specula： ..................8 Downloading the iOS Application: .................... -
Page 4: Introduction
System Requirements The Firefly Otoscope System requires a smart device with iOS version 9.3 or higher. For Android phones the system requires Android 4.4 and higher and for Android tablets 6.0 and higher. -
Page 5: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly Otoscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. -
Page 6: Check List
Firefly DE570/571 User Manual Version: 2.2 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. DE570 Human one-time use specula (multiple pieces) DE571 Veterinary one-time use Wireless Otoscope X 1 pc... -
Page 7: Nomenclature

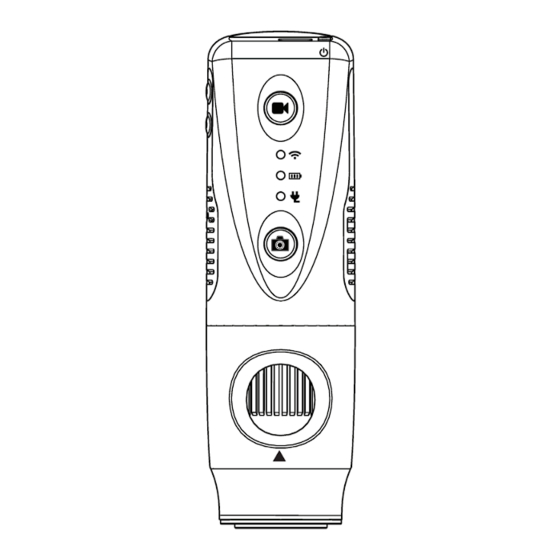

Firefly DE570/571 User Manual Version: 2.2 OMENCLATURE USB Charging Port Power Button Video Recording Button Wi-Fi Indicator Power Indicator Snapshot Button Battery Charging Indicator Focusing Wheel Specula... -
Page 8: Operation
To download the application for Android, please visit the Google Play Store. Launching the Software Application: After Firefly Pro has been installed, simply open the application by tapping on the Firefly icon once and follow the set-up guide. The application has the capabilities to take photos are record videos, and is... -
Page 9: Powering The Device On
Firefly DE570/571 User Manual Version: 2.2 Powering the Device On: Push the ‘Power Button’ at the rear of the Otoscope to activate the device. An indicator light will turn on to confirm the power status. Power Indicator When the device is off, this LED is off. -
Page 10: Charging Battery
Version: 2.2 Charging Battery: Duration: The Firefly Wireless Otoscope has a built-in high efficiency lithium battery that enables more than 1.5 hours continuous operation. Charging the Battery: Through the micro-USB port at the rear of the Otoscope, the embedded battery can be charged with the provided USB DC cable. -
Page 11: Establishing A Wi-Fi Connection
Firefly DE570/571 User Manual Version: 2.2 Establishing a Wi-Fi Connection: On your iOS/Android device, go to Settings. Click on Wi-Fi. Select the Firefly Device and input the default password: 12345678 Wi-Fi Indicator When the device is off, this LED is off. -
Page 12: Recommended Holding Position
Firefly DE570/571 User Manual Version: 2.2 Recommended Holding Position: It is suggested to hold the otoscope, specula tip forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is still free to rotate and adjust the focus wheel (as shown). -
Page 13: Using Focus
Free focus: Rotate wheel to fine tune the image Obtaining a clear image: To obtain a clear image, please grip the Firefly Otoscope; remain still and avoid vibration as much as possible during observation. -
Page 14: Maintenance And Service
AINTENANCE AND SERVICE Cleaning and Care Recommendation The Firefly digital otoscope is designed to provide years of service if it is maintained properly. Proper cleaning and gentle usage are critical to ensure that the device will continue to work reliably. -
Page 15: Recycling The System Components
Firefly DE570/571 User Manual Version: 2.2 Recycling the System Components Within the EU Do not dispose of this product as unsorted municipal refuse. Submit for separate collection as specified by Directive 2002/96/EC of the European Parliament and the Council of the European Union on Waste Electronic and Electrical Equipment (WEEE). -
Page 16: Service Policy
ERVICE OLICY All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 17: Specifications
Firefly DE570/571 User Manual Version: 2.2 PECIFICATIONS Item Specification Weight Approximately 113 g (0.25lb) Length: 11.5 cm (4.5 inches) Dimensions (approximate) Height: 3.5 cm (1.4 inches) Width: 3.5 cm (1.4 inches) Power 3.7V @ 550mA Protection against ingress of water IPXØ... -
Page 18: Limited Warranty
ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 19 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
- Page 20 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.
-
Page 21: Troubleshooting
Firefly DE570/571 User Manual Version: 2.2 ROUBLESHOOTING Please visit the FAQ section of our website at http://www.fireflyglobal.com for the latest troubleshooting information and additional support. You can also contact us at support@fireflyglobal.com Monday through Friday 9:30 AM to 5:30 PM Eastern Time.
