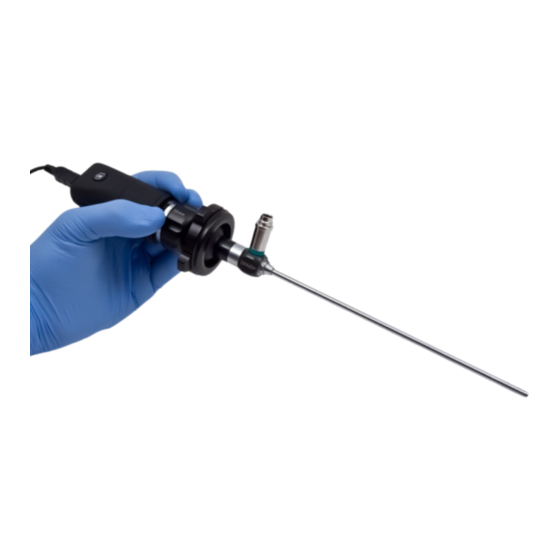

Firefly DE1200 User Manual
Version: 2.1
1
DE1200
VETERINARY ENDO-CAMERA
THANK YOU FOR SELECTING A FIREFLY ENDO-CAMERA
To take full advantage of this product's advanced capabilities, and to properly and
safely use this product, please read the manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Firefly DE1200

Summary of Contents for Firefly DE1200

  • Page 1 Firefly DE1200 User Manual Version: 2.1 DE1200 VETERINARY ENDO-CAMERA THANK YOU FOR SELECTING A FIREFLY ENDO-CAMERA To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
  • Page 2 Firefly DE1200 User Manual Version: 2.1 Copyright 2012 by Firefly Global. All rights are reserved. No one is permitted to reproduce or duplicate, in any form, this manual or any part thereof without permission from Firefly Global (www.Fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.

  • Page 3: Table Of Contents

    Firefly DE1200 User Manual Version: 2.1 Table of Contents Introduction ........................ 4 Warnings & Cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................7 Nomenclature ......................8 Setting up the software application： ..................9 Connect to PC： ........................9 Power the Device On：...

  • Page 4: Introduction

    Saturation, Hue, Brightness, Contrast and Sharpness for desired applications. System Requirements The Firefly endoscope camera System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 2.0 port.

  • Page 5: Warnings & Cautions

    In order to obtain optimum performance and ensure patient safety,  thoroughly read this manual. Do not use the Firefly endoscope camera if you notice any signs of damage  to the components of the system. Contact customer service for immediate assistance.
  • Page 6 Firefly DE1200 User Manual Version: 2.1 This product complies with current required standards for electromagnetic  interference and should not present problems to other equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment.

  • Page 7: Check List

    Firefly DE1200 User Manual Version: 2.1 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Endoscope Camera x 1pc Clip (attached to Endoscope Camera) x 1 pc...

  • Page 8: Nomenclature

    Firefly DE1200 User Manual Version: 2.1 OMENCLATURE...

  • Page 9: Setting Up The Software Application

    Version: 2.1 PERATION Setting up the software application： Prior to using the Firefly endoscope camera for the first time, install the FireflyPro software application following the instructions provided with the installation CD. Connect to PC： Connect the Firefly endoscope camera to the PC’s USB port Power the Device On：...

  • Page 10: Using The Image Capture Control

    Firefly DE1200 User Manual Version: 2.1 Using the Firefly Endoscope Camera: Using the image capture control: Press and release the Capture button to capture image frames. The system will generate a shutter sound from the PC speaker as confirmation.

  • Page 11: Using Focus

    Firefly DE1200 User Manual Version: 2.1 Using Focus: Based on the relative distance of the observed object, the focus wheel can be turned for a clear image. When a higher magnification is required, the focus wheel can be turned to the left (see below). If a larger field of view is required, the endoscope camera can be moved farther away and the wheel turned to the right.

  • Page 12: Launch The Software Application

    Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly endoscope camera. The endoscope camera communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions.
  • Page 13 Firefly DE1200 User Manual Version: 2.1 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control Tool bar: Icon Icon Name...
  • Page 14 Firefly DE1200 User Manual Version: 2.1 Image tool bar: Icon Icon Name Function Description Save Image Store frozen image Image Capture Capture and store instant image from live video Image Browsing Browse images in working directory Working Pop-up to select working directory path...

  • Page 15: Maintenance And Service

    Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly endoscope camera on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse.

  • Page 16: Service Policy

    Version: 2.1 Service Policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.

  • Page 17: Specifications

    Firefly DE1200 User Manual Version: 2.1 PECIFICATIONS Item Specification Weight Approximately 140 g (0.31 lb) Length: 11.8 cm (4.6 inches) Dimensions (approximate) Height: 5.7 cm (2.2 inches) Width: 5.7 cm (2.2 inches) Power USB 5VDC, 150mA Protection against ingress of water IPXØ...

  • Page 18: Limited Warranty

    ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased.
  • Page 19 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
  • Page 20 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.

  • Page 21: Troubleshooting

    Version: 2.1 ROUBLESHOOTING Frequently Asked Questions (FAQs): What do I do if my Firefly endoscope camera and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly endoscope camera and disconnect the USB data cable from the computer. b) Close the FireflyPro software.
  • Page 22 Firefly DE1200 User Manual Version: 2.1 b. Check whether the system is infected by a virus. c. The PC may be too old to properly drive the video stream and does not meet the minimum standards set forth in the instructions. Please use faster system.
