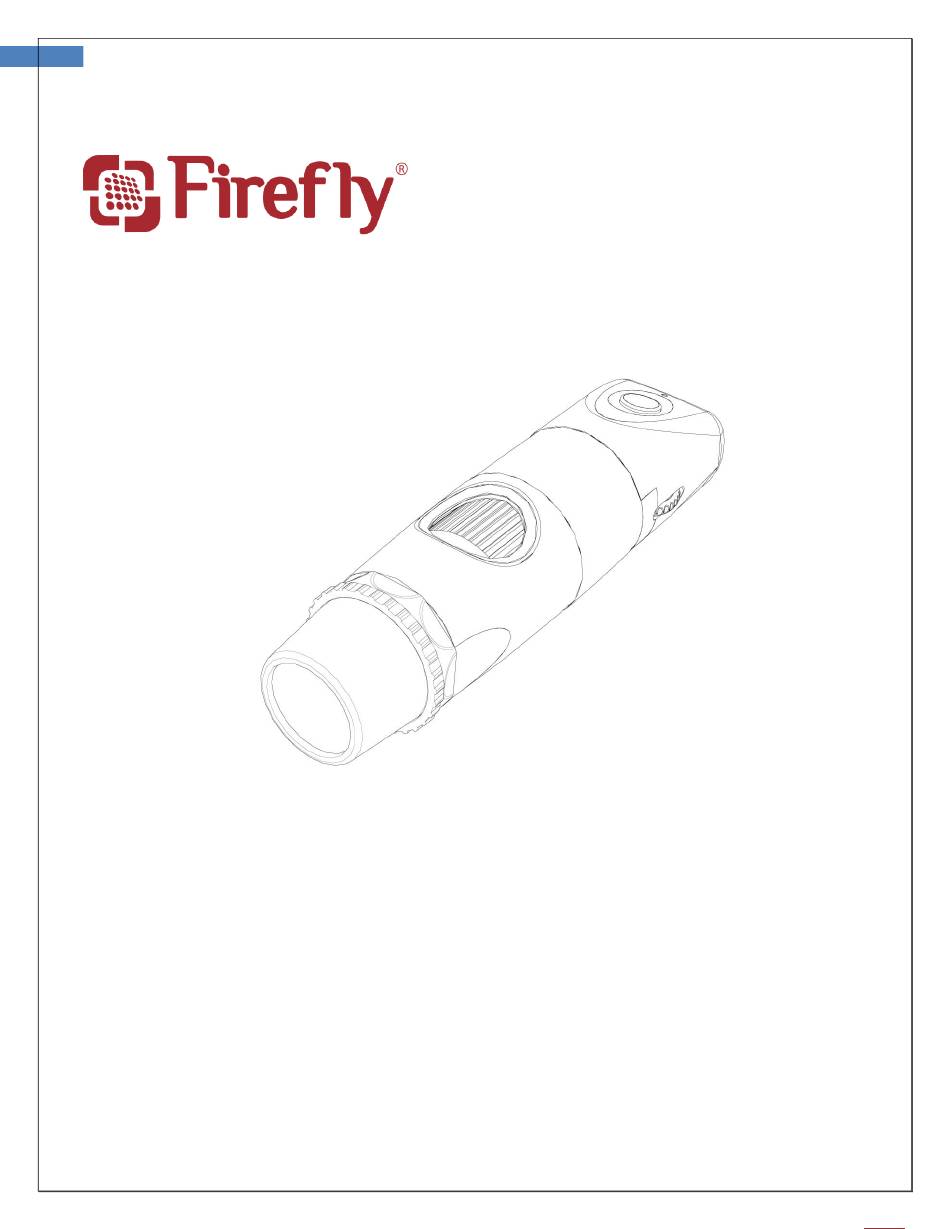

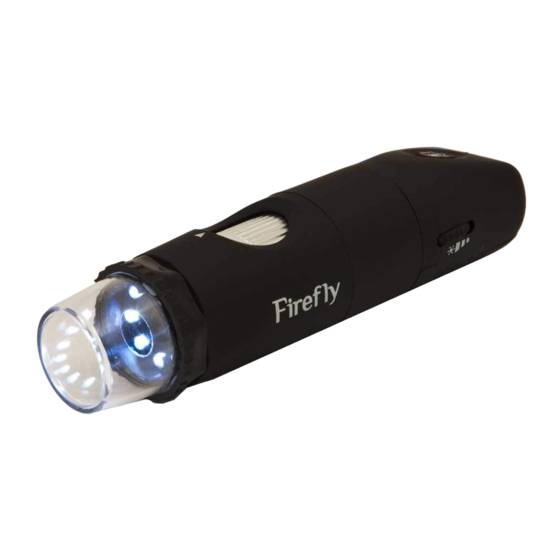

- Page 1 User Manual for Firefly Dermatoscope DE300 Version: 1.1 DE300 User Manual IGITAL ERMATOSCOPE THANKS FOR SELECTING A FIREFLY DERMATOSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
- Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.
-
Page 3: Table Of Contents
User Manual for Firefly Dermatoscope DE300 Version: 1.1 ABLE OF ONTENTS Table of Contents ......................3 Introduction ........................ 4 Warnings & Cautions ....................5 Warning ..........................5 Caution ........................... 5 Check List ........................7 Nomenclature ......................8 Operation ........................9 Setting up the software application：... -
Page 4: Introduction
System Requirements The Firefly Dermatoscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port. -
Page 5: Warnings & Cautions
In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Firefly Dermatoscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance. - Page 6 User Manual for Firefly Dermatoscope DE300 Version: 1.1 verifying that the system complies with the requirements of the system standard IEC 60601-1-1. This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices.
-
Page 7: Check List
User Manual for Firefly Dermatoscope DE300 Version: 1.1 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Dermatoscope Extender Dermatoscope Stand USB Cable Clip Software Application CD... -
Page 8: Nomenclature
User Manual for Firefly Dermatoscope DE300 Version: 1.1 NOMENCLATURE... -
Page 9: Operation
User Manual for Firefly Dermatoscope DE300 Version: 1.1 PERATION To obtain a clear image, please grip the Firefly Dermatoscope; remain still and avoid vibration as much as possible during observation. Setting up the software application： Prior to using the Firefly Dermatoscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD. -
Page 10: Power The Device On
User Manual for Firefly Dermatoscope DE300 Version: 1.1 Power the Device On： Towards the rear of the device, a switch allows the user to power the device ON and to activate the LEDs. OFF: Switch off the device ON: Switch the device ON ... -
Page 11: High Zoom Use
User Manual for Firefly Dermatoscope DE300 Version: 1.1 High zoom use: When there is a need for high zoom, maintaining body stability becomes more paramount. In such instances, it is suggested that the digital dermatoscope focus wheel opening should be placed towards user, and the transparent cover vertically downward. -
Page 12: Brightness Adjustment
User Manual for Firefly Dermatoscope DE300 Version: 1.1 Brightness Adjustment: On left rear side of the dermatoscope, a knob allows the user to control brightness of the LEDs: Backward Turn: Decrease Brightness Forward Turn: Increase Brightness Using Focus: Default Position: Match the scale 50 to arrow mark. -
Page 13: Using The Polarizer
Version: 1.1 Using the Polarizer: The DE300 is equipped with an integrated polarizer feature. To activate polarization, turn the black ring behind the nose extender. Multiple degrees of polarization may be achieved by gradually turning the polarizer ring from 0degrees to 360degrees. -
Page 14: Launch The Software Application
Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Dermatoscope. The Dermatoscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions. -
Page 15: Tool Bars
User Manual for Firefly Dermatoscope DE300 Version: 1.1 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars: Icon... -
Page 16: Device Tool Bars
User Manual for Firefly Dermatoscope DE300 Version: 1.1 Device Tool bars: Icon Icon Name Function Description Device Connect Refresh image device connection Select available image devices, such as Dermatoscope Select a video format (default 640x480 YUY2) -
Page 17: Maintenance And Service
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Dermatoscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse. -
Page 18: Service Policy
Version: 1.1 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel. -
Page 19: Specifications
User Manual for Firefly Dermatoscope DE300 Version: 1.1 SPECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 13.0 cm (5.2 inches) Dimensions (approximate) Height: 3.6 cm (1.5 inches) Width: 4.0 cm (1.6 inches) Power USB 5VDC, 150mA Protection against ingress of water IPXØ... -
Page 20: Limited Warranty
Limited Hardware Warranty (through distributors & resellers) FireFly Global hardware products purchased in the U.S. come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased. - Page 21 How long does this limited hardware warranty last? The limited hardware warranty on all FireFly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced. FireFly Global may change the availability of limited hardware warranties, at its discretion, but any changes will not be retroactive.
-
Page 22: Troubleshooting
Version: 1.1 ROUBLESHOOTING Frequently Asked Questions (FAQs): Q1. What do I do if my Firefly Dermatoscope and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly Dermatoscope and disconnect the USB data cable from the computer. b) Close the FireflyPro software. - Page 23 User Manual for Firefly Dermatoscope DE300 Version: 1.1 b. Check whether the system is infected by a virus. c. The PC may be too old to properly drive the video stream and does not meet the minimum standards set forth in the instructions. Please use faster system.
