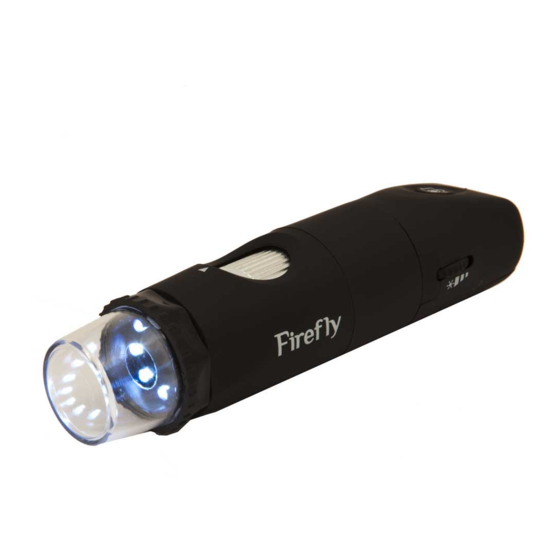

Firefly DE350 User Manual

Wireless dermatoscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

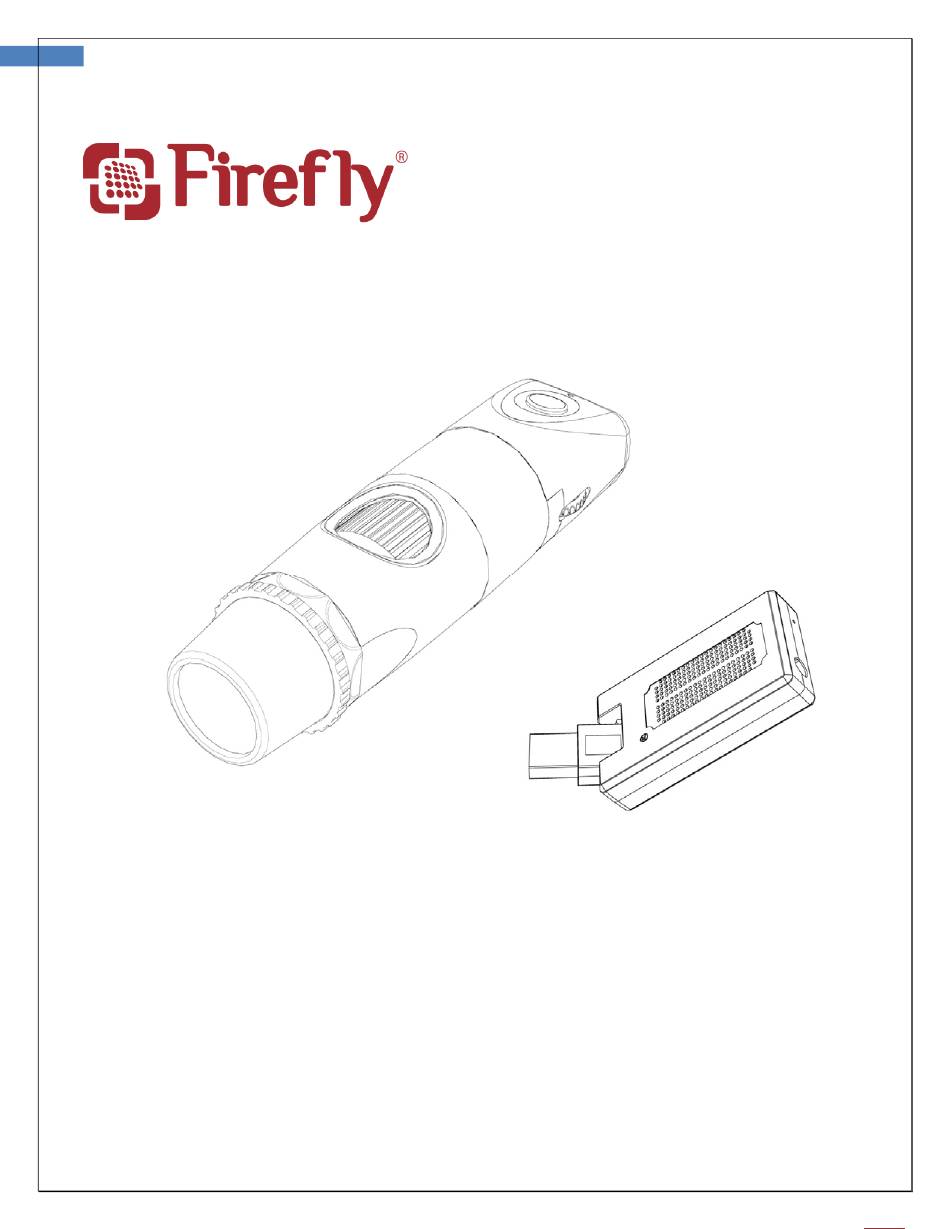

User Manual for Wireless Firefly Dermatoscope DE350
Version: 1.0
DE350
User Manual
W
IRELESS DERMATOSCOPE
THANKS FOR SELECTING A WIRELESS FIREFLY DERMATOSCOPE
To take full advantage of this product's advanced capabilities,
and to properly and safely use this product, please read the manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firefly DE350

Summary of Contents for Firefly DE350

  • Page 1: Digital Dermatoscope

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 DE350 User Manual IRELESS DERMATOSCOPE THANKS FOR SELECTING A WIRELESS FIREFLY DERMATOSCOPE To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
  • Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.

  • Page 3: Table Of Contents

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 ABLE OF ONTENTS Digital Dermatoscope ....................1 Table of Contents.......................3 Introduction ......................5 Warnings & Cautions ....................6 Warning ............................ 6 Caution............................6 Check List ........................8 Nomenclature ......................9 Operation.........................10 Setting up the software application： ..................10 Connect to PC：........................
  • Page 4 User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Recycling the system components ..................... 20 Accessories ..........................20 Service policy........................... 21 Specifications ......................22 Limited Warranty ....................23 Troubleshooting.......................25 Frequently Asked Questions (FAQs): ..................25 Wireless Interference Recommendations ...............27...

  • Page 5: Introduction

    System Requirements Wireless Firefly Dermatoscope System requires a user PC system running Windows XP Service Pack 2 or later operating system, a viewing screen, and a PC with an available USB 1.1 or 2.0 port.

  • Page 6: Warnings & Cautions

    In order to obtain optimum performance and ensure patient safety, thoroughly read this manual. Do not use the Wireless Firefly Dermatoscope if you notice any signs of damage to the components of the system. Contact customer service for immediate assistance.
  • Page 7 User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 are responsible for verifying that the system complies with the requirements of the system standard IEC 60601-1-1. This product complies with current required standards for electromagnetic interference and should not present problems to other equipment or be affected by other devices.

  • Page 8: Check List

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Dermatoscope x 1pc Receiver x 1 pc Extenders and cap...

  • Page 9: Nomenclature

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 NOMENCLATURE...

  • Page 10: Operation

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 PERATION To obtain a clear image, please grip the Firefly Dermatoscope; remain still and avoid vibration as much as possible during observation. Setting up the software application： Prior to using the Firefly Dermatoscope for the first time, install the FireflyPro software application following the instructions provided with the installation CD.
  • Page 11 User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0...

  • Page 12: Charging Battery

    Version: 1.0 Charging Battery: Duration: The Wireless Firefly Dermatoscope has a built-in high efficiency lithium battery that enables more than 3 hours continuous operation. Charging the Battery: Through the mini-USB port at the rear of the dermatoscope, the embedded battery can be charged with the provided USB DC cable.

  • Page 13: Using The Firefly Dermatoscope System

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Using the Firefly Dermatoscope System: Recommended holding position: It is suggested to hold the dermatoscope, transparent cover forward, with the thumb held on the equipment. This holding position offers relative stability and allows lens control. The index finger is...

  • Page 14: High Zoom Use

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 High zoom use: When there is a need for high zoom, maintaining body stability becomes more paramount. In such instances, it is suggested that the digital dermatoscope focus wheel opening should be placed towards user, and the transparent cover vertically downward.

  • Page 15: Brightness Adjustment

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Brightness Adjustment: On left rear side of the dermatoscope, a knob allows the user to control the brightness of the LEDs: Backward Turn: Decrease Brightness Forward Turn: Increase Brightness Using Focus: Default Position: Match the scale 50 to arrow mark.

  • Page 16: Using The Polarizer

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Using the Polarizer: The DE300 is equipped with an integrated polarizer feature. To activate polarization, turn the black ring behind the nose extender. Multiple degrees of polarization may be achieved by gradually turning the polarizer ring from 0degrees to 360degrees.

  • Page 17: Launch The Software Application

    Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly Dermatoscope. The Dermatoscope communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions.

  • Page 18: Tool Bars

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control tool bars:...

  • Page 19: Device Tool Bars

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Device Tool bars: Icon Icon Name Function Description Device Connect Refresh image device connection Select available image devices, such as Dermatoscope Select a video format (default 640x480 YUY2)

  • Page 20: Maintenance And Service

    Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Use a dry cloth to clean the Digital Firefly Dermatoscope System on a weekly basis. Recycling the system components Within the EU Do not dispose of this product as unsorted municipal refuse.

  • Page 21: Service Policy

    Version: 1.0 Service policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.

  • Page 22: Specifications

    User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 SPECIFICATIONS Item Specification Weight Approximately 100 g (0.22 lb) Length: 11.4 cm (4.5 inches) Dimensions (approximate) Height: 3.7. cm (1.5 inches) Width: 3.7 cm (1.5 inches) Ratio USB 5 VDC, 150mA Protection against ingress of IPXØ...

  • Page 23: Limited Warranty

    Limited Hardware Warranty (through distributors & resellers) FireFly Global hardware products purchased in the U.S. come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased.
  • Page 24 How long does this limited hardware warranty last? The limited hardware warranty on all FireFly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced. FireFly Global may change the availability of limited hardware warranties, at its discretion, but any changes will not be retroactive.

  • Page 25: Troubleshooting

    Version: 1.0 ROUBLESHOOTING Frequently Asked Questions (FAQs): Q1. What do I do if my Firefly Dermatoscope and FireflyPro software suddenly stops working? Answer: a) Shutdown the Firefly Dermatoscope and disconnect the USB data cable from the computer. b) Close the FireflyPro software.
  • Page 26 User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 b. Check whether the system is infected by a virus. c. The PC may be too old to properly drive the video stream and does not meet the minimum standards set forth in the instructions. Please use faster system.

  • Page 27: Wireless Interference Recommendations

    Interference immunity from wireless networks The wireless Firefly Dermatoscope allows you to operate at 4 separate channels. The 802.11 WiFi wireless networks use direct sequence spread spectrum (DSSS) which transmit within a fixed portion of the spectrum. It is possible to change the channels of 802.11 WiFi networks on a wireless router by entering the administration mode but this may be cumbersome.
  • Page 28 User Manual for Wireless Firefly Dermatoscope DE350 Version: 1.0 Change the relative location of the Access Point Maximize the distance between the wireless Dermatoscope and WiFi devices. Fine tune the position of the compact receiver Try different angles on the compact receiver. A flat horizontal orientation or vertical orientation may produce better results.
